Panel Laminating Machine/Woodworking Machinery

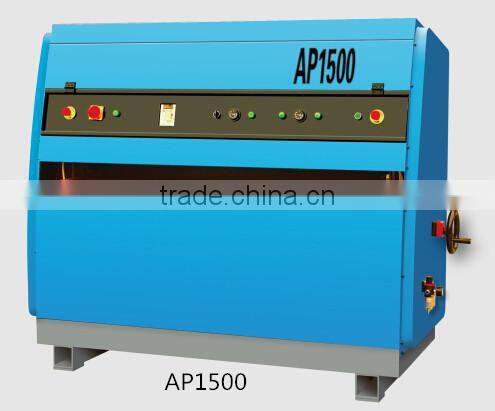

Model: AP1500
Panel Laminating Machine/Woodworking Machinery
Specifications
1.simple and easy to operate
2.High efficiency
3.Steel body, stainless steel lamp
Item | AP1500 |
Max.board width | 1360mm |
Max.board thickness | 90mm |
Feeding speed | 2-6.5m/min |
Laminate thickness | 0.3-1.0mm |
Electric motor roller driving gear power
| 0.75kw |
Total power | 3.5kw |
Inner heating element 4pcs | 600w, Steel lamps |
Max.-Min.heating temperature of inner heating element | 0 to 160℃ |
Roller temperature | 50℃ |
Upper roller heating power | 1000w |
Max.-Min.upper heating roller | 0 to 50℃ |
Overall dimension | 4810*2060*1700mm |
Weight | 735Kg |
Air pressure | 6bar |
PS:We can produce this type machines according to any of customer's requirements.
This panel laminating machine specialize in use PVC covering even board, such as the MDF board, plyboard, wooden sheet, wood plastic sheet and panel furniture etc.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
