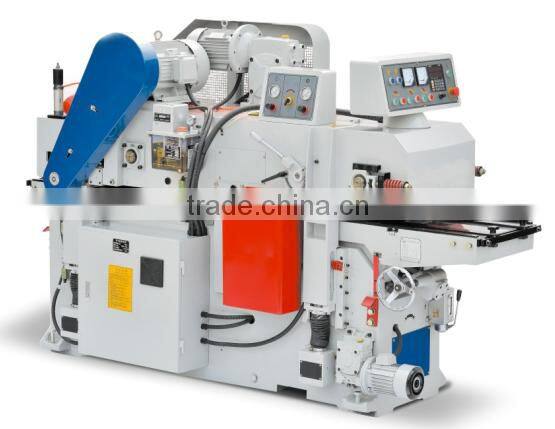

Double Side Moulder For wood
Model: MB204DX
Model | MB204DX | MB206DX |
Working width | 430mm | 630mm |
Working thickness | 150mm | 150mm |
Min working length | 120mm | 120mm |
Max cutting depth(upper spindle) | 8mm | 8mm |
Max cutting depth(bottom spindle) | 5mm | 5mm |
Tool cutting circle diameter | 101mm | 101mm |
Spindle speed | 5000r/min | 5000r/min |
Feed speed | 0-16m/min | 0-16m/min |
Upper&bottom spindle motor | 7.5/7.5kw | 11/7.5kw |
Feed motor | 2.2kw | 3kw |
Machine weight | 2200kg | 2480kg |
Main characteristics in product:

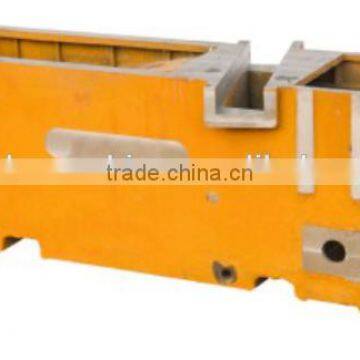

1.With good shock absorption,stability of iron casting lathe and CNC machining center that can process all materials once,it can provide a good basis for knife spindle and feeding.
2.The main spindle is processed specially and the other imported spindles with high precision can well support the whole machine.
3.With elastic pedrail scratcher (optional in lift functions),the pressed distance of the elastic scratchers can be chose according to the thickness and bending degree of the wood so as to increase the machining accuracy and strengthen the feeding powerful.

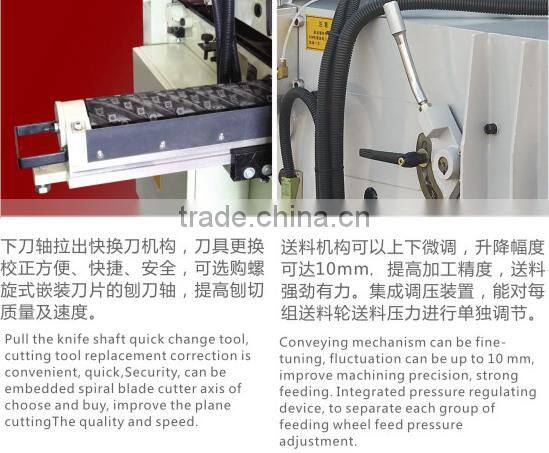

4.The knife spindle,pressing roller and stable feeder on the lathe with manual and automatic adjustable structure make sure the orientation more rapidly and accurately

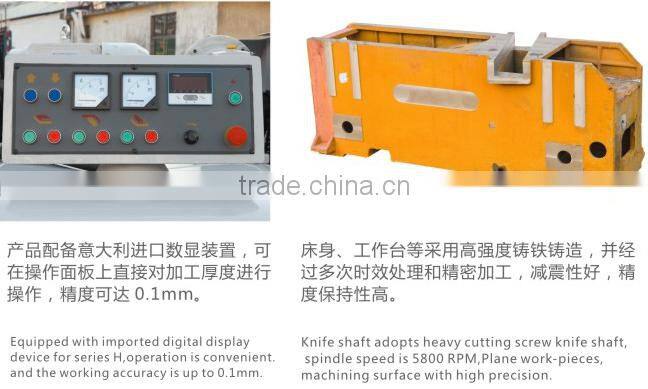

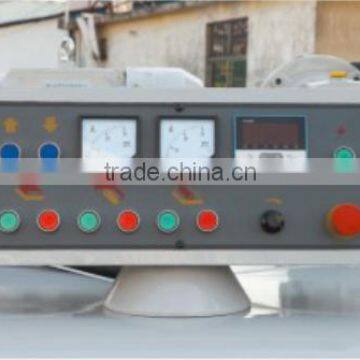

5.Imported electrical components keep the sensitive machine works fast and security,h-shaped series of products are equipped with digital display devices,the processing thickness can be controlled directly on operation pane.
6.After special handling,the worktable is durable and smooth.
7.The precision can be up to 0.01mm.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
