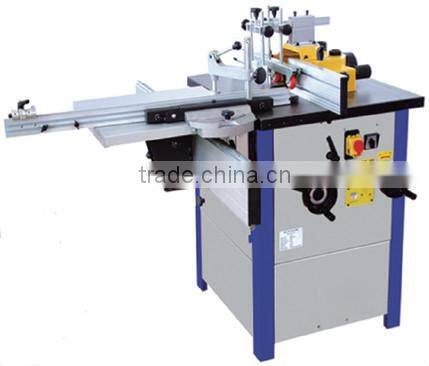

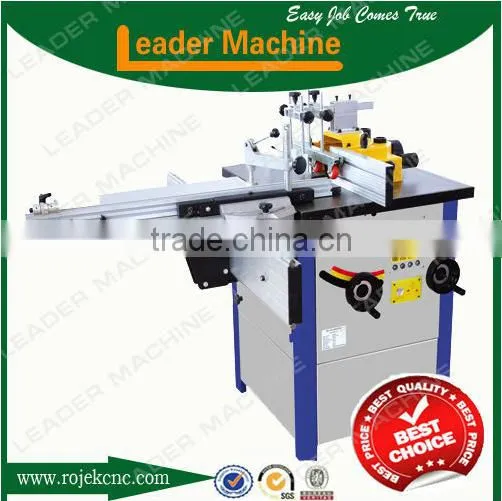

Wood shaper spindle moulder
Model:SF5110T
Model | SF5110T |
Spindle diameter | 30mm |
Spindle travel | 100mm |
Spindle tilt | -10°+30° |
Spindle RPM(Four speed) | 9000/6000/3000/1800rpm |
Main table size | 710×640mm |
Table height | 900mm |
Motor power | 2800w |
Sliding table size | 500×480mm |
Sliding table travel | 850mm |
| G.W./N.W. | Dimensions |
Main wooden case | 188/170kg | 760×690×700mm |
Carton Ⅰ | 20/18.5kg | 1220×308×110mm |
Carton Ⅱ | 14/13kg | 525×505×325mm |
Quantity per 20’ | 60 sets(72 sets without sliding table) | |

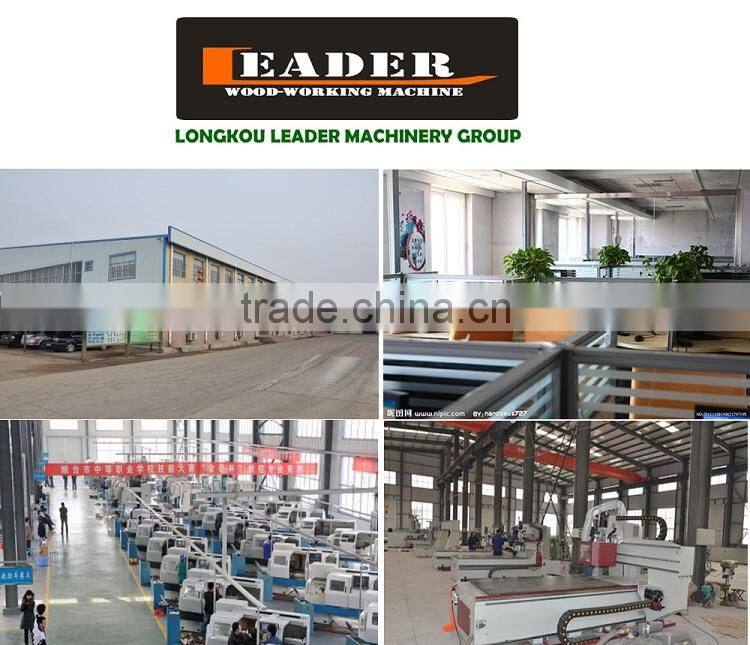

We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
