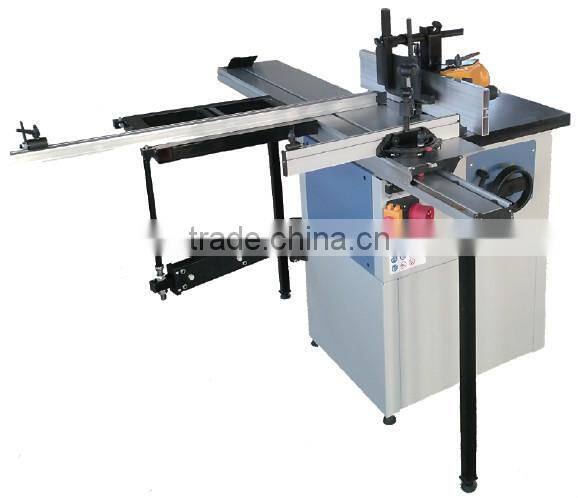

Alibaba China woodworking spindle moulder
Model:SF30-4
Model | SF30-2 | SF30-3 | SF30-4 |
Spindle diameter | 30mm | 30mm | 30mm |
Spindle speed | 4000/6000/8000rpm | 1400/4000/6000/9000rpm | 1400/4000/6000/9000rpm |
Spindle travel | 110mm | 110mm | 110mm |
Table opening | 165mm | 165mm | 165mm |
Max.blade below table | 160mm | 160mm | 160mm |
Max.blade above table | 180mm | 180mm | 180mm |
Sliding beam length | 1000mm | 1000mm | 1000mm |
Table size | 600×400mm | 600×400mm | 600×400mm |
Dust extraction outlet | 100mm | 100mm | 100mm |
Motor power output | 1.5kw | 1.5kw | 1.5kw |
Net/Gross weight | 96/109kg | 95/114kg | 118/140kg |
Package size | 740×630×530mm 500×440×120mm 490×210×240mm | 650×630×530mm 550×440×120mm 490×210×240mm 1060×290×70mm | 750×670×950mm 1400×270×170mm |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
