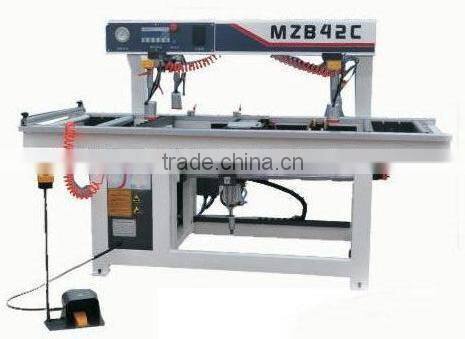

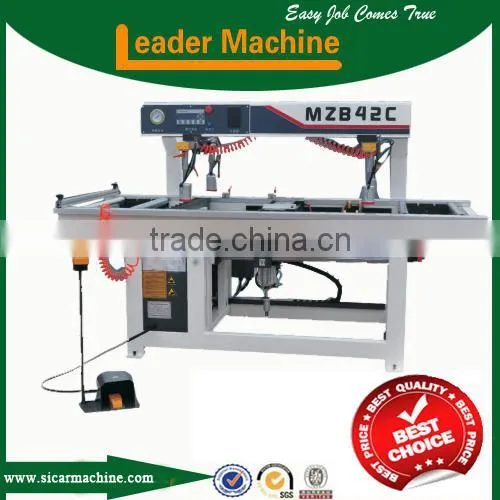

Multi Spindle Wood Drilling Machine
Model:MZB42C
| Max. diameter of holes | 35mm |
| depth of drilled holes | 0-70mm |
| the number of spindles | 42 |
| air pressure | 0.5-0.8Mpa |
| centerdistance between spindles | 32mm |
| overall size | 2400*1100*1500mm |
| rotation of spindle | 2840r/min |
| total motor power | 3kw |
| suitable voltage | 380v |
| net weight | 680kg |
| hight of working platrom off ground | 900mm |
| packing size | 2500*1150*1600mm |
Functional Characteristics
1.Suitable for all kinds of density boards, particleboard, based panels, PVC panels, organic glass plates and solid wood boards such as the drill.
2.The Taiwan Pudeng drill row, import OMRON switch, the original Taiwan AirTAC solenoid valve, PLC microcomputer control system with high performance text controller LS of South Korea, South Korea KACON foot switch , make the equipment failuer rate is low, the operation simple, convenient. The whole frame, single motor 21 axis drill row, vertical row with 750mm large stroke, to meet the needs of customers the most boring.
3.The use of sub-structure, dual-motor dual-row 11-axis drilling, drilling of each row can be 0-90 degrees rotation, greatly improve work efficiency.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
