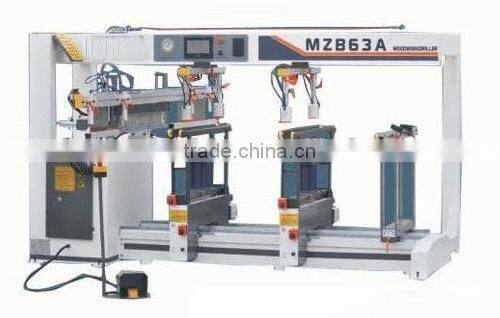

Help CenterMZB63A Three Row Wood Drilling Machine
Related Products
-
MZB63AS CE Certification Wood Multi Drilling MachineNegotiableMOQ: 1 Unit -
MZB63AL Wood Multi Boring Drilling MachineNegotiableMOQ: 1 Unit
-
MZB84AZF CE Certification Woodworking Multi Boring Drill MachineNegotiableMOQ: 1 Unit
-
MZB86BZF CE Four Row Wood Drilling MachineNegotiableMOQ: 1 Unit
-
MZB126AF Furniture Wood Multi Drill MachineNegotiableMOQ: 1 Unit
Multi Spindle Wood Drilling Machine

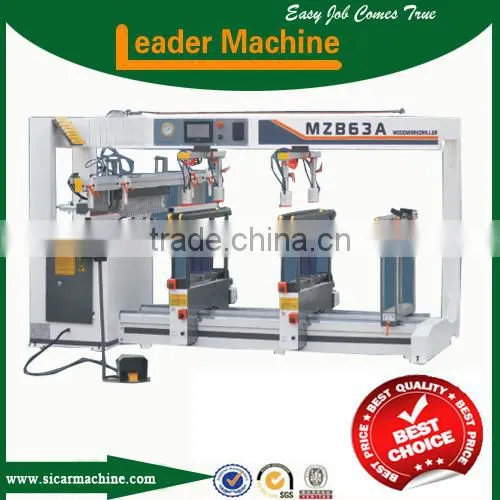

Model:MZB63A
| Max. diameter of holes | 35mm |
| depth of drilled holes | 0-70mm |
| the number of spindles | 63 |
| air pressure | 0.5-0.8Mpa |
| centerdistance between spindles | 32mm |
| overall size | 2800*2600*1650mm |
| rotation of spindle | 2840r/min |
| total motor power | 4.5kw |
| suitable voltage | 380v |
| net weight | 1260kg |
| hight of working platrom off ground | 800mm |
| packing size | 2900*1350*1800mm |
Functional Characteristics
1.Suitable for all kinds of density boards, particleboard, based panels, PVC panels, organic glass plates and solid wood boards such as the drill.
2. Full-body cast iron structure of the base, Vertical tank, horizontal seat, left and right panels, motors and other key parts of the base is also used in all cast iron.
3.The guide rail and the slider of high precision TBI Taiwan, Taiwan Pudeng drill row, Omron switch, South Korea LS brand PLC microcomputer controller with 7 inch 60000 color TFT color touch screen control system, South Korea KACON foot switch, the original AIRTAC electromagnetic valve, make the equipment more stable ,more simple operation.
4.All models can be equipped with electronic digital devices in Italy.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
