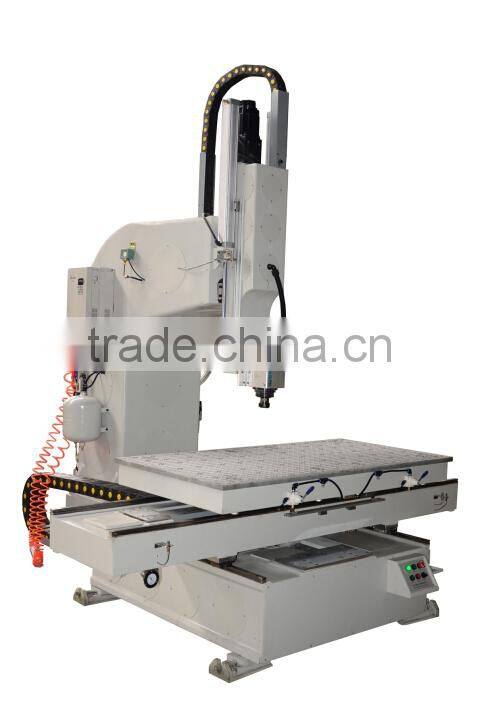

Wood CNC Router
Model: CNC1809A
Parameter
| Model | CNC1809A |
| Table Size | 1800*900mm |
| X-Axis Stroke | 1800mm |
| Y-Axis Stroke | 900mm |
| Z-Axis Stroke | 650mm |
| Max. Speed | 40m/min |
| Spindle | Italy HSD-13.5kw Air-cooling 7000-18000rpm ER40 |
| Vacuum Pump | 4kw,160m³/h |
| CNC System | Syntec |
It adpot welded frame.Moving table by left-right,front-back.X,Y,Z adpot ball screw which is more stable,high-accuracy,high speed.
Optional spindle:
9kw-12kw,ISO30 Rotary tool-changer.
ER32 6KW High Speed Spindle;
ER40 13.5KW High Speed Spindle.
10” Circular saw.Boring Head,5-Axis Head.etc
Vacuum table or Aluminium T-type table can be used for Fumiture industry,Door industry, Cabinet industry,Moulder industry.
Parts
1.Spindle Inverter
2.Ballscrew. Linear Guide,Boring Head
Application
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
