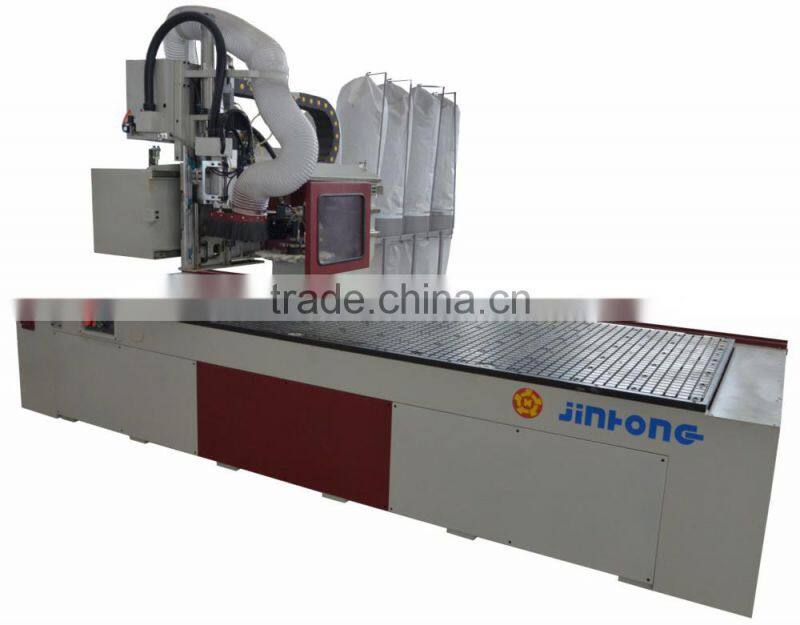

Wood CNC Router
Model: CNC2412BG
Parameter
Model | CNC2412BG |
Table Size | 2440*1220mm |
X-Axis Stroke | 2440mm |
Y-Axis Stroke | 1220mm |
Z-Axis Stroke | 170mm |
Max. Speed | 60m/min |
Spindle | No.1:Italy HSD-9kw,0-24000rpm |
No.2:Automatic tool changer with 10 positions | |
No.3:Italy MC-boring Head(6,8,11,14) | |
No.4:Saw Blade 250mm | |
Vacuum Pump | 4kw,160m³/h |
CNC System | Syntec |
Structure
It adpot welded frame.Moving gantry
.X,Y adpot Germany rack pinion and reducer which is more stable,high-accuracy,high speed.

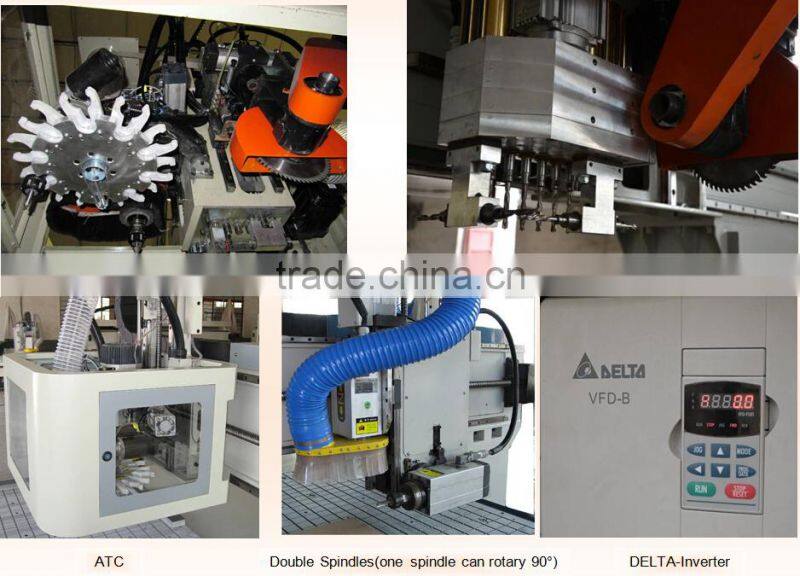

Optional spindle:
9kw-12kw,ISO30 Rotary tool-changer.
ER32 6KW High Speed Spindle;.
10” Circular saw.Boring Head
Vacuum table or Aluminium T-type table can be used for Fumiture industry, Door industry, Cabinet industry, Moulder industry.
Parts
1.Spindle Inverter
2.Ballscrew, Linear Guide, Rack Pinion, Reducer, Boring Head

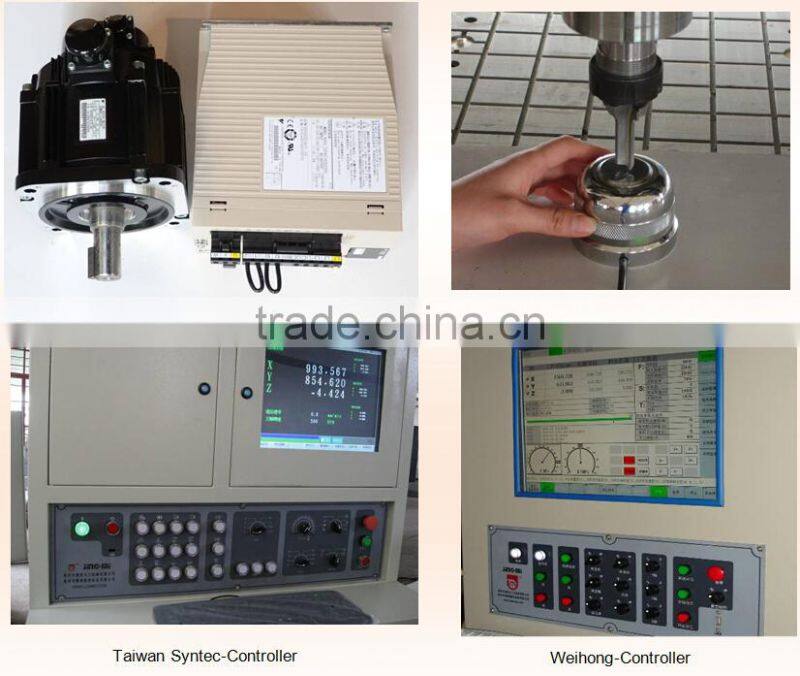

3.Servo driver, Controller, Tool Sensor
Application

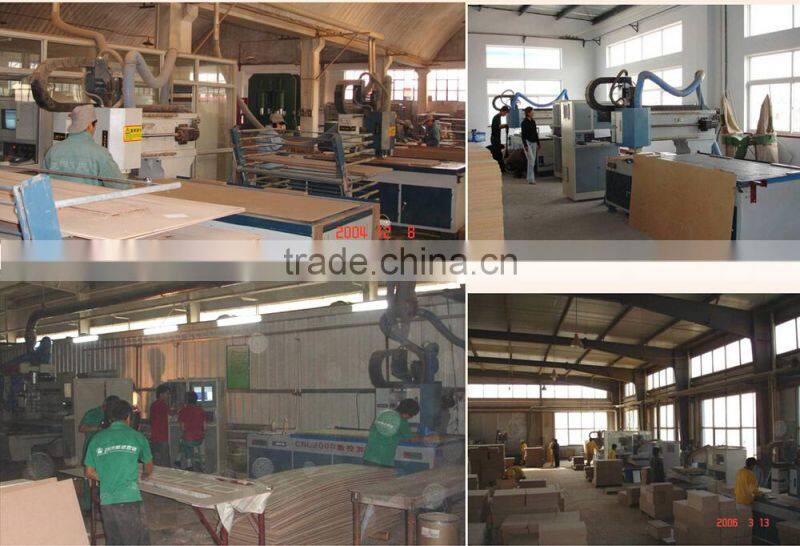

We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
