Edge Banding
Model:MFK4023A
| working travel | X axis | 5250mm |
| Y axis | 2100mm | |
| working countertop | 6 groups of vacuum cups | 1600*4000mm |
| processing thickness | 12-60mm | |
| Max. travelling speed | X axis | 30m/min |
| Y axis | 30m/min | |
| milling spindle | spindle speed | 18000rpm |
| power | 7.5kw | |
| specification of clamping head | 6-20mm | |
| trimming | motor power | 1.8kw |
| motor speed | 12000rpm | |
| edging | edge width | 15-62mm |
| Min. outer radius | 30mm | |
| Min. inner radius | 40mm | |
| heating pipe power | 1.2kw | |
| air pressure | 5-7kg/cm2 | |
| vacuum pump | power | 3kw |
| air suction volume | 80m³/h | |
| total power | 25kw | |
| overall dimensions(L*M*H) | 7500*4000*2900mm | |
1.The machine uses stable performance industrial computer as control center, Windows operating system, humanized design software and graphic auxiliary function to guide programming,easy operating.
2.The machine is designed with two working stations. During the processing in one working station, could do feeding or unloading in another working station, increasing the working effciency.
3.The machine hold work-piece by vacuum suction, various working procedures can be accomplished in one clamping.
4.The machine body and beam are heavy-duty steel structure, through strict heating processing and accuracy processing, make the machine working more stable.
5.100% electrical components are supplied by SIEMENS, SCHNEIDER, OMRON, DELTA and LG brand.
6.100% air-operated components are supplied by AIRTAC,SMC.

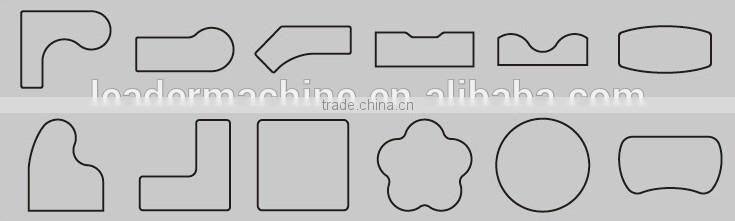

7.The machine has three functions:milling,edging and trimming. Every function could work independently or combined. It could process irregular work-piece such as"L"shape, circle shape and boat shape.
8.Milling function uses 7.5kw high-frequency motor,Max, speed is 18000rpm, high milling speed.
9.Edging function has auxliary pressing device and automatic detection device, ensure the edging accuracy.
10.Edging function uses 1.8kw high-frequency motor, Max,speed is 12000rpm, ensure the edging quality.
11.The machine could install light-harrier protection device to ensure the people's safety.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
