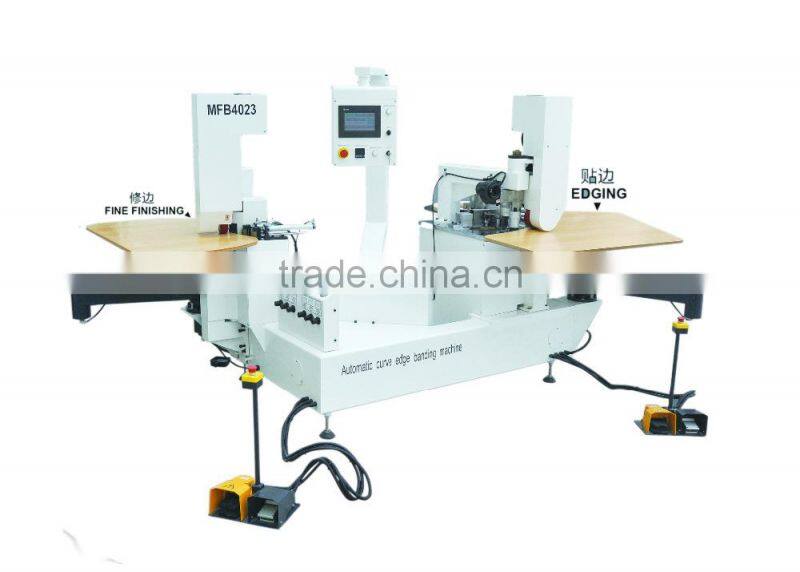

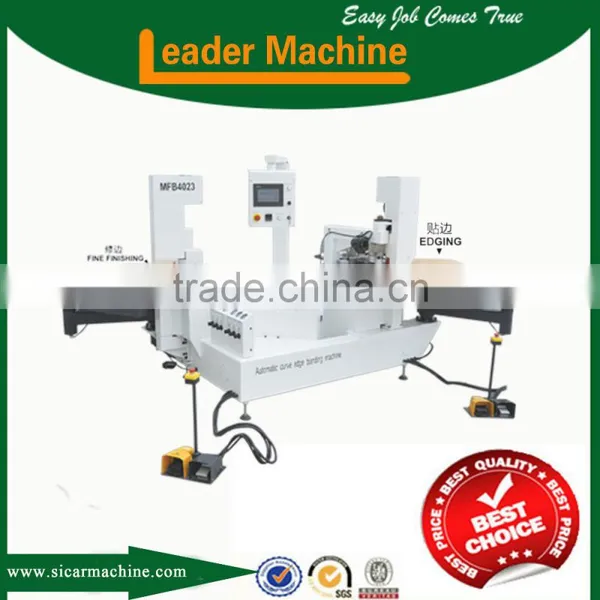

Edgebanding Machine
Model:MFB4023
| edge width | 15-50mm |
| edge thickness | 0.8-3mm |
| Min. working radius | 60mm |
| feeding speed | 7m/min |
| heating power | 1.86kw |
| required pressure | 5-7kg/cm2 |
| motor power | 1.7kw |
| total power consumption | 3.56kw |
| net weight | 900kg |
| overall dimensions(L*M*H) | 2050*1500*1800mm |
Main Features
1.Patented product
2.End the history of curve trimming manual operation,Greatly enhance the quality and the production, save the labor costs,
3.The body welded with steel and with special heat treatment process. No easy deformation.
4.100%TAIWAN AIRTAC air-operated to ensure the accuracy.
5.100% electrical components are supplied by SIEMENS, SCHNEIDER, OMRON, DELTA and LG brand.
6.PLC control system with touch screen, easy to operate.
7.Programming is easy to learn. Program designed to meet the standard of GB/T 15969.8-2007.
8.High-precision rotary arm, with vacuum adsorption system. Reduce labor costs and intensity. Enhanced stability.
9.All the parts are made with fine processing of high-precision CNC Center, and this ensures the stable and high efficiency operation
10.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Range Of Applications

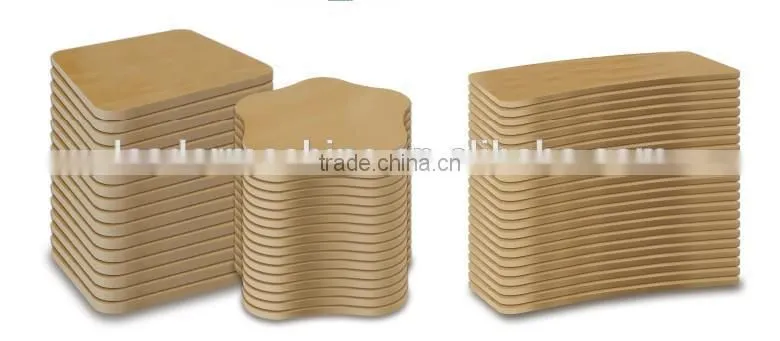

Automatic edgging and trimming of sets of furniture, wardrobe, cupboard, office furniture and profiled workpiece.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
