Asian Price European Quanlity 5 - Function Combination Woodworking Machines

Asian Price European Quanlity 5 - Function Combination Woodworking Machines thumbnail-1
Asian Price European Quanlity 5 - Function Combination Woodworking Machines photo-1
US$ 1 - 1 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Contact Supplier Request Quote Chat Now
Longkou Leader Imp& Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name LEADER
Model Number C300
Voltage 380
Power(W) 3.0 - 2.2
Weight 560KG
Dimension(L*W*H) 2200*1590*875mm
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

Company profile


We are particularly specific in woodworking machinery ,we have been more than 15 years for exporing experience .Our products has been exported to many countries abroad.All customers are very satisfied with us .You are welcome to come to visit our company anytime ,We hope to set up to relationships with you to our mutrul advantage for a long time.

 product Ifo



combination woodworking machines

Model:C300

Five  fuctions in one: suface planer + thicknesser + morister+curcular saw + spindle moulder

From Italy original designed manufacture

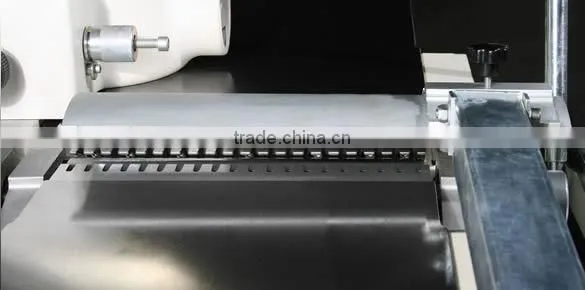

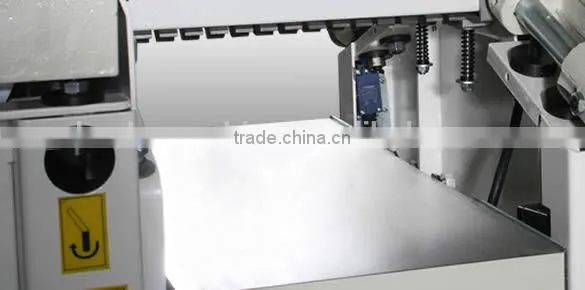

 Asian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machinesAsian Price European Quanlity 5 - function combination woodworking machines



Exhibition photo



Asian Price European Quanlity 5 - function combination woodworking machines



product parameter



combination woodworking machines

 Features:

Panel saw sliding beam

Scoring for veneered boards

Accurate cross cut fence with flipstops

Cast iron construction

Sturdy swinging arm squaring frame

Inward parallel swing planer table

Micro adjust spindle moulder fence

3 class 1 motors

Fully adjustable settings









Planer Unit C300
Working tables mm 300x1500
Cutterblock diameter mm 70
Cutterblock rotation speed r.p.m  5700
N. of knifes n° 3
Knifes dimensions mm  300x20x3
Max table adjustement mm 4

Thicknesser Unit C300
Working table mm 300x660
Feed speed m/1'  7
Max. working height mm 220
Min. working height mm 4
Cutterblock rotation speed r.p.m. 5700
Max. cutting depth mm 4

Circular saw Unit C300
Working table mm 220x1000
Shaft rotation speed r.p.m.  4500
Blade diameter mm 250
Blade bora diameter mm 30
Cutting height 90° mm 80
Max. distance between blade and fence mm 500
Blade inclination 0° 45°
Max cutting height  45° mm 50
Shaft rotation speed engraver r.p.m.  7000
Engraver blade diameter mm 90
Engraver blade bora diameter mm 22

Mortiser  Unit C300
Working table mm 250x500
Longitudinal stroke mm 205
Trasversal stroke mm 95
Vertical stroke mm 90
Churck  mm 16
Churck rotation speed r.p.m.  5700

Shaper  Unit C300
Working tables mm 220x1000
Shaft rotation speeds r.p.m.   2000/3100/4400/7000
Standard shaft diameter mm 30
Spindle lenght mm 105
Shaft vertical stroke mm 115
Max. tool diameter mm 160
Max. tenoning depth mm 55

Tenoning carriage Unit C300
Carriage dimensions mm 1250x315
Carriage stroke mm 1250/1600

Standard accessories Unit C300
N°2 clamp lever   *
Sharper fence   *
Service wrenches   *
Mortiser chuck   *
Table extensions with swinging arms mm 860x600
Guards on mortiseur chuck   *
3 pcs. planing knives   *
Planer guide
Saw guide
Bridge sefety hood on planer   *
3-phase motor power HP - KW 3,0 - 2,2
Weight  kg 485

Optiona accessories Unit C300
Single-phase motor HP - KW 3,0 - 2,2
Increasing 3-phase motor HP - KW 4,0 - 3,0
Extraction unit HP - KW 0,5 - 0,36
Set of wheels with feeding steering bar   *
Contouring fence
Regulating to copy
Wescott(Diameter) mm 16
Carriage stroke mm 1600/1600
Carriage stroke mm 1800/1800
Carriage stroke mm 2200x2200
Tenoning with protection shelf









Services:



 Once there is something wrong with machinery ,we are guaranteed to come to see whtin 24  hours in time in Eropean Country
