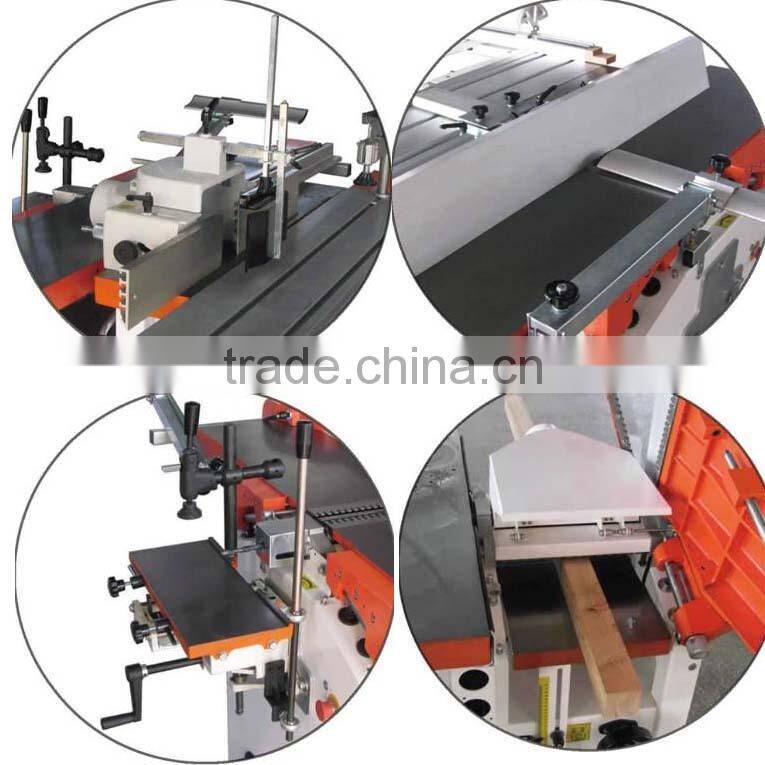

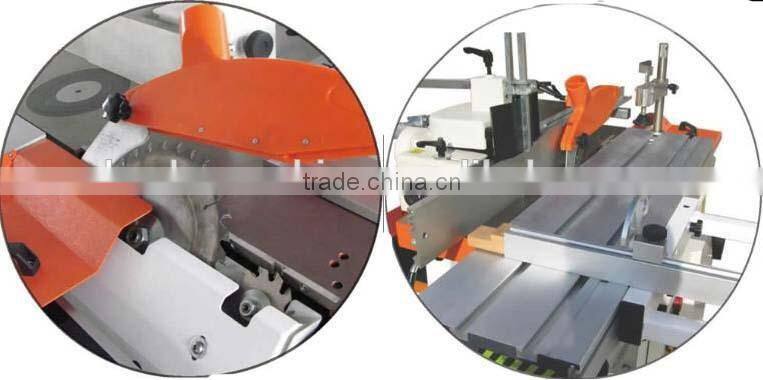

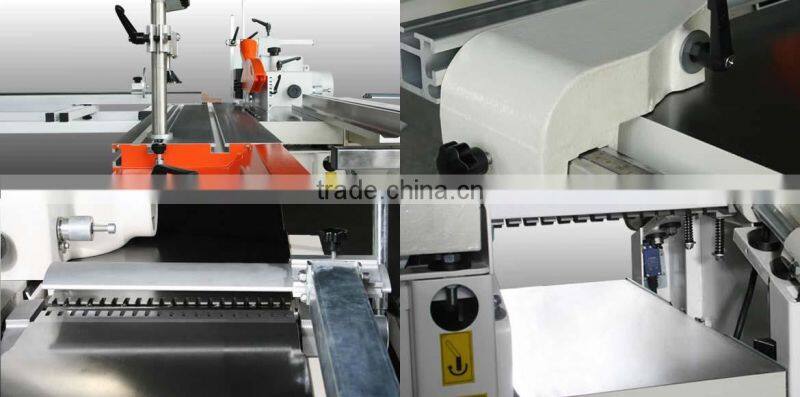

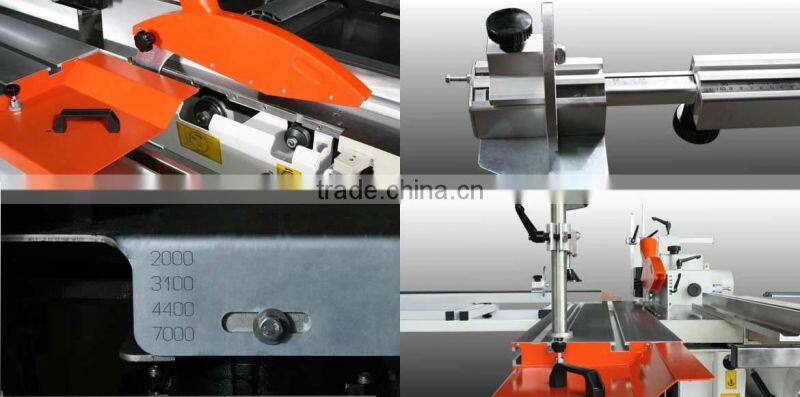

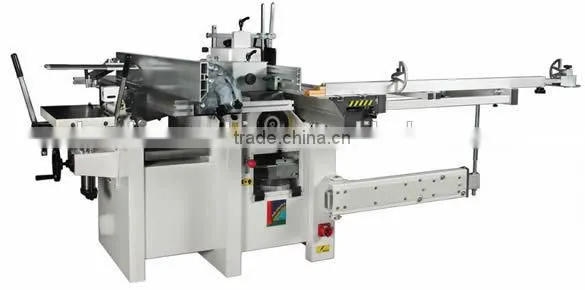

Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Italy Technical Combination Woodworking Machine JMC300-7
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
UM-C300
Voltage
380
Power(W)
6600
Dimension(L*W*H)
1600*1200*1100
Weight
485kg
Certification
CE
Warranty
2 years
After-sales Service Provided
Overseas service center available
| Planer | Unit | C300 |
| Working tables | mm | 300x1500 |
| Cutterblock diameter | mm | 70 |
| Cutterblock rotation speed | r.p.m | 5700 |
| N. of knifes. | n° | 3 |
| Knifes dimensions | mm | 300x20x3 |
| Max table adjustement | mm | 4 |
| Thicknesser | Unit | C300 |
| Working table | mm | 300x660 |
| Feed speed | m/1' | 7 |
| Max. working height | mm | 220 |
| Min. working height | mm | 4 |
| Cutterblock rotation speed | r.p.m. | 5700 |
| Max. cutting depth | mm | 4 |
| Circular saw | Unit | C300 |
| Working table | mm | 220x1000 |
| Shaft rotation speed | r.p.m. | 4500 |
| Blade diameter | mm | 250 |
| Blade bora diameter | mm | 30 |
| Cutting height 90° | mm | 80 |
| Max. distance between blade and fence | mm | 500 |
| Blade inclination | 0° | 45° |
| Max cutting height 45° | mm | 50 |
| Shaft rotation speed engraver | r.p.m. | 7000 |
| Engraver blade diameter | mm | 90 |
| Engraver blade bora diameter | mm | 22 |
| Mortiser | Unit | C300 |
| Working table | mm | 250x500 |
| Longitudinal stroke | mm | 205 |
| Trasversal stroke | mm | 95 |
| Vertical stroke | mm | 90 |
| Churck | mm | 16 |
| Churck rotation speed | r.p.m. | 5700 |
| Shaper | Unit | C300 |
| Working tables | mm | 220x1000 |
| Shaft rotation speeds | r.p.m. | 2000/3100/4400/7000 |
| Standard shaft diameter | mm | 30 |
| Spindle lenght | mm | 105 |
| Shaft vertical stroke | mm | 115 |
| Max. tool diameter | mm | 160 |
| Max. tenoning depth | mm | 55 |
| Tenoning carriage | Unit | C300 |
| Carriage dimensions | mm | 1250x315 |
| Carriage stroke | mm | 1250/1600 |
| Standard accessories | Unit | C300 |
| N°2 clamp lever | * | |
| Sharper fence | * | |
| Service wrenches | * | |
| Mortiser chuck | * | |
| Table extensions with swinging arms | mm | 860x600 |
| Guards on mortiseur chuck | * | |
| 3 pcs. planing knives | * | |
| Planer guide | ||
| Saw guide | ||
| Bridge sefety hood on planer | * | |
| 3-phase motor power | HP - KW | 3,0 - 2,2 |
| Weight | kg | 485 |
| Optiona accessories | Unit | C300 |
| Single-phase motor | HP - KW | 3,0 - 2,2 |
| Increasing 3-phase motor | HP - KW | 4,0 - 3,0 |
| Extraction unit | HP - KW | 0,5 - 0,36 |
| Set of wheels with feeding steering bar | * | |
| Contouring fence | ||
| Regulating to copy | ||
| Wescott(Diameter) | mm | 16 |
| Carriage stroke | mm | 1600/1600 |
| Carriage stroke | mm | 1800/1800 |
| Carriage stroke | mm | 2200x2200 |
| Tenoning with protection shelf |
