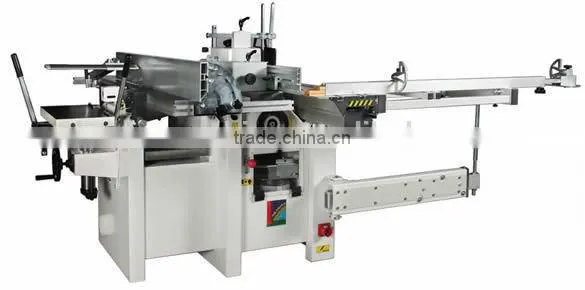

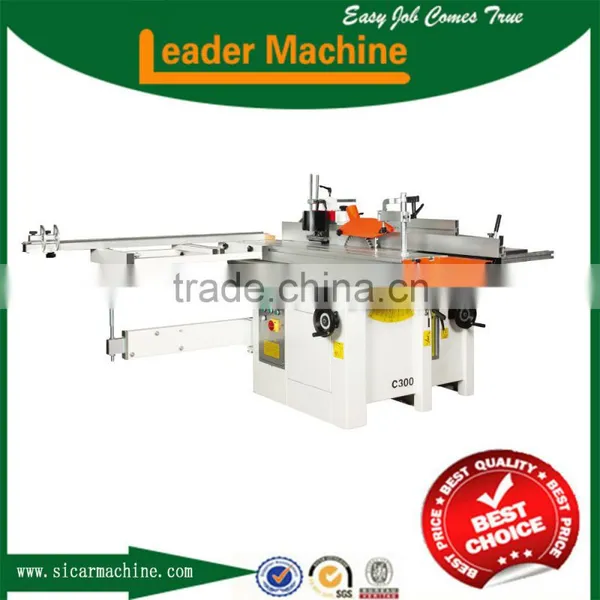

C300 CE Certification 5 Functions Combination Woodworking Machines for Sale

Planer

C300

Working table

300*1500mm

Cutterblock diameter

70mm

Cutterblock rotation speed

5700rpm

No. Of knives

3

Knife dimensions

300*20*3mm

Max table adjustment

4mm

Thicknesser

C300

Working table

300*660mm

Feed speed

7m/s

Max working height

220mm

Min working height

4mm

Cutterblock rotation speed

5700rpm

Max cutting depth

4mm

Circular saw

C300

Working table

220*1000mm

Shaft rotation speed

4500rpm

Blade diameter

250mm

Blade bore diameter

30mm

Cutting height 90°

80mm

Max. distance between blade and fence

500mm

Blade inclination

45°

Max. cutting height 45°

50mm

Shaft rotation speed engraver

7000rpm

Engraver blade diameter

90mm

Engraver blade bore diameter

22mm

Mortiser

C300

Working table

250*500mm

Longitudinal stroke

205mm

Trasversal stroke

95mm

Vertical stroke

90mm

Churck

16mm

Churck rotation speed

5700rpm

Shaper

C300

Working table

220*1000mm

Shaft rotation speed

2000/3100/4400/7000rpm

Standard shaft diameter

30mm

Spindle length

105mm

Shaft vertical stroke

115mm

Max. tool diameter

160mm

Max. tenoning depth

55mm

Tenoning carriage

C300

Carriage dimensions

1250*315mm

Carriage stroke

1250/1600mm

Standard accessories

C300

N°2 clamp lever

*

Sharper fence

*

Service wrenches

*

Mortiser chuck

*

Table extensions with swinging arms

800*600mm

Guards on mortiser chuck

*

3 pcs. planning knives

*

Planner guide

*

Saw guide

*

Bridge safety hood on planner

*

3-phase motor power

3.0HP-2.2KW

Weight

530kg

Optional accessories

C300

Single-phase motor*3

2.7HP-2.0KW

3-phase motor*3

4.0HP-3.0KW

Extraction unit

0.5HP-0.36KW

Set of wheels with feeding steering bar

Contouring fence

Regulating to copy

Wescott (Diameter)

16mm

Carriage stroke

1600/1600mm

Carriage stroke

1800/1800mm

Carriage stroke

2200/2200mm

Tenoning with protection shelf

 326*500
