Company profile
product Ifo

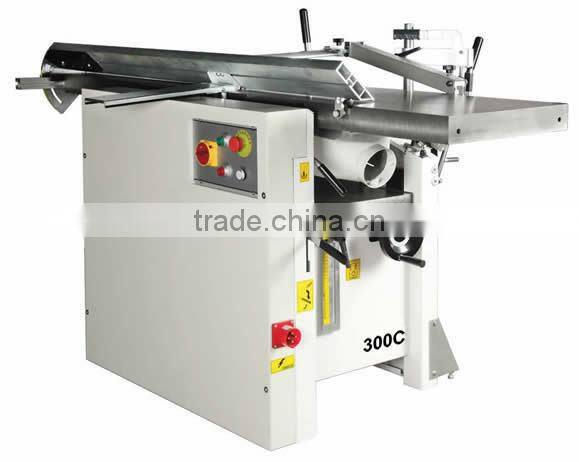

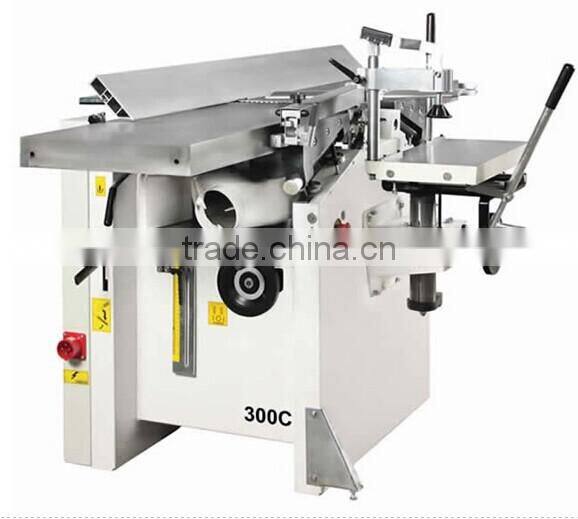

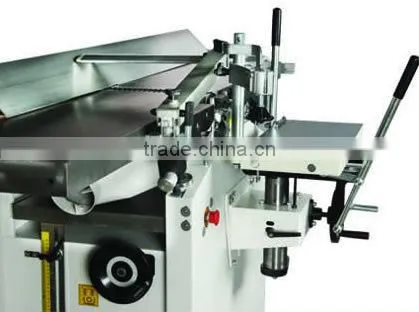

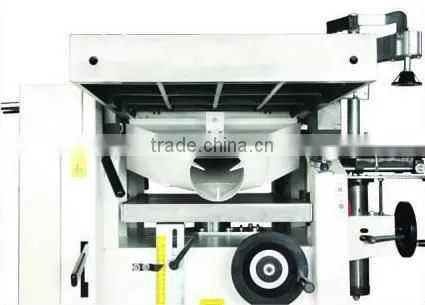

Three-work Combined Wood Machine
Model:300C
Three fuctions in one: suface planer + thicknesser + morister
From Italy original designed manufacture
Exhibition photo
product parameter
Three-work Combined Wood Machine
Planer | 300C | |
Working tables | mm | 300x1500 |
Cutterblock diameter | mm | 70 |
Cutterblock rotation speed | r.p.m | 5700 |
N. of knifes | n° | 3 |
Knifes dimensions | mm | 300x20x3 |
Max table adjustement | mm | 4 |
Thicknesser | 300C | |
Working table | mm | 300x660 |
Feed speed | m/1' | 7 |
Max. working height | mm | 220 |
Min. working height | mm | 4 |
Cutterblock rotation speed | r.p.m. | 5700 |
Max. cutting depth | mm | 4,0 |
Standard accessories | 300C | |
Service wrenches | ||
Guards on mortiseur chuck | * | |
3 pcs. planing knives | * | |
Planer guide | ||
Bridge sefety hood on planer | * | |
3-phase motor power | HP - KW | 3,0 - 2,2 |
Weight | kg | 210 |
Optiona accessories | 300C | |
Single-phase motor | HP - KW | 2,7 - 2,0 |
Increasing 3-phase motor | HP - KW | 4,0 - 3,0 |
Extraction | HP - KW | 0,5 - 0,36 |
Mortiser | ||
Working table | mm | 250x500 |
Longitudinal stroke | mm | 205 |
Trasversal stroke | mm | 95 |
Vertical stroke | mm | 90 |
Churck | mm | 16 |
Churck rotation speed | r.p.m. | 5700 |
Mortiser chuck | * |
Services:
Once there is something wrong with machinery ,we are guaranteed to come to see whtin 24 hours in time in Eropean Country
