7 works combined woodworking machine
7 works combines machine
- Circular Saw.
-Shaper -Spindle Moulder Mortiser
-Surface Planer
-Thickness Machine
7 works combined woodworking machine
Planner |
C300 |
Working table |
300*1500mm |
Cutterblock diameter |
70mm |
Cutterblock rotation speed |
5700rpm |
No. Of knives |
3 |
Knife dimensions |
300*20*3mm |
Max table adjustment |
4mm |
Thicknesser |
C300 |
Working table |
300*660mm |
Feed speed |
7m/s |
Max working height |
220mm |
Min working height |
4mm |
Cutterblock rotation speed |
5700rpm |
Max cutting depth |
4mm |
Circular saw |
C300 |
Working table |
220*1000mm |
Shaft rotation speed |
4500rpm |
Blade diameter |
250mm |
Blade bore diameter |
30mm |
Cutting height 90° |
80mm |
Max. distance between blade and fence |
500mm |
Blade inclination |
45° |
Max. cutting height 45° |
50mm |
Shaft rotation speed engraver |
7000rpm |
Engraver blade diameter |
90mm |
Engraver blade bore diameter |
22mm |
Mortiser |
C300 |
Working table |
250*500mm |
Longitudinal stroke |
205mm |
Trasversal stroke |
95mm |
Vertical stroke |
90mm |
Churck |
16mm |
Churck rotation speed |
5700rpm |
Shaper |
C300 |
Working table |
220*1000mm |
Shaft rotation speed |
7000/4400/3100/2000rpm |
Standard shaft diameter |
30mm |
Spindle length |
105mm |
Shaft vertical stroke |
115mm |
Max. tool diameter |
160mm |
Max. tenoning depth |
55mm |
Tenoning carriage |
C300 |
Carriage dimensions |
1250*315mm |
Carriage stroke |
1600mm |
Standard accessories |
C300 |
N°1 clamp lever |
* |
Sharper fence |
* |
Service wrenches |
* |
Mortiser chuck |
* |
Table extensions with swinging arms |
800*600mm |
Guards on mortiser chuck |
* |
3 pcs. planning knives |
* |
Planner guide |
* |
Saw guide |
* |
Bridge safety hood on planner |
* |
3-phase motor power |
3HP(2.2kw) |
Weight |
530kg |
Optional accessories |
C300 |
Single-phase motor*3 |
2.7HP(2kw) |
3-phase motor*3 |
4HP(3kw) |
Extraction unit |
0.5HP(0.36kw) |
Set of wheels with feeding steering bar |
|
Contouring fence |
|
Regulating to copy |
|
Wescott (Diameter) |
16mm |
Carriage stroke |
1600/1600mm |
Carriage stroke |
1800/1800mm |
Carriage stroke |
2200/2200mm |
Tenoning with protection shelf |
|

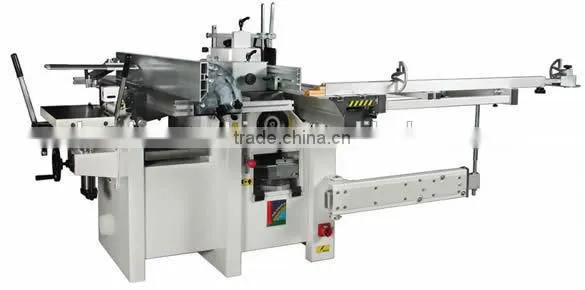

The C300 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory,small professional workshop or home user. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
Being a professional standard machine, the C300 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.

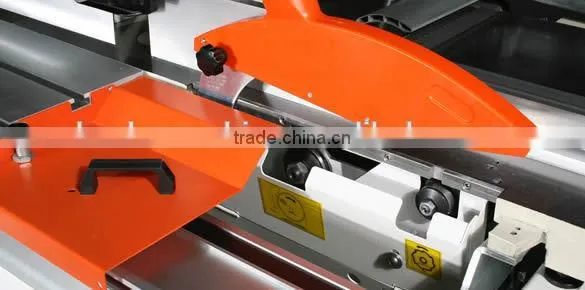

The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.

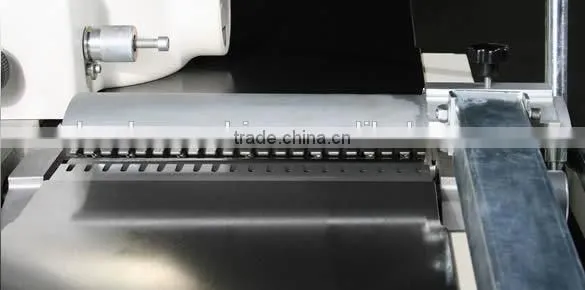

The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.

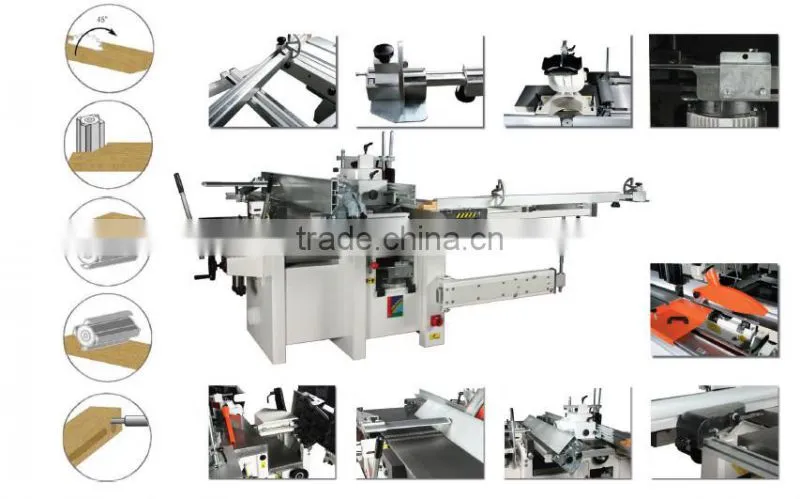

Features:
Panel saw sliding beam
Scoring for veneered boards

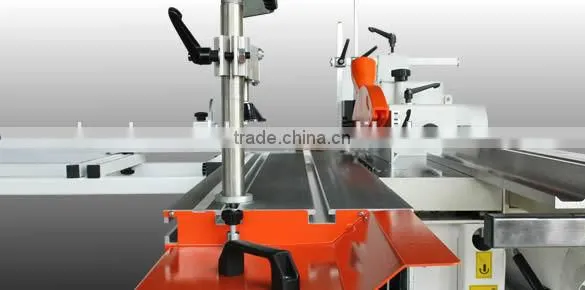

Accurate cross cut fence with flipstops
Cast iron construction
Sturdy swinging arm squaring frame
Inward parallel swing planer table
Micro adjust spindle moulder fence
3 class 1 motors
Fully adjustable settings
