C300 Combination Woodworking Machines By CE Certification
USD $3,000 - $4,000
/ Set
5 Sets(Min.Order)
- 20 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
combination universal woodworking machine made in china
-
C400 Eruopean Quality CE Certification multifunction woodworking machine
-
combined woodworking machine
-
C300 Combination Woodworking Machines
-
C300 combine woodworking machine China Supplier(CE approved)
-
C300 7 function automatic woodworking machine/7 usages woodworking machine
Product Details
| Condition | New | Type | Band Saw | |
| Use | Woodworking | Style | Horizontal | |
| Place of Origin | Shandong, China | Brand Name | leader | |
| Model Number | 300C | Usage | woodworking | |
| Voltage | 380V | Dimension(L*W*H) | 2200*1590*900 | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

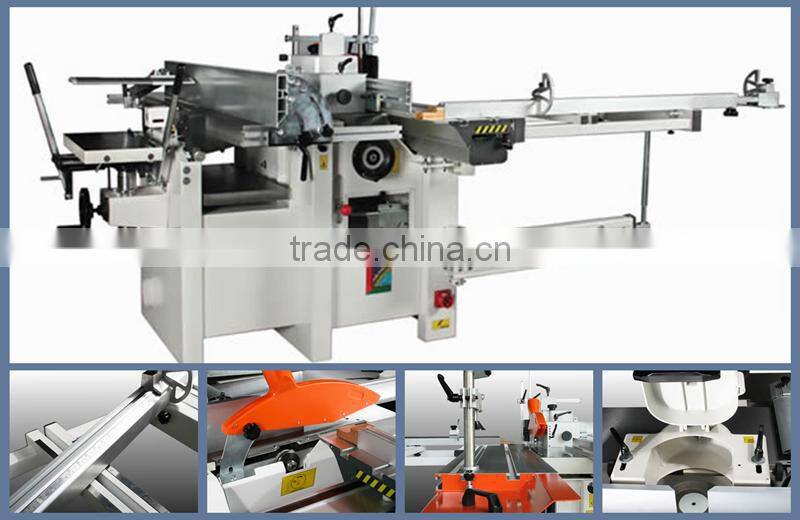

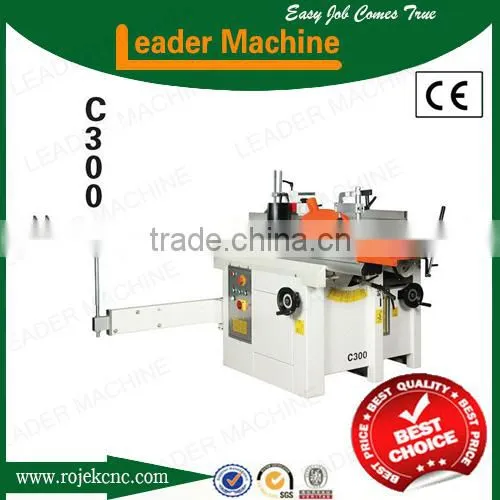

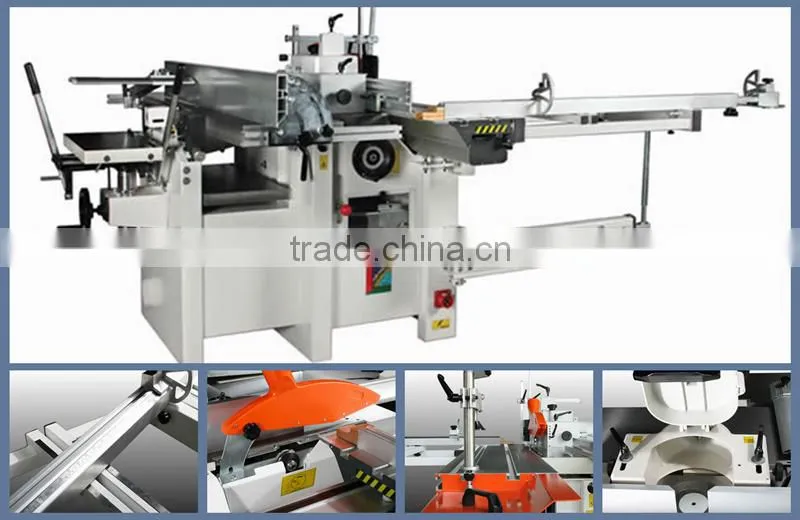

The C300 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory,small professional workshop or home user. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
Features :
Panel saw sliding beam
Scoring for veneered boards
Accurate cross cut fence with flipstops
Cast iron construction
Sturdy swinging arm squaring frame
Inward parallel swing planer table
Micro adjust spindle moulder fence
3 class 1 motors.
Fully adjustable settings
| Planer | Unit | C300 |
| Working tables | mm | 300x1500 |
| Cutterblock diameter | mm | 70 |
| Cutterblock rotation speed | r.p.m | 5700 |
| N. of knifes | n° | 3 |
| Knifes dimensions | mm | 300x20x3 |
| Max table adjustement | mm | 4 |
| Thicknesser | Unit | C300 |
| Working table | mm | 300x660 |
| Feed speed | m/1' | 7 |
| Max. working height | mm | 220 |
| Min. working height | mm | 4 |
| Cutterblock rotation speed | r.p.m. | 5700 |
| Max. cutting depth | mm | 4 |
| Circular saw | Unit | C300 |
| Working table | mm | 220x1000 |
| Shaft rotation speed | r.p.m. | 4500 |
| Blade diameter | mm | 250 |
| Blade bora diameter | mm | 30 |
| Cutting height 90° | mm | 80 |
| Max. distance between blade and fence | mm | 500 |
| Blade inclination | 0° | 45° |
| Max cutting height 45° | mm | 50 |
| Shaft rotation speed engraver | r.p.m. | 7000 |
| Engraver blade diameter | mm | 90 |
| Engraver blade bora diameter | mm | 22 |
| Mortiser | Unit | C300 |
| Working table | mm | 250x500 |
| Longitudinal stroke | mm | 205 |
| Trasversal stroke | mm | 95 |
| Vertical stroke | mm | 90 |
| Churck | mm | 16 |
| Churck rotation speed | r.p.m. | 5700 |
| Shaper | Unit | C300 |
| Working tables | mm | 220x1000 |
| Shaft rotation speeds | r.p.m. | 2000/3100/4400/7000 |
| Standard shaft diameter | mm | 30 |
| Spindle lenght | mm | 105 |
| Shaft vertical stroke | mm | 115 |
| Max. tool diameter | mm | 160 |
| Max. tenoning depth | mm | 55 |
| enoning carriage | Unit | C300 |
| Carriage dimensions | mm | 1250x315 |
| Carriage stroke | mm | 1250/1600 |
