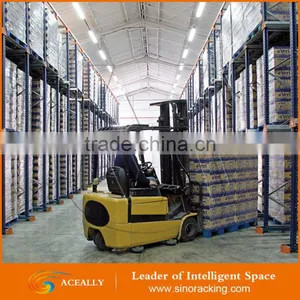

Drive-in Rack with Forklift in Material Handling Equipment
One.Warehouse Storage Drive In Rack detailed introduction
| Features | 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High Strength and durability, easy for complete installation. 4. Pallets can be located, accessed and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. |
| Beam & Frame | 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck |
| Main Parts Specs | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Load Capacity & Dimension | 1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Specail sizes also avaiable to specific storage needs. |
| Delivery Time | Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery. |

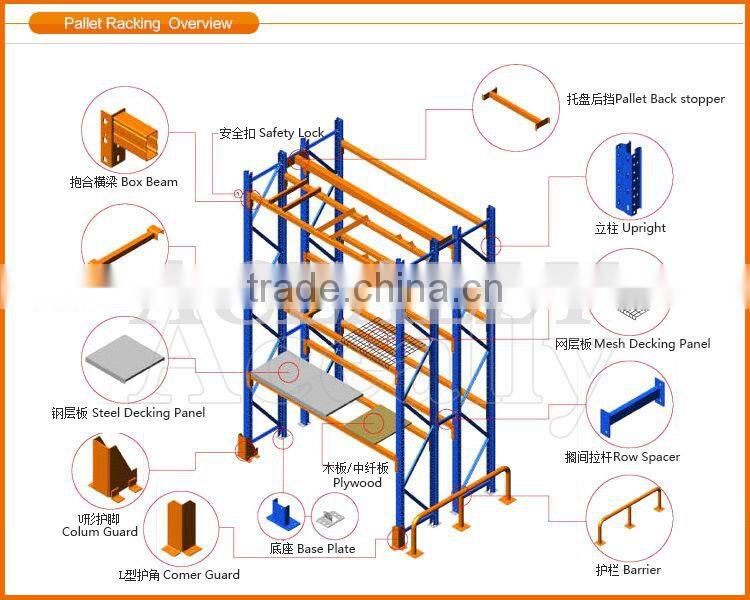

Two. Below listed pictures is related to pallet rack shelving detailed instruction.
Pallet rack shelving Beam Post Distributed Loading Chart
| UPRIGHT LOADING TABLE | ||||||||||
| 80x60x1.8 8500KG/BAY | ||||||||||
| 80x60x2.0 9400KG/BAY | 100x70x1.8 11800KG/BAY | |||||||||
| 90x70x1.8 10000KG/BAY | 100x70x2.0 13500KG/BAY | |||||||||
| 90x70x2.0 11800KG/BAY | 100x70x2.3 15000KG/BAY | |||||||||
| 90x70x2.5 15000KG/BAY | 100x70x2.5 16300KG/BAY | |||||||||
BOX BEAM LOADING TABLE
| ||||||||||
| Beam length (mm) | 80*50*1.5 | 100*40*1.5 | 100*50*1.5 | 110*50*1.5 | 120*40*1.5 | 120*50*1.5 | 140*40*1.4 | 140*50*1.5 | 160*40*1.5 | 160*50*1.5 |
| 1500 | 4286 | |||||||||
| 1800 | 2977 | |||||||||
| 1900 | 2672 | 3809 | 4535 | |||||||
| 2200 | 1993 | 2841 | 3382 | 4219 | ||||||
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | 4665 | ||||
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | ||||
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | 5160 | ||
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | ||
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3716 | 4425 | 5068 | 6033 |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | 4105 | 4887 |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 2985 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2508 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2251 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2032 | 2419 |

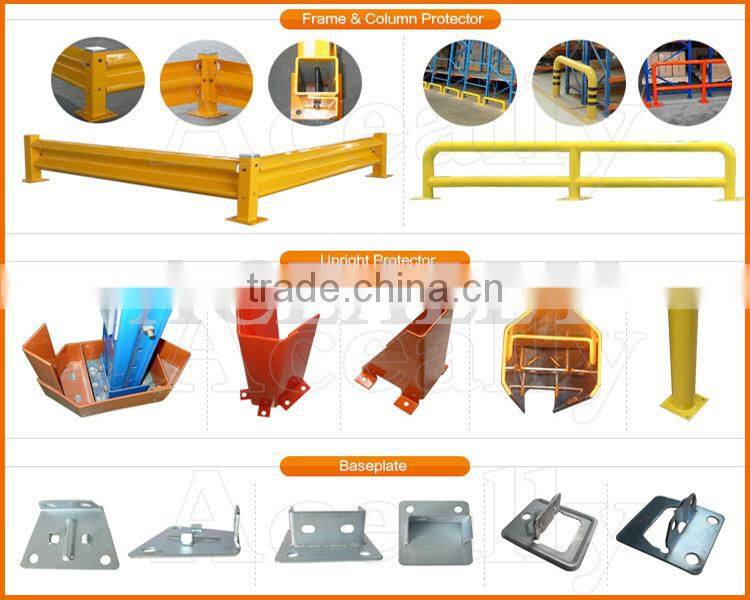

Pallet rack shelving accessories
Pallet rack shelving Consulting and Design Services
We offer no obligation professional consultation and design. Allow our experienced staff to assist you in designing a storage system that best suits your particular needs.
We also offer:
• Professional CAD Drawings
• Stamped Engineered Drawings
Custom sizes and colors are also available.
Custom designed and built to meet your specific needs and requirements.
After Sale Service
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
record customer respond,suggestion,requirement.

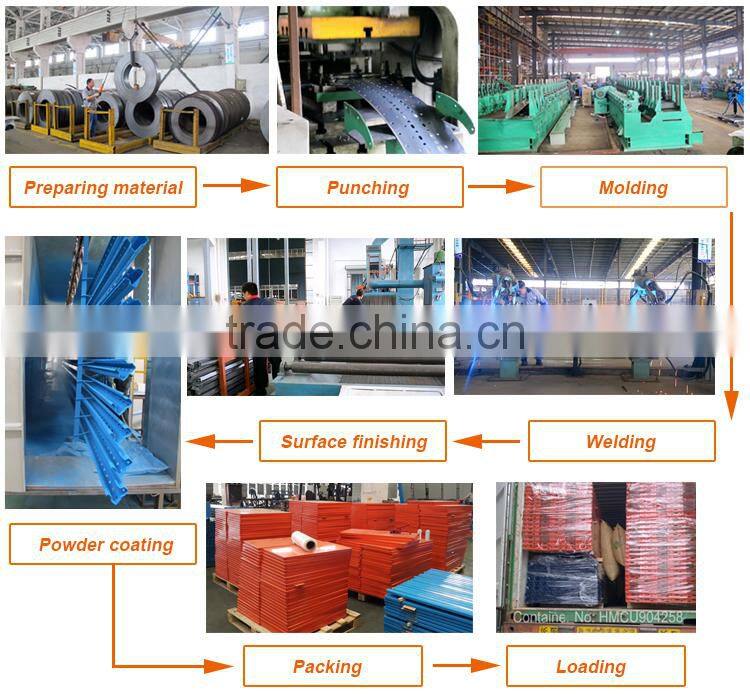

The working flow chart of pallet rack shelving
Remarks: Our pallet rack shelving system are with advanced equipment, especially
1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it’s better at cleaning and more efficient .
2. AkzoNobel Powder Coating: it’s one of the best powder , colorful and highly decorative
3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.
