silent  generator 10kva

1.     new patented design,compact structure & light weight

2.     strong whole rigidity,low noise

3.     operation and maintenance easily

Model
QC8000LPT/TA
QC8000LPT3/TA3
QC10000LPT/TA
QC10000LPT3/TA3
Rated frequency Hz
50       60
50       60
50       60
50       60
Output power KVA
5.5       6.3
7.0    7.5
8       9
10    11
Rated voltage V
230/115   240/120
400/230  416/240
230/115   240/120
400/230   416/240
Rated current A
23.9/47.8    26.3/52.5
8.1   10.4
34.7/69.5    37.5/75
11.5      12.5
Phase No.
Single
Three
Single
Three
Power factor cosφ
1
0.8(lag)
1
0.8(lag)
Insulation
F
Pole No.
2
Excitation mode
Self-excitation and constant voltage(with AVR)
DC12V output
12,8.3A
Dimension  mm
935×530×630
Net weight  kg
171
Noise (7m) db(A)
70dB
Engine model
QC188FB
QC570
Type
Single,4-stroke,air-cooled,direct injection
Displacement
438
567
Cooling way
Air-cooled
Lubricating  way
Pressure  &  splashing
Starting  way
electric
electric
Lube oil capacity L
1.65
Starting motor capacity V-KW
12V  0.8KW
Dynamo capacity V-A
12V 8.3A
Battery capacity V-Ah
12V 30A
Fuel tank capacity L
16L

6.0 Outboard diesel engine QC6D-1

air-cooled diesel engine QC530/QC570

Vertical air-cooled diesel engine QC460V/QC570V

V-twin air-cooled diesel engine QC840XQC870XQC900X

5.5-10KVASilent diesel generator set

11-16KVA open frame diesel generator set

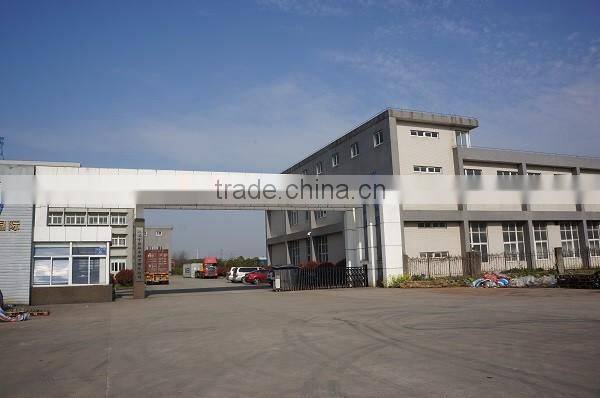

The company is located in Nantong Economic & Technological .Development Zone in Jiangsu province.IT is only one hour to Shanghai Hongqiao airport. The company regards independent innovation as the core with many patents, covered airpower and general power. In civil general power, the products developed by the company are of advanced international level and domestic leading level.Single air-cooled Diesel Engine(QC570) is the smallest volume and the lightest weight, but its power is the strongest over the world at present. The Pioneering Silent Generator with Movable Outer Case is the newest designing which is convenient to service. Among the products of 8-12KW generator sets, the products made by the company are more lighter weight and smaller volume than others, and are of  advanced international level. After many years' developing, my department has successfully taken the lead in the global in developing the highly energy-efficient and advanced the energy-prepared changing set of new energy generating system. The perfect combination with solar power generating system  has made solar power  generation become the real independent power generation  without power grid and enter  thousands of households more conveniently and economically. The company has excellent R&D personnel and production management team,mainly engaged in this industry for many years. The enterprise management and quality control are of standard. We will provide the best quality products to all customers from first to last

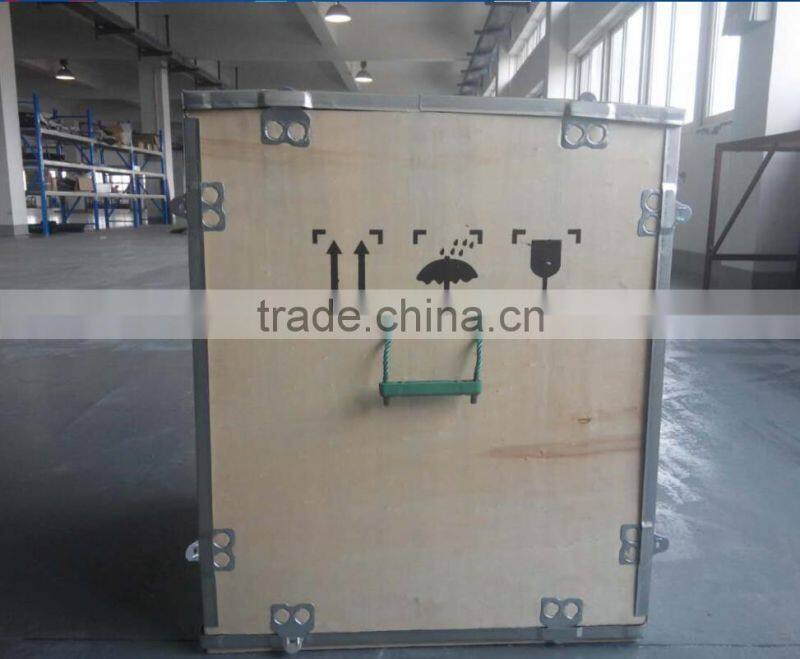

Package of Power supply machine, silent  generator 10kva

Usually, it is with plywood case.

Shipping of Power supply machine,  silent generator 10kva

We ship the goods by sea after receiving the balance.

Service of Power supply machine, silent  generator 10kva

• Free loading capacity analysis
• Free technology consulations
• Free testing and debuging
• 12 months or  warranty service
• Spare parts offered
• 24/7 on-line technical serivce

1Q:Can I only buy parts not whole system?

A: Yes, for example you can manufacture tower in local, we can supply you tower drawing.

2Q:Is it all right to make customer's own brand name

A: Sure,with your authorization of brand

3Q: What are your payment terms?

A: T/T 30% deposit,70% balance before delivery

100% T/T Advanced payment for sample orders L/C at sight

4.Q:How about quality control in your factory?

A:"Quality is first, Customers are friends".

Every piece of goods is tested strictly one by one before packing and shipping.
