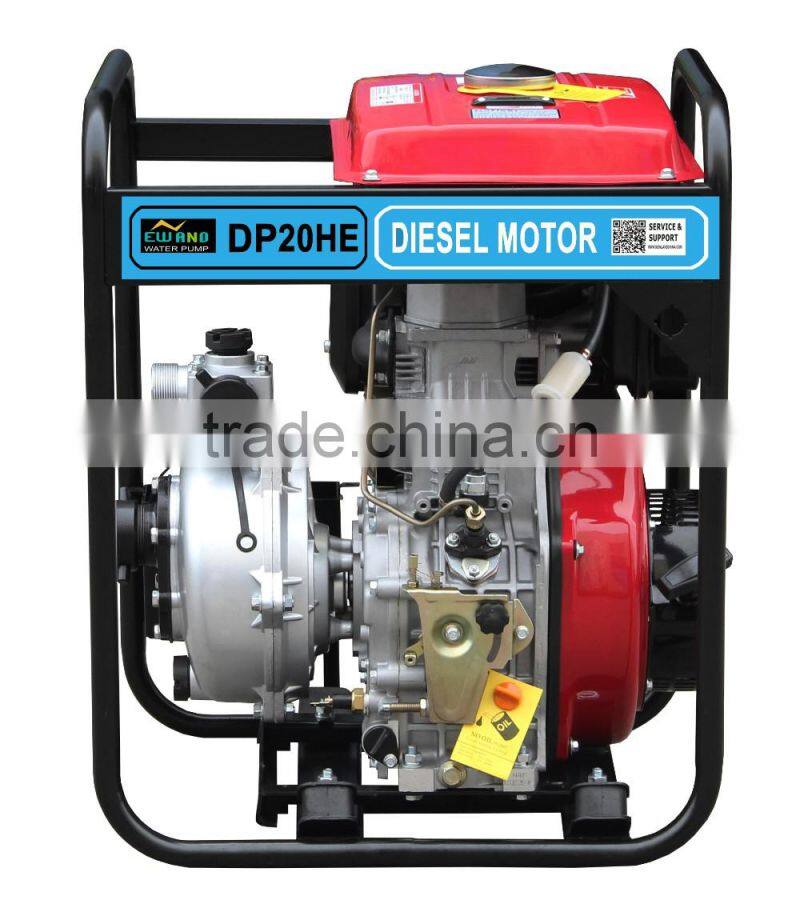

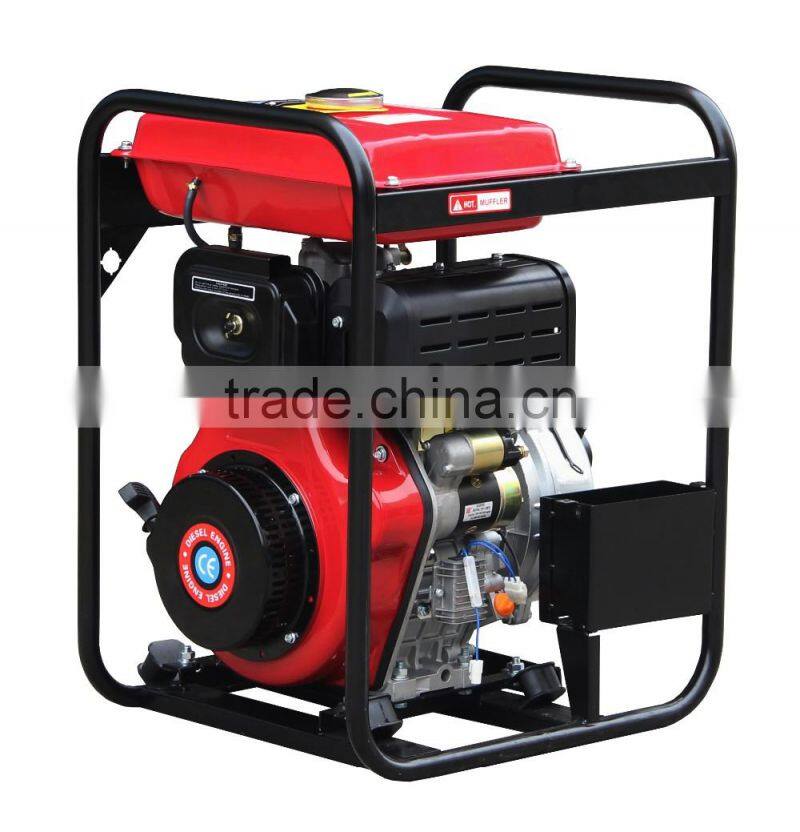

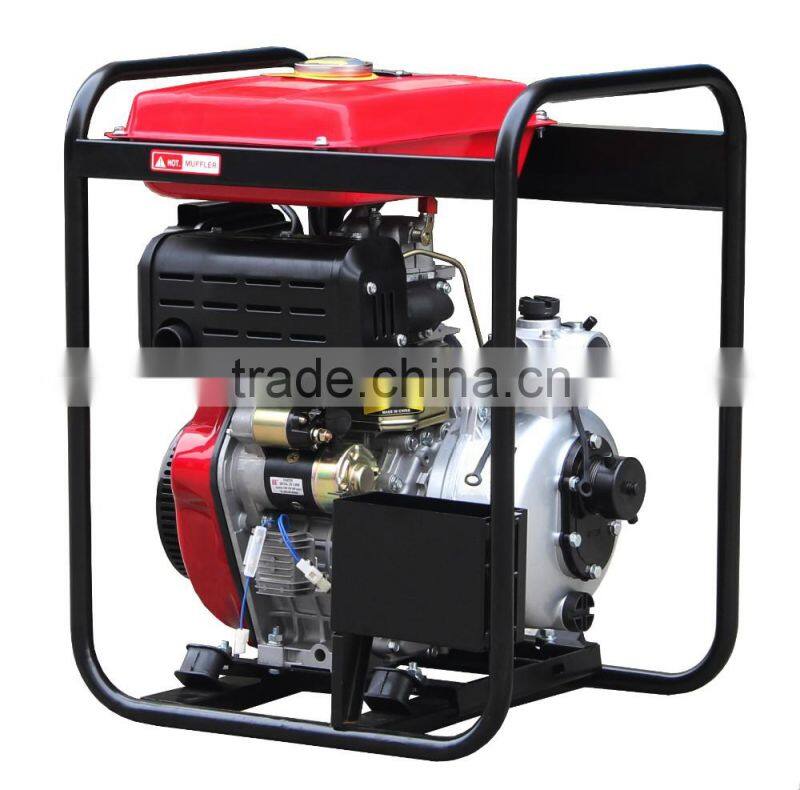

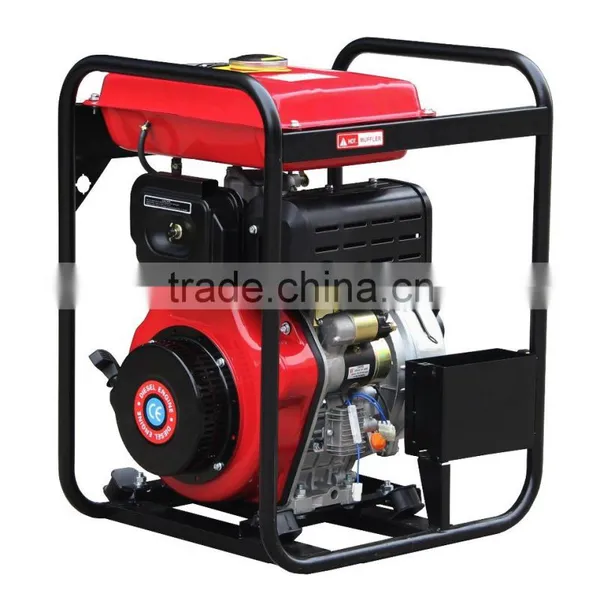

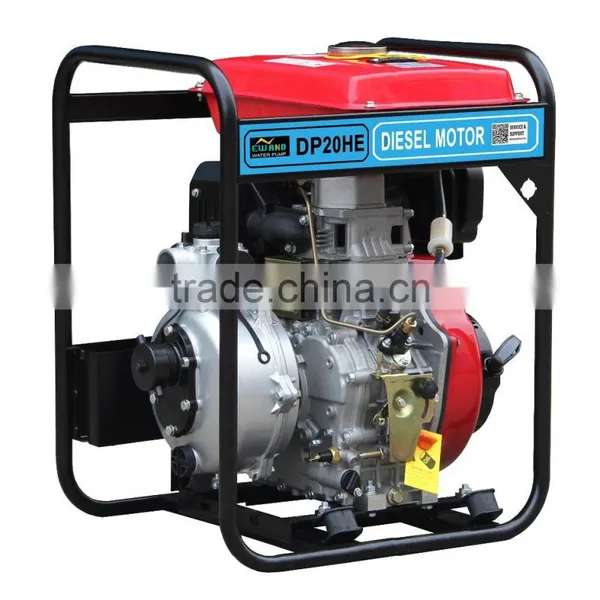

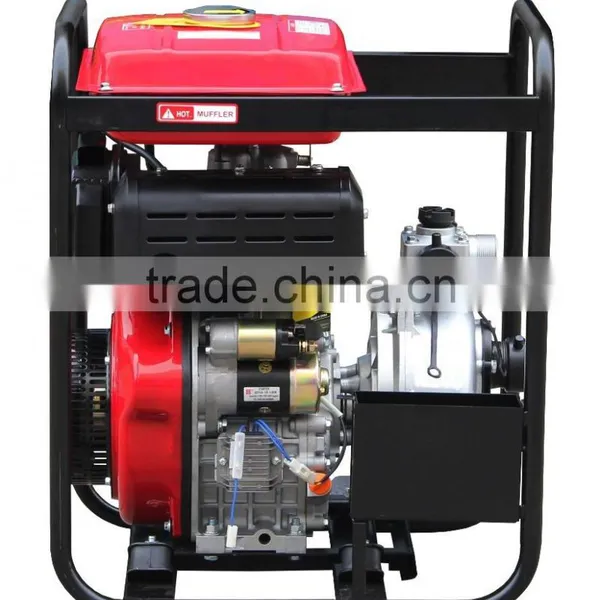

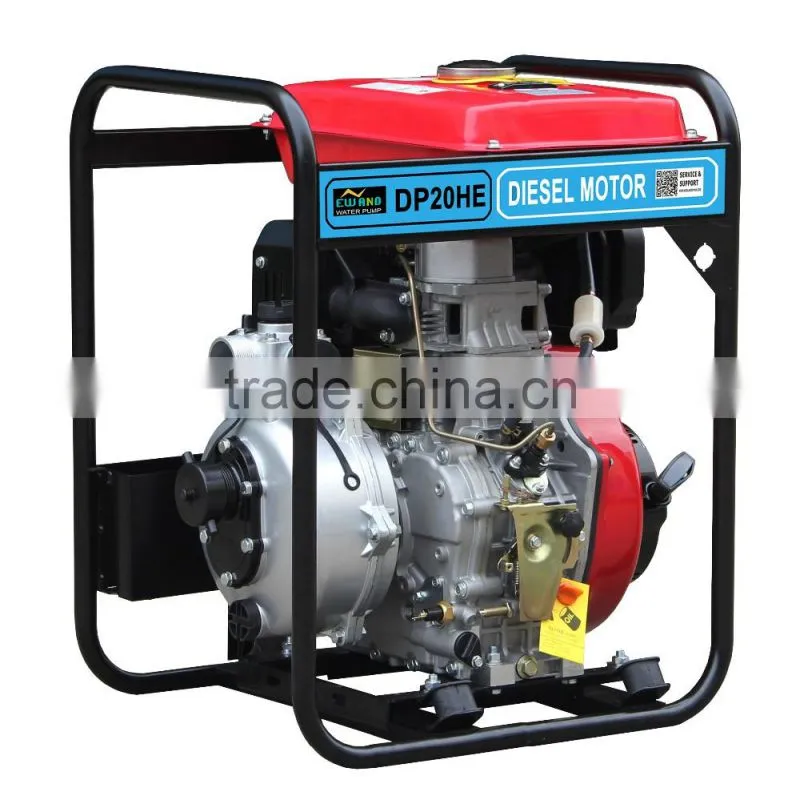

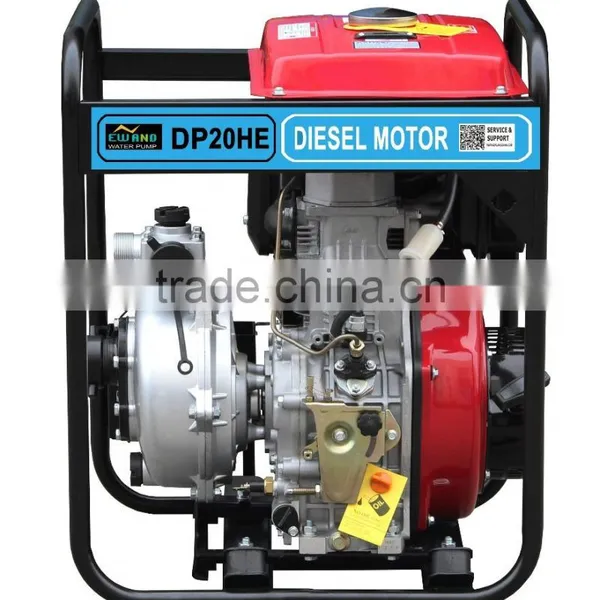

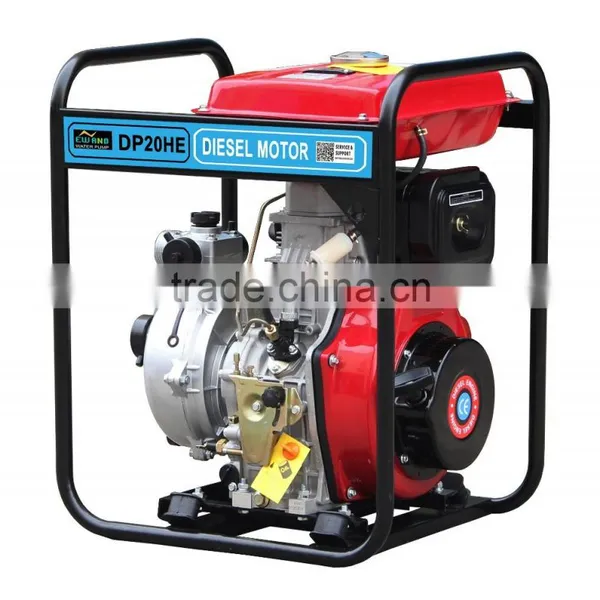

cont. head 55m max suction head 8m 186F engine diesel 2inch high pressurefire water pump
Feature
1.Powered by HONDA engine,the strong and lightweight die-cast aluminium pump delivers high
volume of water.
2. Economical, reliable and durable
3. CE, SONCAP, ISO certification approved
4. One year warranty
Item No.: Newland DP15H
Specification
cont. head 55m max suction head 8m 186F engine diesel 2inch high pressurefire water pump | ||||
| AIR-COOLD DIESEL WATER PUMP SET | ||||
| Model | DP15H | DP20H | DP30H | |
| WATER PUMP | Suction,discharge port diameter(mm(in)) | 40(1.5") | 50(2") | 80(3") |
| HP | 6 | 9 | 12 | |
| Cont.head(m) | 60 | 55 | 75 | |
| Self-priming time (s/4m) | 30 | 30 | 30 | |
| Max suction head (m) | 8 | |||
| Cont.capacity(m3/hr) | 18 | 23 | 47 | |
| ENGINE | Engine model | 178F | 186F | 188FA |
| Speed(rpm) | 3000/3600 | |||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |||
| Displacement(cc) | 296 | 406 | 456 | |
| Bore×stroke (mm) | 78×62 | 86×70 | 88×75 | |
| Starting system | Recoil or Electric | |||
| Fuel tank capacity(L) | 3.5 | 5.5 | 5.5 | |
| STANDARD FEATURES | Connecter of infall,Connecter of outfall | yes | yes | yes |
| Filter | yes | yes | yes | |
| Seal ring | yes | yes | yes | |
| Hoop | yes | yes | yes | |
| OPTIONAL FEATURES | Luxury big fuel tank | optional | optional | optional |
| Electric Start | optional | optional | optional | |
| DIMENSIONS | Dimension(L×W×H)(mm) | 540×440×540 | 645×475×605 | 645×475×605 |
| Dry weight(kg) | 42 | 69 | 75 | |
About US
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Workshop
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 50 sets
3.Q: Are you manufactory or Trading Company?
A: We are manufactory in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
T/T 30% deposit,70% balance irrevocable L/C at sight
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 15~20 days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Do you have 4inch diesel water pump?
A: Yes,we have 2inch,3inch,big and small 4inch diesel water pump.
10.Q: Is this model with key start?
A: We have recoil start and electric start,electric start with key.
