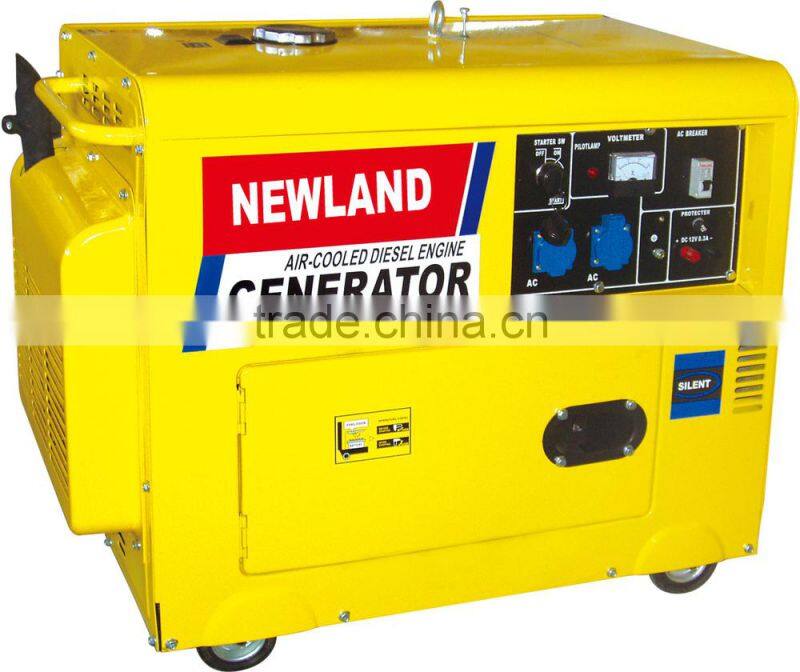

Copper wire,electric start,220V230V240V/50HZ60HZ diesel 2kw3kw4kw5kw6kw 10kw generator

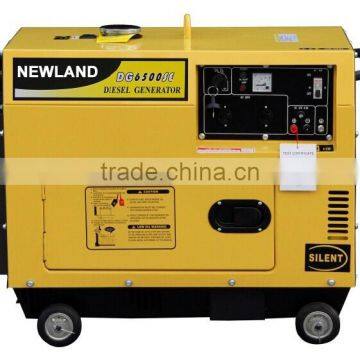

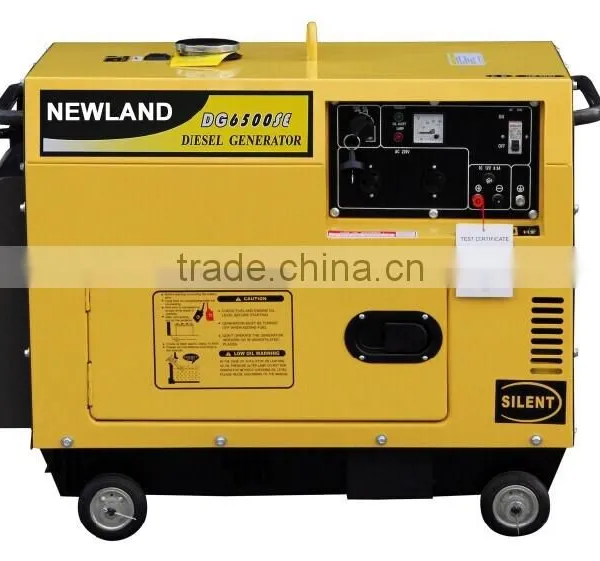

Item No.: DG6500SE
1. Overload and low oil warning for safe running.
2. AVR alternator provides stable voltage and current.
3. Powered by 4-stroke air-cooled diesel engine.
4. Large-capacity mufflers for super silent operation.
5. Portable, easy to fit wheels and handle.
6. One year warranty with free spare parts.
Specification
Copper wire,electric start,220V230V240V/50HZ60HZ diesel 2kw3kw4kw5kw6kw sound proof generator | |||||||||||
| GENERATOR | 4500SE | 6500SE | 7500SE | 8500SE | 12000SE | 15000SE | |||||
| Frequency (HZ) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | |||||
| Max.output (KW) | 3.3/3.5 | 5/5.5 | 5.5/6 | 6.5/7 | 9/9.5 | 10/11 | |||||
| Rated output(KW) | 3/3.3 | 4.6/5 | 5/5.5 | 6/6.5 | 8.5/9 | 9/10 | |||||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380 | ||||||||||
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| DC output (V) | 12V/8.3A | ||||||||||
| Phase | Single Phase/Three phase | ||||||||||
| Alternator Type | Self-excited,2-pole, Single alternator | Self-excited | |||||||||
| Starting System | electric | ||||||||||
| Noise Level (dB(A/7m) | 68-72 | 86dB | |||||||||
| Fuel Tank Capacity (L) | 16 | 16/30 | 30 | 30 | |||||||
| Continuous Running Time (hr) | 8.5/7.8 | 8.5/7.8 | 8.5/7.8 | 8.5/7.8 | 9.4/8.4 | 9.4/8.4 | |||||
| ENGINE | |||||||||||
| Engine Model | 178F | 186FA | 188FA | 192FB | 2V86 | 2V88 | |||||
| Engine Type |
single-cylinder, vertical,4-stroke, air-cooled diesel engine |
two-cylinder, vertical,4-stroke air-cooled diesel engine |
|||||||||
| Bore×Stroke | 78×64 | 86×72 | 88×75 | 92×75 | 86×72 | 88×72 | |||||
| Fuel Consumption rate g/kw/h | ≤295 | ≤280 | ≤280 | ≤280 | ≤268 | ≤268 | |||||
| Fuel | 0# or -10# light diesel oil | ||||||||||
| Lubrication Oil Volume (L) | 1.65 | 1.7 | |||||||||
| Combustion System | Direct Injection | ||||||||||
| PACKING | |||||||||||
| Dimention(LxWxH)(cm) | 85*56*76 | 95*56*76 | 95*56*76 | 95*56*76 | 123*75*84 | 123*75*84 | |||||
| Net Weight(kgs) | 144 | 155 | 156 | 156 | 265 | 265 | |||||
| Container quantity 20GP | 72 | 72 | 72 | 72 | 26 | 26 | |||||
| 40HQ | 144 | 144 | 72 | 72 | 52 | 52 | |||||
TAIZHOU NEWLAND MACHINERY CO.,LTD here, exports gasoline generator, diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become best choice for all customers.
Company Show
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q:How about guarantee?
A: within 1year after goods is discharged in the destination.
We will suply the consumables if it broken under normal using.
For example, fuel cock,spark plug,recoil starter,etc.
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q:Is it all right to make customer brand name?
A:If your brand already registed in China and it belong to your company.It is ok we can accept it and do it.
More than 500sets can make color carton.
