diesel generator with welding machine
- 20000 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | NEWLAND/OEM/ODM | Model Number: | DG6500SEW |
| Output Type: | AC Single Phase | Speed: | 3000/3600rpm | Frequency: | 50HZ/60HZ |
| Rated Power: | 5KW | Rated Voltage: | 220V/230V | Rated Current: | 8.3A |
Product Description

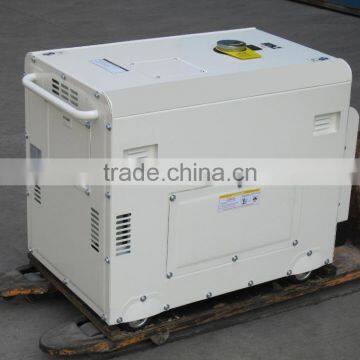

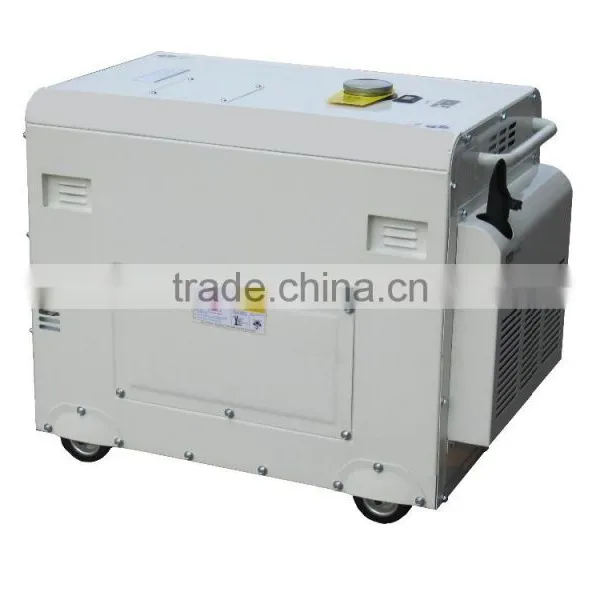

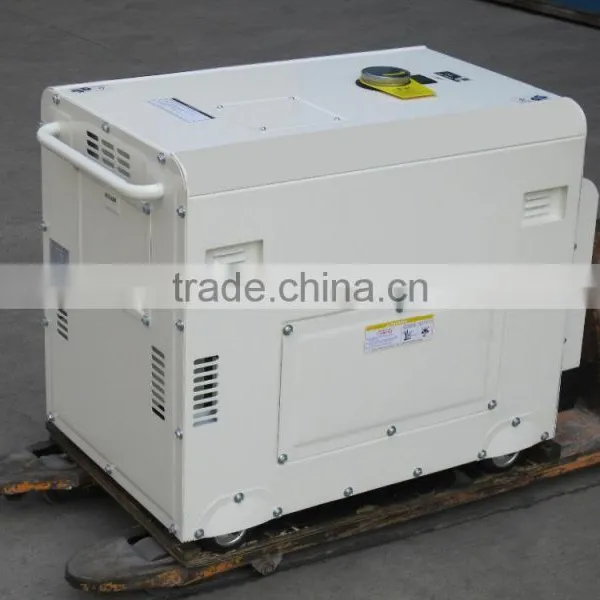

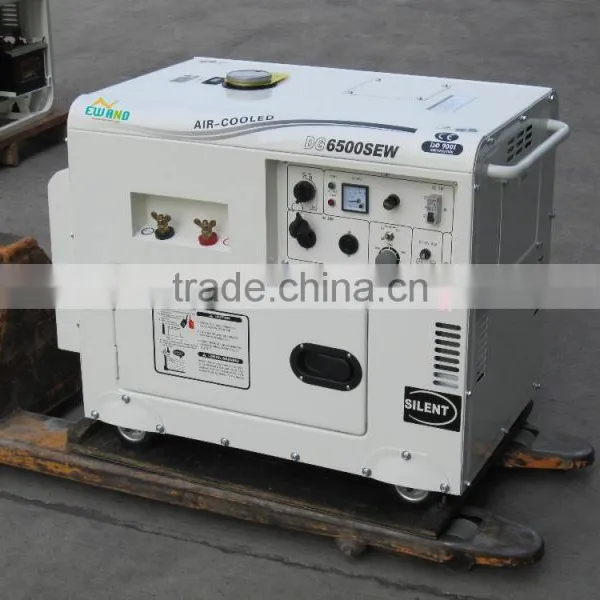

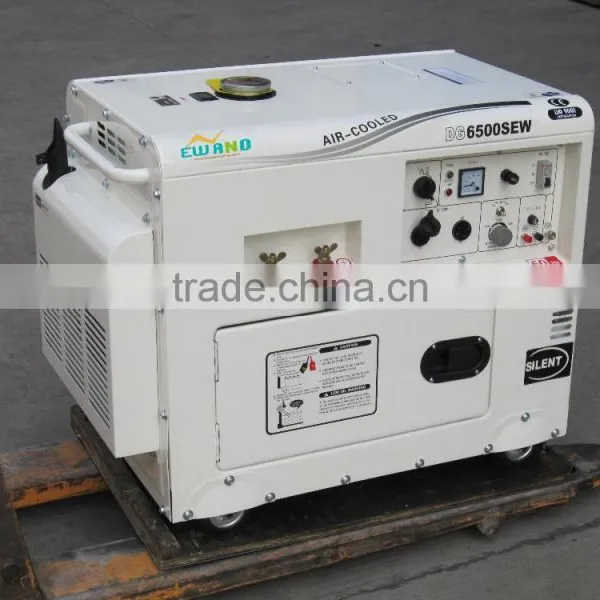

diesel generator with welding machine
Feature
1. Overload and low oil warning for safe running.
2. AVR alternator provides stable voltage and current.
3. Powered by 4-stroke air-cooled diesel engine.
4. Large-capacity mufflers for super silent operation.
5. Portable, easy to fit wheels and handle.
6. One year warranty with free spare parts.
Specification
diesel generator with welding machine | ||
| DG6000EW | DG6500SEW | |
| GENERATOR | ||
| Frequency(HZ) | 50/60HZ | |
| Rated.AC voltage(V) | 230,240 | |
| Rated Current (A) | 7.8/9.2 | |
| Rated output(kva) | 1.8/2.2 | |
| Rated speed (rpm) | 3000/3600 | |
| Welder | ||
| Welding no-load voltage (V) | 55-65 | |
| Working voltage (V) | 26-30 | |
| Rated Current (A) | 160 | |
| Range of current (A) | 0-180 | |
| Welding efficiency | 60% | |
| Power factor (cos) | 1 | |
| Phase | 1 | |
| Noise level(at 7m) | 80-85db | |
| ENGINE | ||
| Model | HR186FA | |
| Engine type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×stroke (mm) | 86×72 | |
| Displacement Capacity (cc) | 418cc | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication oil volume (L) | 1.65 | |
| Combustion system | Direct Injection | |
| STANDARD FEATURES | ||
| Voltmeter | YES | |
| AC Output Socket | 2 | |
| Ac circuit breaker | ||
| OPTIONAL FEATURES | ||
| Oil warning light | YES | |
| Oil alert | YES | |
| Dccircuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| DIMENSIONS | ||
| Dimention(LxWxH)(cm) | 70*47*60 | 925x525x680 |
| Net Weight(kgs) | 102 | 170 |
| 20FT loading pcs | 102 | 72 |
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 10 sets
3.Q: Are you manufactory or Trading Company?
A: We are trading company based on our own factory
in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand.
We have over 10 years OEM/ODM experience.
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
D/P for regular good reputation customers.
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 20-25days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Which engine type about your products?
A: 1-Cylinder;4-stroke,air-cooled diesel engine
10.Q: Is your rotor and stator aluminum wire or copper wire?
A: 100% copper
