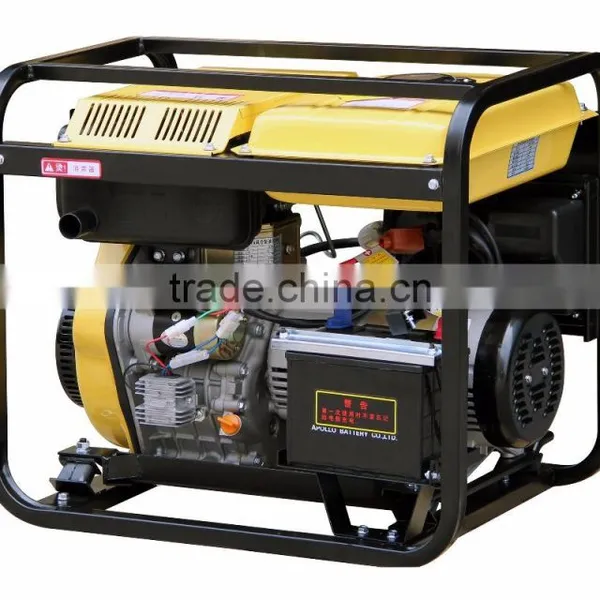

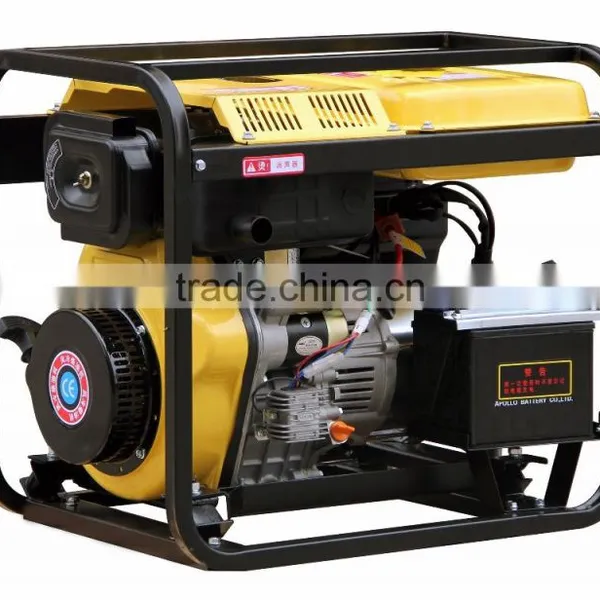

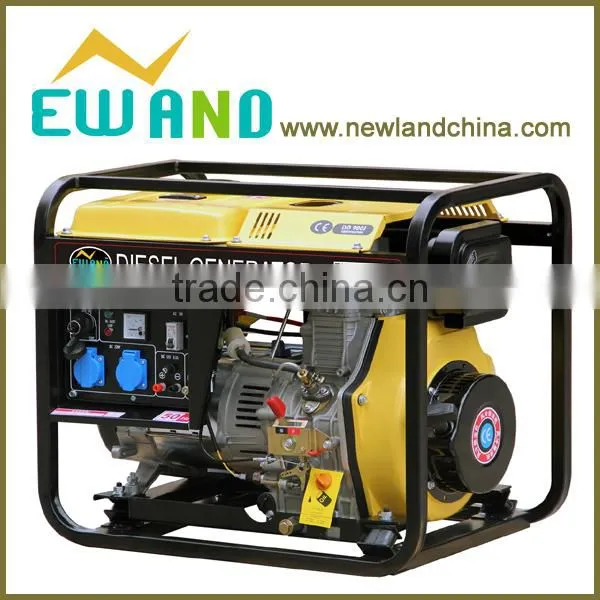

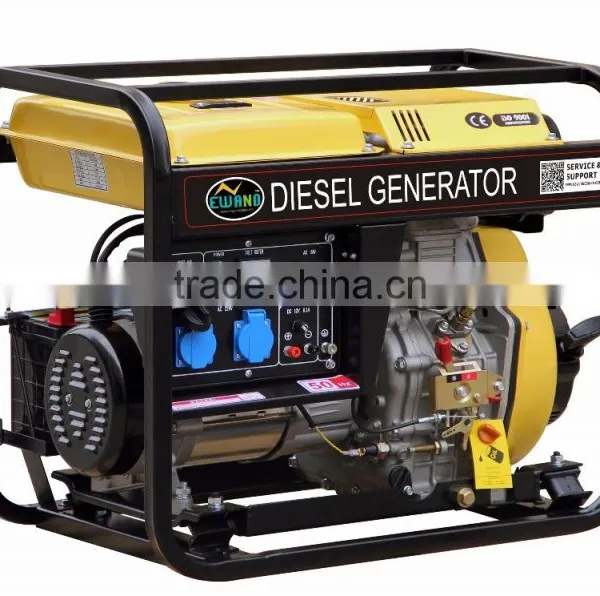

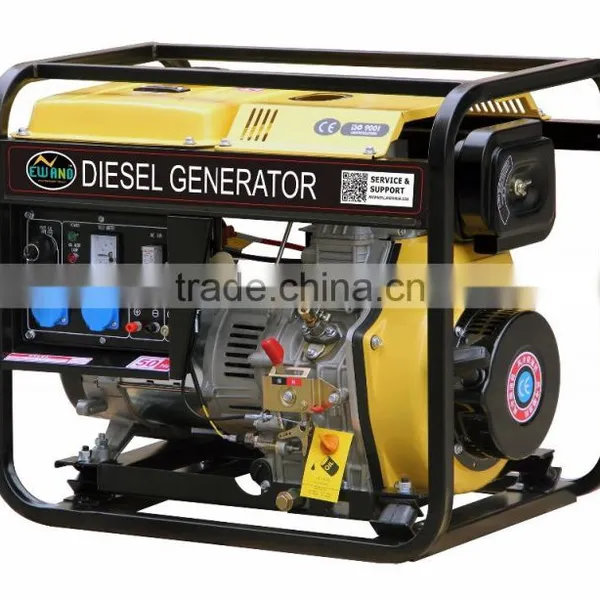

diesel engine generators/open type 2kw diesel generator
Item NO.: NEWLAND Diesel generator DG2500E
Feature
1. Overload and low oil warning for safe running.
2. AVR alternator provides stable voltage and current.
3. Powered by 4-stroke air-cooled diesel engine.
4. Large-capacity mufflers for super silent operation.
5. Portable, easy to fit wheels and handle.
6. One year warranty with free spare parts.
Specification
| diesel engine generators/open type 2kw diesel generator | ||||||||||||||
| 2500(E) | 3000(E) | 6000(E) | 7000(E) | 8000(E) | 12000E | LB15000E | ||||||||
| Generator | ||||||||||||||
| Frequency (HZ) | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||||
| Max.output (KW) | 2/2.2 | 3/3.3 | 5/5.5 | 5.5/6 | 6.5/7 | 9/9.5 | 10/11 | |||||||
| Rated output(KW) | 1.8/2 | 2.8/3 | 4.6/5 | 5/5.5 | 6/6.5 | 8.5/9 | 9/10 | |||||||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380,230/400V,240/415V | |||||||||||||
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| DC output (V) | 12V/8.3A | |||||||||||||
| Phase | Single/Three Phase | |||||||||||||
| Alternator Type | Self-excited,2-pole, Single phase alternator | Self-excited | Self-excited | |||||||||||
| Starting System | manual or electric | electric | electric | |||||||||||
| Noise Level (Dba/7m) | 80-85dB | 86dB | 86dB | |||||||||||
| Fuel Tank Capacity (L) | 12.5 | 30 | ||||||||||||
| Continuous Running Time (hr) | 17/14.5 | 9.7/9 | 6.5/6 | 6.5/6 | 6.5/6 | 9.4/8.4 | ||||||||
| ENGINE | ||||||||||||||
| Engine Model | 170F | 178F | 186FA | 188FA | 192FB | 2V86 | 2V88 | |||||||
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine |
two-cylinder, vertical,4-stroke air-cooled diesel engine |
||||||||||||
| Bore×Stroke | 70×55 | 78×62 | 86×72 | 88×75 | 92×75 | 2*86×72 | 2*88×72 | |||||||
| Fuel Consumption rate g/kw/h | ≤295 | ≤295 | ≤280 | ≤280 | ≤280 | ≤268 | ≤268 | |||||||
| Fuel | 0# or -10# light diesel oil | |||||||||||||
| Lubrication Oil Volume (L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 | |||||||
| Combustion System | Direct Injection | |||||||||||||
| Packing | ||||||||||||||
| Dimention(LxWxH)(cm) | 66*48*55 | 70*48*59 | 70*47*60 | 70*47*60 | 70*47*60 | 88*65*89 | 88*65*89 | |||||||
| Net Weight(kgs) | 52 | 64 | 84 | 85 | 85 | 184 | 184 | |||||||
| 20FT loading pcs | 150 | 130 | 102 | 102 | 102 | 40 | 40 | |||||||
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.

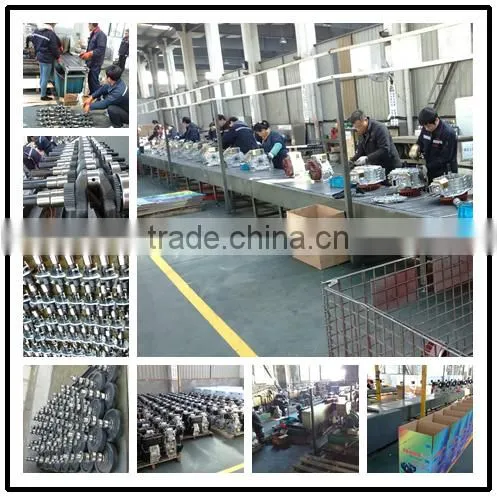

Company Show
Spare parts Testing

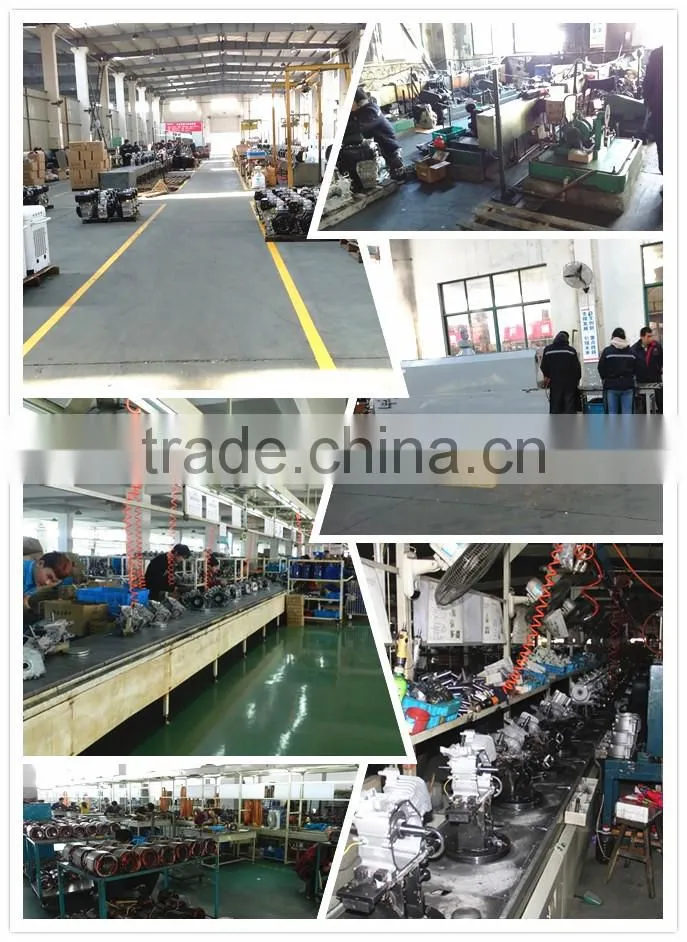

Production
Product Testing

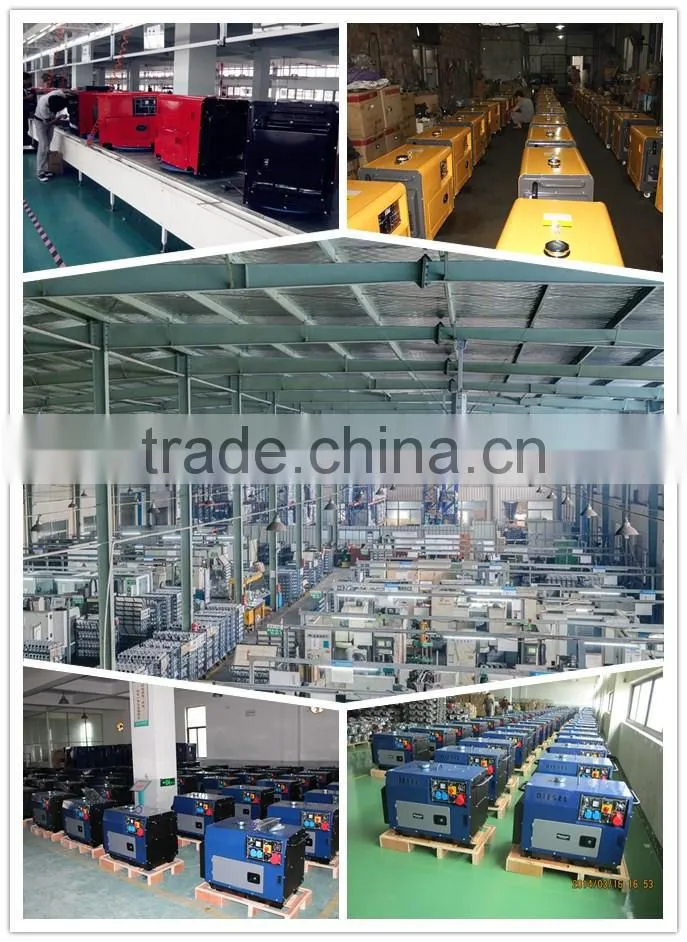

Warehouse

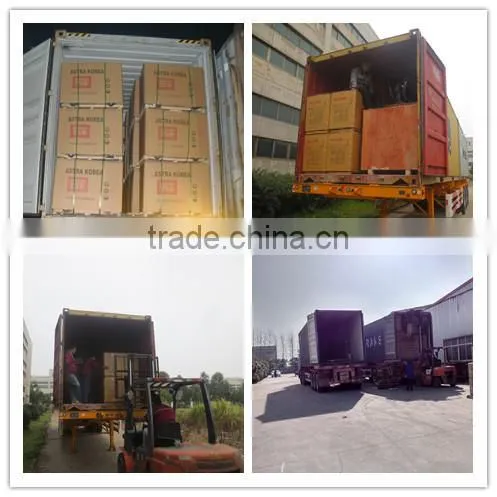

Loading
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 10 sets
3.Q: Are you manufactory or Trading Company?
A: We are trading company based on our own factory
in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand.
We have over 10 years OEM/ODM experience.
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
D/P for regular good reputation customers.
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 20-25days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Which engine type about your products?
A: 1-Cylinder;4-stroke,air-cooled diesel engine
10.Q: Is your rotor and stator aluminum wire or copper wire?
A: 100% copper
