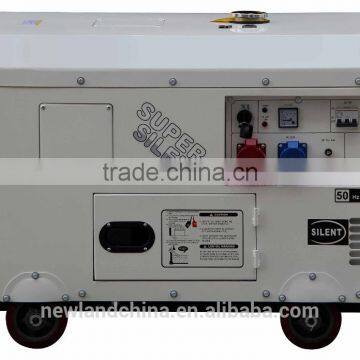

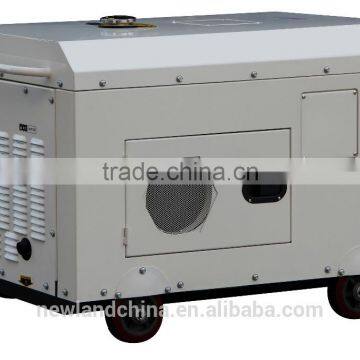

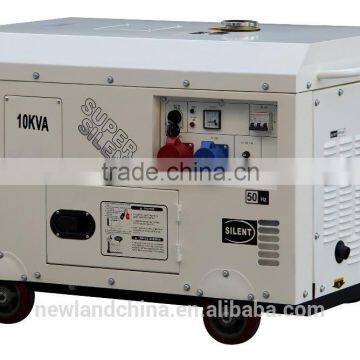

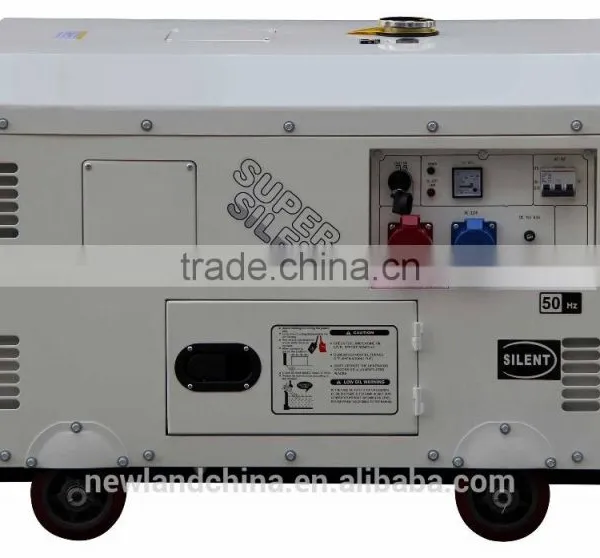

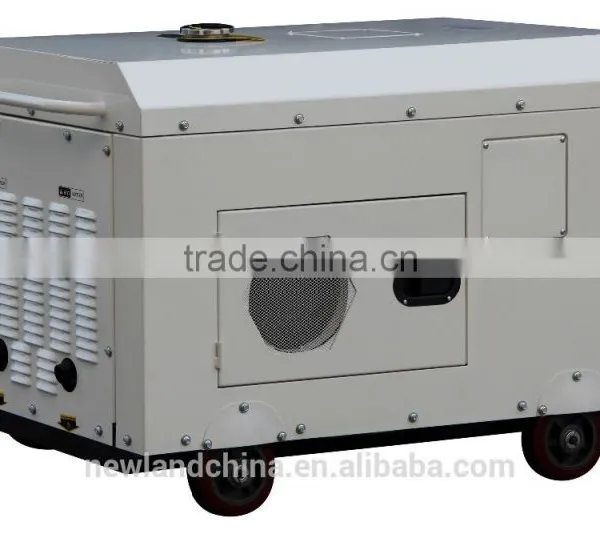

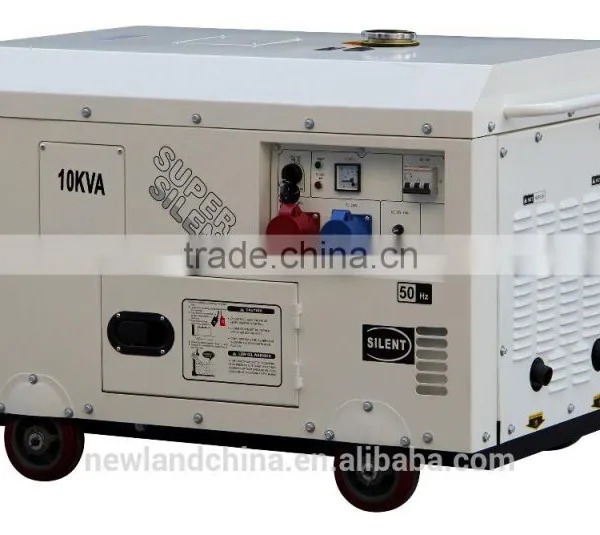

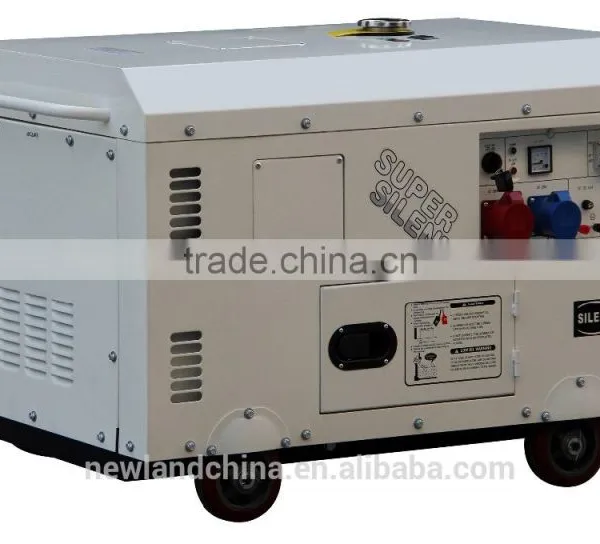

8.5kw 2 Cylider/2V86F Engine,220V380V Diesel Silent Generator With Electric Start
US$ 1,800 - 2,100
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NEWLAND
Model Number:
DG12000SE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5.5kw Super Silent Electric Star Diesel Generator With Factory PriceUS$ 450 - 580MOQ: 30 Sets -
Super Silient Air-cooled Diesel Generator 186FA Engine With 4.6/5kw Output Power With Factory PriceUS$ 440 - 550MOQ: 20 Sets
-
CE Approved 3kw Air-cooled Sound Proof Diesel Generator With Electric Start and Single PhaseUS$ 410 - 520MOQ: 30 Sets
-
100% Copper Wire 5KW Electric Start Sound Proof Diesel Generator With Welding FunctionUS$ 490 - 585MOQ: 30 Sets
-
5kw Honda Air-cooled Enigne Open Frame Diesel Generator Single PhaseUS$ 320 - 410MOQ: 50 Sets
Place of Origin
Zhejiang, China
Brand Name
NEWLAND
Model Number
DG12000SE
Output Type
AC Single Phase
Speed
3000/3600rpm
Frequency
50/60HZ
Rated Power
8.5KW
Rated Voltage
220V/240V
Rated Current
12V/8.3A
8.5kw 2 cylider/2V86F engine,220V380V diesel silent generator with electric start
Product Description
Product parameters
| electric start 2 cylider 220V380V diesel generators 10kw | |||||||||||
| DG4500SE-A/B/S | DG6500SE-A/B/S | DG7500SE-A/B/S | DG8500SE-A/B/S | DG12000SE | DG15000SE | ||||||
| GENERATOR | |||||||||||
| Frequency (HZ) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | |||||
| Max.output (KW) | 3.3/3.5 | 5/5.5 | 5.5/6 | 6.5/7 | 9/9.5 | 11/12 | |||||
| Rated output(KW) | 3/3.3 | 4.6/5 | 5/5.5 | 6/6.5 | 8.5/9 | 10/11 | |||||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380 | ||||||||||
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| DC output (V) | 12V/8.3A | ||||||||||
| Phase | Single Phase | ||||||||||
| Alternator Type | Self-excited,2-pole, Single alternator | Self-excited | |||||||||
| Starting System | electric | ||||||||||
| Noise Level (dB(A/7m) | 68-72 | 86dB | |||||||||
| Fuel Tank Capacity (L) | 16 | 16/30 | 30 | 30 | |||||||
| Continuous Running Time (hr) | 12.2/11.1 | 8.5/7.8 | 8.0/7.3 | 7.8/7.1 | 9.4/8.4 | 7.4/6.3 | |||||
| ENGINE | |||||||||||
| Engine Model | 178FA | 186FA | 188FA | 192FB | 2V86F | 2V92FB | |||||
| Engine Type | single-cylinder, vertical,4-stroke, air-cooled diesel engine | two-cylinder, vertical,4-stroke air-cooled diesel engine | |||||||||
| Bore×Stroke | 78×64 | 86×72 | 88×75 | 92×75 | 2*86×72 | 2*92×75 | |||||
| Fuel Consumption rate g/kw/h | ≤295 | ≤280 | 280 | ≤280 | ≤268 | ≤268 | |||||
| Fuel | 0# or -10# light diesel oil | ||||||||||
| Lubrication Oil Volume (L) | 1.65 | 1.7 | |||||||||
| Combustion System | Direct Injection | ||||||||||
| STANDARD FEATURES | |||||||||||

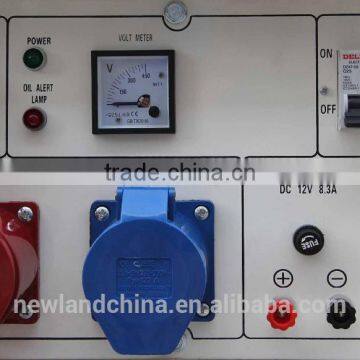

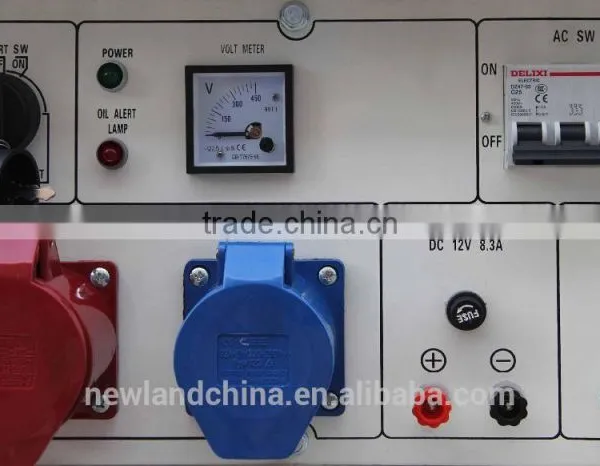

| Voltmeter | YES | ||||||||||
| AC Output Socket | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| AC Circuit Breaker | YES | YES | YES | YES | YES | YES | |||||
| Oil warning Light | YES | YES | YES | YES | YES | YES | |||||
| Oil Alert | YES | YES | YES | YES | YES | YES | |||||
| OPTIONAL FEATURES | |||||||||||
| DC circuit breaker | OPTIONAL | ||||||||||
| Four sides wheel | OPTIONAL | ||||||||||
| Three phase voltage | OPTIONAL | ||||||||||
| Digital meter | OPTIONAL | ||||||||||
| ATS | OPTIONAL | ||||||||||
| Remote control | OPTIONAL | ||||||||||
| Welding | OPTIONAL | ||||||||||
| PACKING | |||||||||||
| Dimention(LxWxH)(cm) | 85*56*76 | 95*56*76 | 95*56*76 | 95*56*76 | 123*75*84 | 123*75*84 | |||||
| Net Weight(kgs) | 144 | 155 | 156 | 156 | 265 | 265 | |||||
| Container quantity 20GP | 72 | 72 | 72 | 72 | 26 | 26 | |||||
| 40HQ | 144 | 144 | 144 | 144 | 52 | 52 | |||||
Similar Models
We lauch serious tests for the parts.
Packaging & Shipping
Company Information
About Us
Taizhou Newland Machinery Co., Ltd here, exports gasoline generator, diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years's export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become best choice for all customers.
