Shanghai Roll Forming Machinery Co., Ltd have developed high precision roll forming machine, Our production lines have good quality and reasonable price. most of our roll forming machine are used for auto parts and high quality frofiles manufacturing.
this roll former is special for the door bumper of the car.
Shaft dia.:50-75mm
Profile thickness range:0.3-3mm
running speed:0-30M/Min.

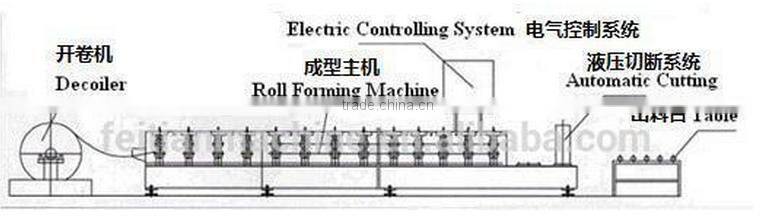

Working Flow Layout
This production line consists of flattener feeder, hydraulic press, roll forming mill straightener
and PLC system. The working method of this machine is mainly with paths of decoiler,
levelling and roll forming,then send the data to the computer by PLC. Then to do auto cutter
with the order set by the computer to match sizes of clients' requirements.
Components of Roll Forming Line
No. |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |
Entry Beach |
set |
1 |
3 |
Main Machine for roll forming |
set |
1 |
4 |
Cutting System |
set |
1 |
5 |

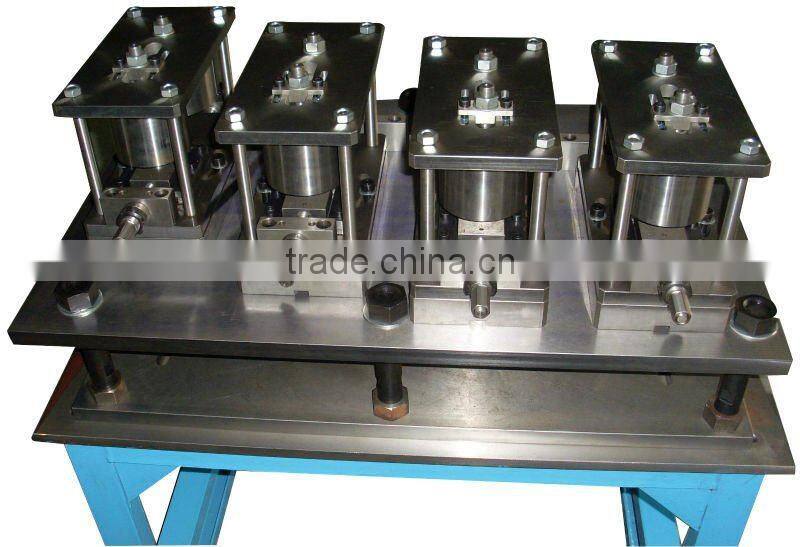

punching |
set |
1 |
6 |
Output Table |
set |
1 |
7 |
Control System(PLC) |
set |
1 |
8 |
Hydraulic Station |
set |
1 |

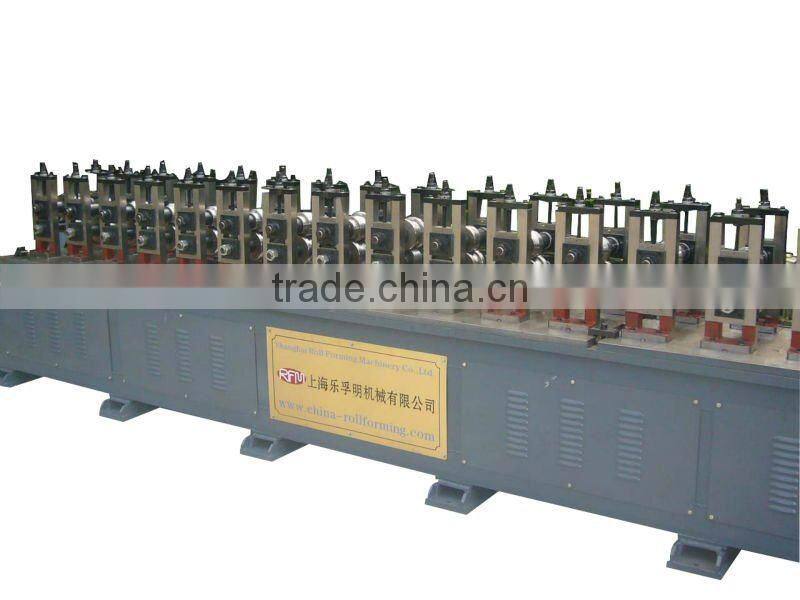

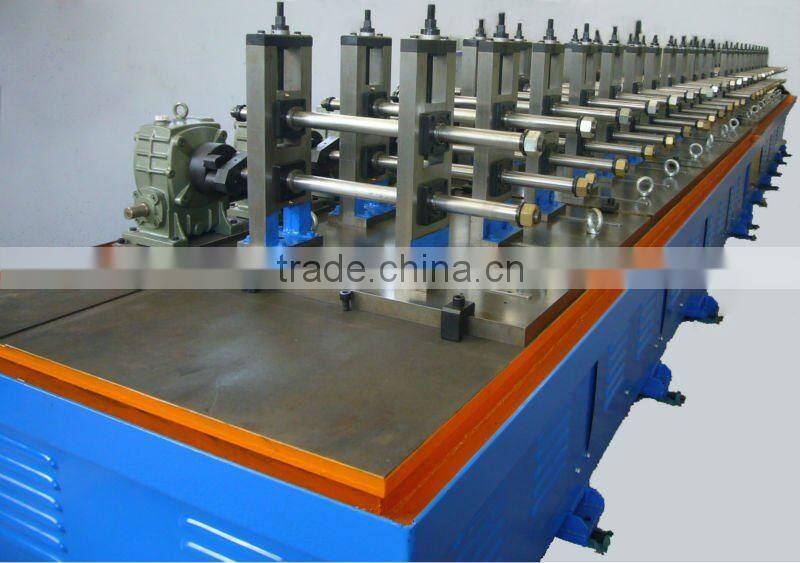

3. Product Show
THE SIGNIFICANCE OF ROLL FORMING
Roll forming is a forming process with rotary tool movement. During the roll forming process,
a flat strip of metal is formed through a number of station and is progressively shaped into
the desired form. Roll forming is a novel process of profile manufacturing. The major
advantages of roll forming are that nearly unlimited varieties of shapes can be achieved,
and high productivity that reduce the cost for customers.
Parameters
|
|||||||||||||||||||||||||||||||||||||||||||||
Roll forming process can works with following material:
Steel (as well as sa super high strength steel)
Luminum (all alloys)
Zinc galvanized steel
Cold-rolled steel
Hot-rolled steel
Stainless steel
Aluminized steel
Pre-coated steel
Copper
Brass

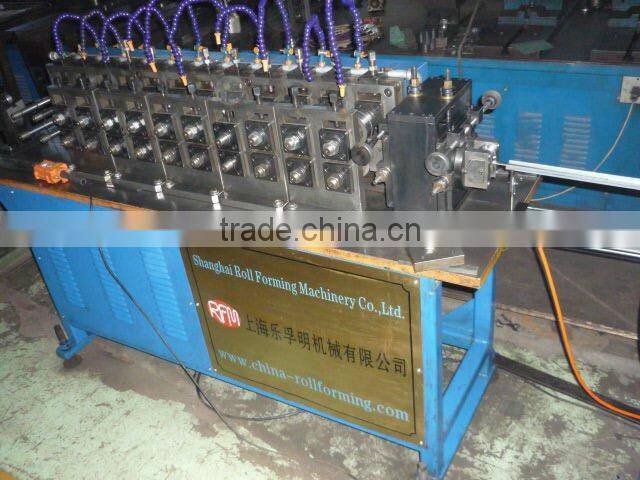

PRODUCTS DISPLAY:
our customers.
With take" QUALITY AND INTEGRITY ARE FIRST" and"CONCENTRATE ON CUSTOMERS'
REQUIREMENTS"as principle, we sincerely welcome all clients' visiting from home and
abroad.
