Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > 5 Years Warranty Agricultural Gearbox With Good After-sale Service

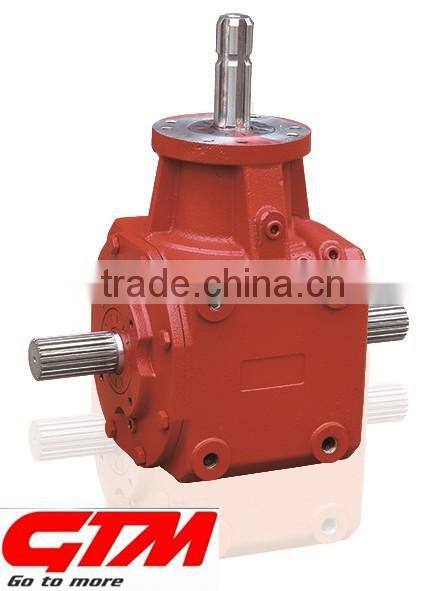

5 Years Warranty Agricultural Gearbox With Good After-sale Service

5 Years Warranty Agricultural Gearbox With Good After-sale Service thumbnail-3

5 Years Warranty Agricultural Gearbox With Good After-sale Service thumbnail-4

5 Years Warranty Agricultural Gearbox With Good After-sale Service thumbnail-5

5 Years Warranty Agricultural Gearbox With Good After-sale Service thumbnail-6

5 Years Warranty Agricultural Gearbox With Good After-sale Service photo-1

5 Years Warranty Agricultural Gearbox With Good After-sale Service photo-2

5 Years Warranty Agricultural Gearbox With Good After-sale Service photo-3

5 Years Warranty Agricultural Gearbox With Good After-sale Service photo-4

5 Years Warranty Agricultural Gearbox With Good After-sale Service photo-5

5 Years Warranty Agricultural Gearbox With Good After-sale Service photo-6

US$ 220 - 250 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GTM

Model Number:

AM290

Contact Supplier Request Quote Chat Now

Zhejiang Hongye Agricultural Equipment Science And Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GTM

Model Number AM290

Gearing Arrangement Bevel / Miter

Output Torque 1615Nm

Rated Power 60hp

Input Speed 540rpm

Output Speed 260rpm

Product Description

Product details

Ratio	2.07:1
Module	6.13
Input description	Key way shaft
Output description	spline shaft
Housing material	QT450
Shaft material	20CrMnTi
Horsing surface color	customized
Weight	40kg
Input torque	780Nm
Product Keywords	agricultural gearbox

Quality assurance:

5 years for quality assurance

ABOUT US

Zhejiang Hongye Agricultural Equipment Science and Technology LTD was established in 1995, located in economic development zone of Wenling city, southeast of China. Hongye commits itself to development, production, sales and service for transmission products. Its products include spiral and straight bevel gearbox, cylinder gear speed reducer, worm reducer, and transmission case etc, widely used in various fields as lawn mowers, grain transportation and storage equipments, rice harvesters, corn harvesters, rotary tillers, pesticide sprayers, fertilizer spreaders, potato harvester, post-hole diggers, snow-blowers, garden machines and oil exploitation fields, etc, with the annual quantity over 250,000pcs.

Factory manufacturing grain transporation gearbox

RG series agricultural rotary lawn mower gearbox

Long life-span agricultural short harvester reversing gearbox

agricultural grain auger gearbox with shafting fork

Certifications

security guaranteed 100%

Protect Your Payment, Secure Your Order

Type	Ratio	Output r.p.m	Power	Output torque N.m	Input r.p.m
AM290-1	1.47:1	367	70HP	1338	540
AM290-2	2.07:1	260	60HP	1615	540
AM290-3	1:3	1620	80HP	1040	540

FAQ

Are you trading company or manufacturer ?

We are manufacturer and also can export by ourselves.

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.

Do you provide samples ? Are your products as good as catalogue shows?

Yes, we could offer the sample as customer's request for certain charge as the drawing shows.

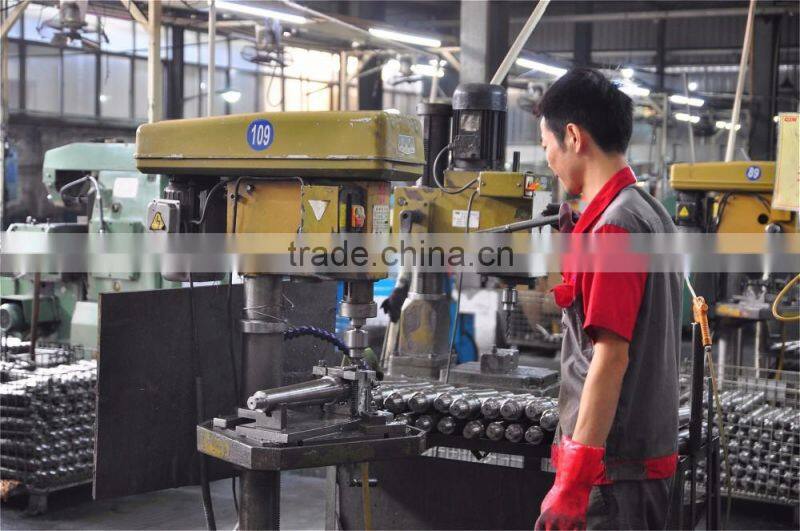

Our company has introduced advanced equipment,a series of high precision CNC,including Japanese Okuma CNC and other vertical and horizontal CNC. All products pass 100% the tests.

What is your terms of payment ?

Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.

Can you deal with OEM & ODM order?

Yes. Hongye offers our customers with customized services from drawings.

What info. need to provide when I need a quotation?

You'd better provide horsing drawing & assembly drawing with BOM so that we can quote a.s.a.p. Of course such elements as ratio,output rpm,output torque and power request also be neeed.
