US$ 220 - 250 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GTM
Model Number:
DK16
Contact Supplier Request Quote Chat Now
Zhejiang Hongye Agricultural Equipment Science And Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GTM
Model Number DK16
Gearing Arrangement Bevel / Miter
Output Torque 9-1000N.m
Rated Power 33HP
Input Speed 540rpm
Output Speed 15rpm



Quality and service first agricultural gearbox



Product Description

Product details

Housing Material HT250
Gear Shaft Material 20CrMnTi
Ratio 36.7:1
Input speed 540 rpm
Color Customer Requests
Backlash 0.25-0.46
Noise 70db-1meter
Power 33HP
Input torque 1.1-1.5NM
Output speed 15rpm
Product Keywords agricultural gearbox


Quality assurance:

5 years for quality assurance



Quality and service first agricultural gearboxQuality and service first agricultural gearboxQuality and service first agricultural gearboxQuality and service first agricultural gearbox

Company Information

ABOUT US

Zhejiang Hongye Agricultural Equipment Science and Technology LTD was established in 1995, located in economic development zone of Wenling city, southeast of China. Hongye commits itself to development, production, sales and service for transmission products. Its products include spiral and straight bevel gearbox, cylinder gear speed reducer, worm reducer, and transmission case etc, widely used in various fields as lawn mowers, grain transportation and storage equipments, rice harvesters, corn harvesters, rotary tillers, pesticide sprayers, fertilizer spreaders, potato harvester, post-hole diggers, snow-blowers, garden machines and oil exploitation fields, etc, with the annual quantity over 250,000pcs.

Quality and service first agricultural gearbox
Related Products
Quality and service first agricultural gearbox

Factory manufacturing grain transporation gearbox

Quality and service first agricultural gearbox

RG series agricultural rotary lawn mower gearbox

Quality and service first agricultural gearbox

Long life-span agricultural short harvester reversing gearbox

Quality and service first agricultural gearbox

agricultural grain auger gearbox with shafting fork



Certifications
Quality and service first agricultural gearbox

security guaranteed 100%

Protect Your Payment, Secure Your Order

Quality and service first agricultural gearbox

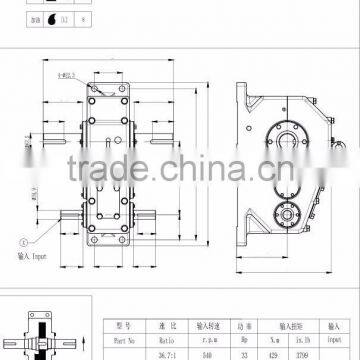

Type Ratio Output r.p.m Power Output torque
N.m
 Input r.p.m
DK16 36.7:1 15 33HP  9-1000 540



Packaging & Shipping



Quality and service first agricultural gearbox


FAQ

FAQ

01

Are you trading company or manufacturer ?

We are manufacturer and also can export by ourselves.



02

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.



03

Do you provide samples ? Are your products as good as catalogue shows?

Yes, we could offer the sample as customer's request for certain charge as the drawing shows.

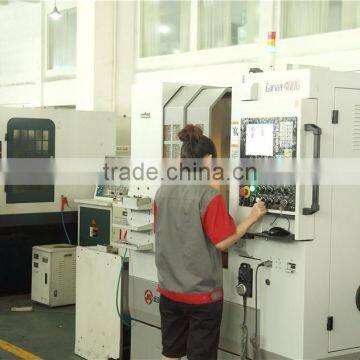

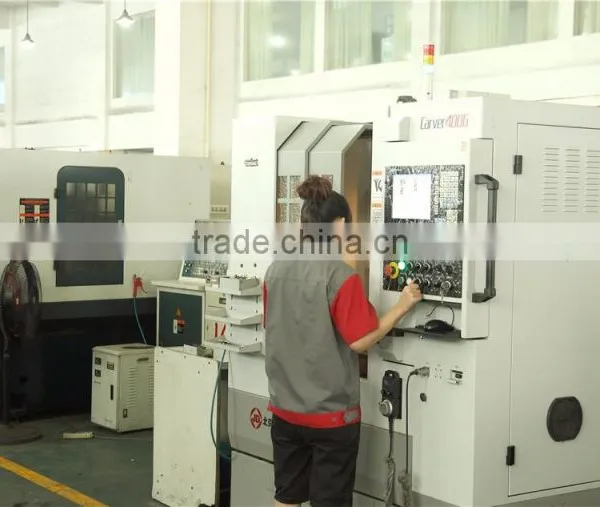

Our company has introduced advanced equipment,a series of high precision CNC,including Japanese Okuma CNC and other vertical and horizontal CNC. All products pass 100% the tests.



04

What is your terms of payment ?

Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.



05

Can you deal with OEM & ODM order?

Yes. Hongye offers our customers with customized services from drawings.



06

What info. need to provide when I need a quotation?

You'd better provide horsing drawing & assembly drawing with BOM so that we can quote a.s.a.p. Of course such elements as ratio,output rpm,output torque and power request also be neeed.
