Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > Specialist Manufacturers Gearbox for Agricultural Machinery

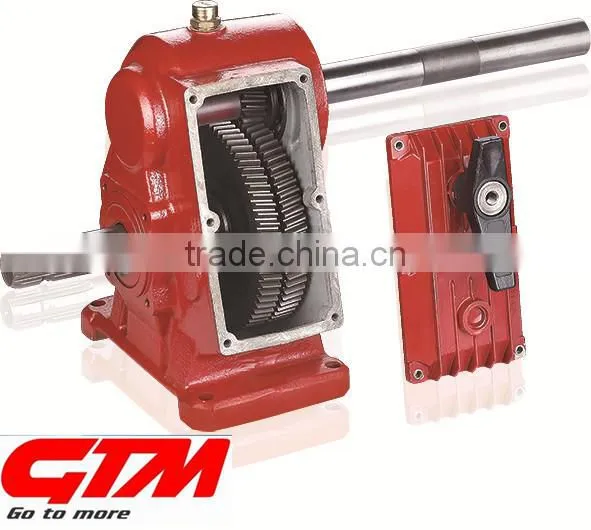

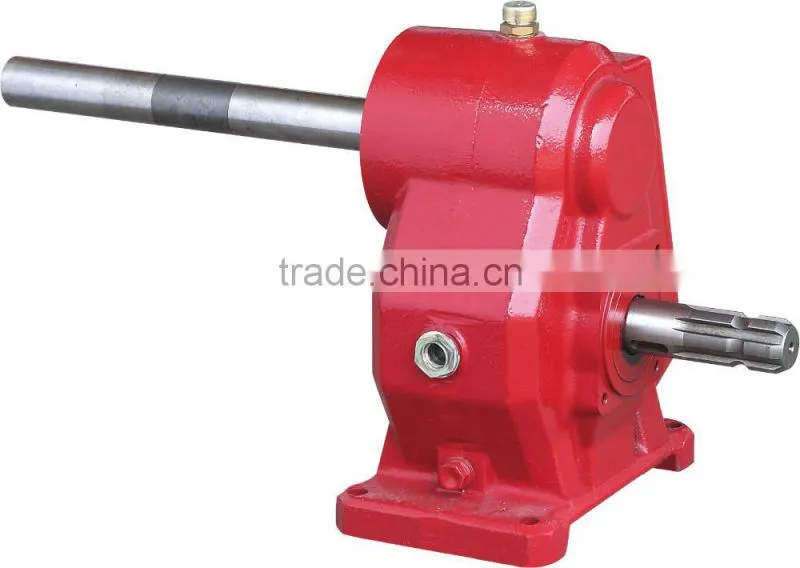

Specialist Manufacturers Gearbox for Agricultural Machinery

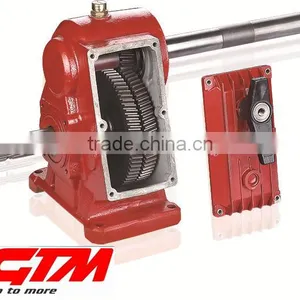

Specialist Manufacturers Gearbox for Agricultural Machinery thumbnail-3

Specialist Manufacturers Gearbox for Agricultural Machinery thumbnail-4

Specialist Manufacturers Gearbox for Agricultural Machinery thumbnail-5

Specialist Manufacturers Gearbox for Agricultural Machinery photo-1

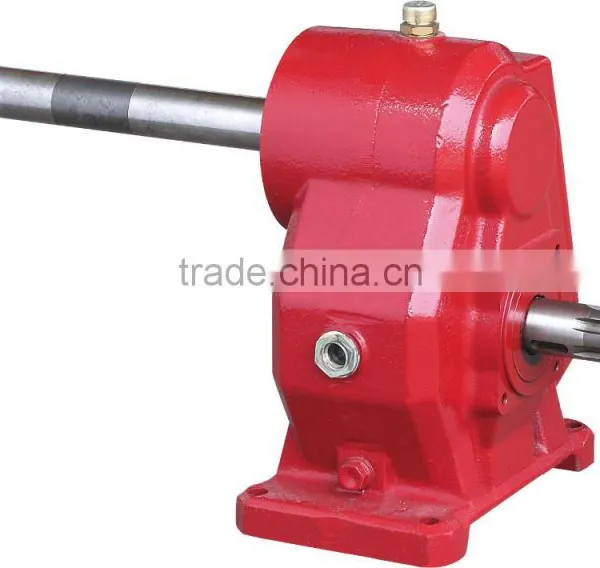

Specialist Manufacturers Gearbox for Agricultural Machinery photo-2

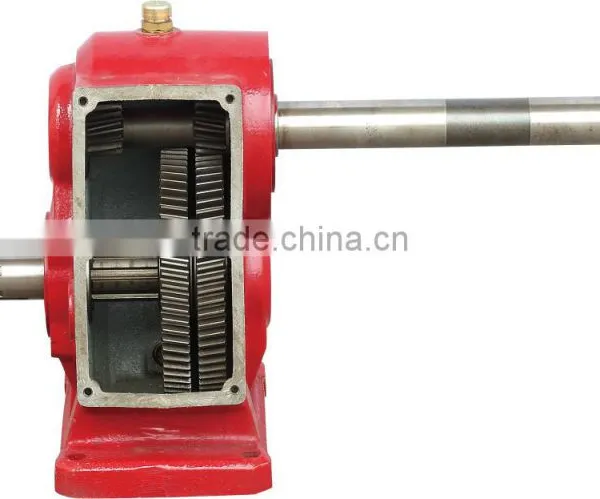

Specialist Manufacturers Gearbox for Agricultural Machinery photo-3

Specialist Manufacturers Gearbox for Agricultural Machinery photo-4

Specialist Manufacturers Gearbox for Agricultural Machinery photo-5

US$ 430 - 450 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GTM

Model Number:

M55

Contact Supplier Request Quote Chat Now

Zhejiang Hongye Agricultural Equipment Science And Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GTM

Model Number M55

Gearing Arrangement Bevel / Miter

Output Torque 228Nm

Rated Power 70hp

Input Speed 540rpm

Output Speed 2160rpm

Product Description

Product details

Ratio	1:4
Module	3.5
Input description	spline shaft
Output description	Key way shaft
Housing material	HT250
Shaft material	20CrMnTi
Horsing surface color	customized
Weight	52kg
Input torque	910Nm
Product Keywords	gearbox for agricultural machinery

Quality assurance:

5 years for quality assurance

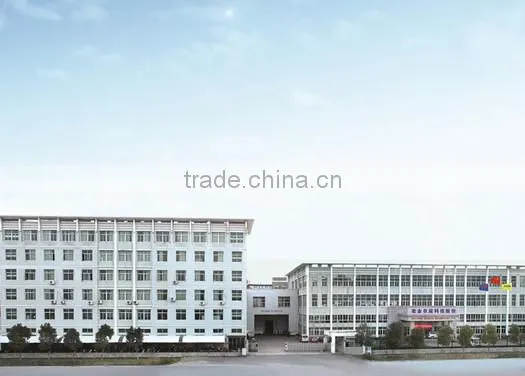

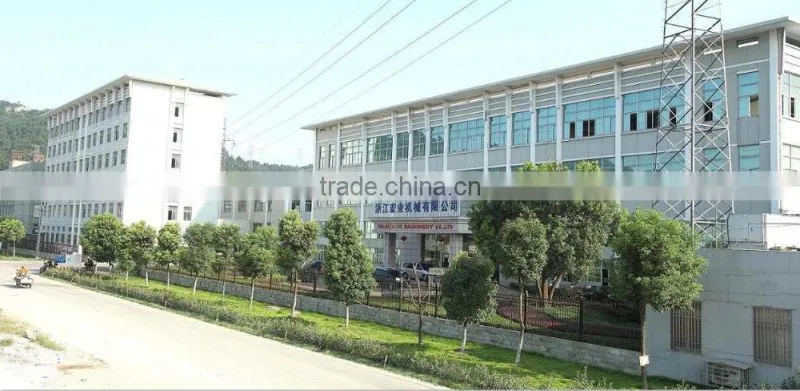

ABOUT US

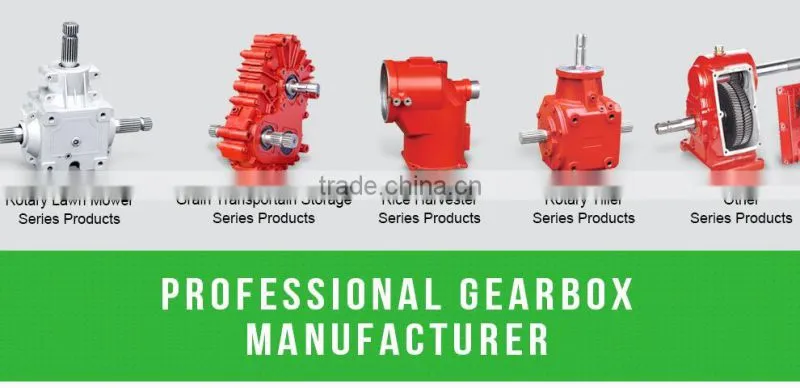

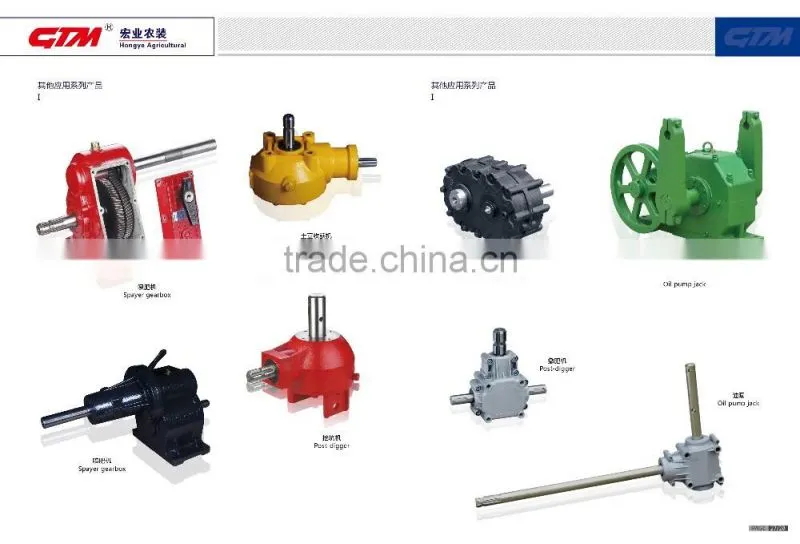

Zhejiang Hongye Agricultural Equipment Science and Technology LTD was established in 1995, located in economic development zone of Wenling city, southeast of China. Hongye commits itself to development, production, sales and service for transmission products. Its products include spiral and straight bevel gearbox, cylinder gear speed reducer, worm reducer, and transmission case etc, widely used in various fields as lawn mowers, grain transportation and storage equipments, rice harvesters, corn harvesters, rotary tillers, pesticide sprayers, fertilizer spreaders, potato harvester, post-hole diggers, snow-blowers, garden machines and oil exploitation fields, etc, with the annual quantity over 250,000pcs.

Factory manufacturing grain transporation gearbox

RG series agricultural rotary lawn mower gearbox

Long life-span agricultural short harvester reversing gearbox

agricultural grain auger gearbox with shafting fork

Certifications

security guaranteed 100%

Protect Your Payment, Secure Your Order

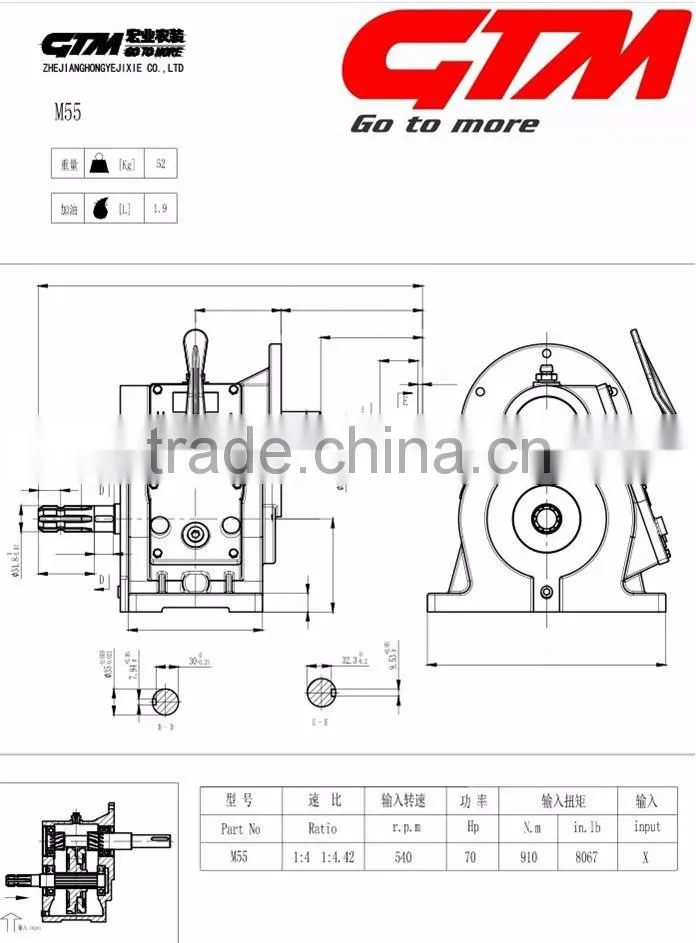

Type	Ratio	Output r.p.m	Power	Output torque N.m	Input r.p.m
M55	1:4	2160	70HP	228	540

Packaging & Shipping

FAQ

Are you trading company or manufacturer ?

We are manufacturer and also can export by ourselves.

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.

Do you provide samples ? Are your products as good as catalogue shows?

Yes, we could offer the sample as customer's request for certain charge as the drawing shows.
Our company has introduced advanced equipment,a series of high precision CNC,including Japanese Okuma CNC and other vertical and horizontal CNC. All products pass 100% the tests.

What is your terms of payment ?

Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.

Can you deal with OEM & ODM order?

Yes. Hongye offers our customers with customized services from drawings.

What info. need to provide when I need a quotation?

You'd better provide horsing drawing & assembly drawing with BOM so that we can quote a.s.a.p. Of course such elements as ratio,output rpm,output torque and power request also be neeed.

Mob:+86 15058639993
