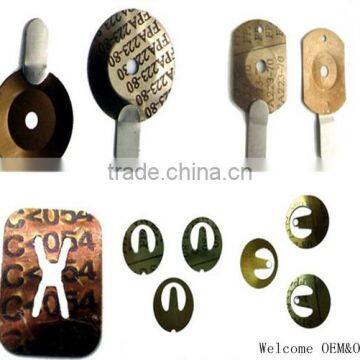

bimetal disc Is made of double metal processing, it may change with the temperature changes,
emperature rise, it will jump, so also called it "jump" here
bimetal disk is used to electronics industry ,The switch on the refrigerator, washing machine, etc,
it is to adjust the temperature to the temperature, can be used as a breaker, protector switch, in order to protect the security
Application: Microwave oven, air-conditioner, electric heater, coffee maker, water heater, dust cleaner, cooking oven, bath shower, washing and drying machine, etc.
Feature
bimetal thermostat disk, snap action, automatic reset type
Design:no bracket
Open temperature: 40oC to 210oC, allowed tolerance:+/-5oC
Rating:AC250V/10AAC125V/15AAC250/16A(some)
Insulative resistance:
a.Between terminal and out can≥100MΩ;
b.Between contact points when they are in open conditioan≥5MΩ.
Contact resistance≤50mΩ;
Electrical strength
a.It should be afford of such a test: Applying AC1500V between terminal and out
can for 1min, there should be no damage, or creeping action;
b. Applying AC660V between two contacts for 1min, there should be no damage,
or creeping action.
We also produce other products:
biemtal thermostat coil biemtal thermostat strip and so on
We will develop new design with your drawing or sample . Thanks for your time read our information .
