Themostatic bimetal types

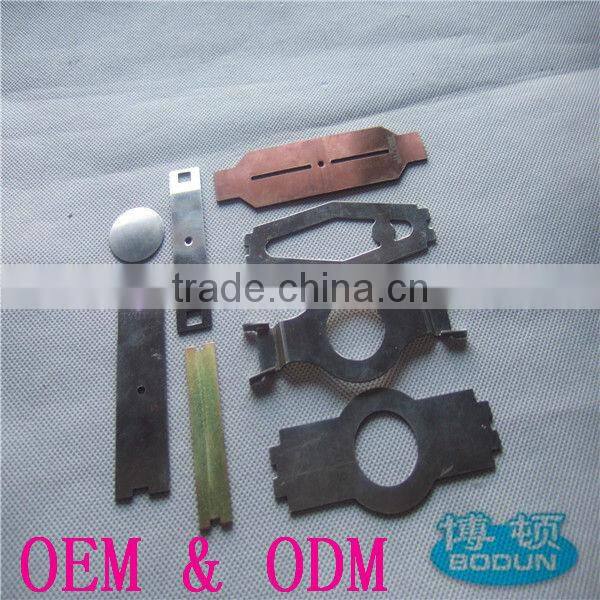

The type of thermostatic bimetal depends on the application and the available space. Elements can be roughly classified into four main groups:

Beams,

Coils,

Disks,

Formed elements.

Beams develop nearly linear motion. Coils (spiral, helical and double-helix coils) Disks move linearly or discontinuously (snap-action).

Formed elements include a wide range of regular or irregular shapes. The U-shape is very widespread. This type of element is employed when the available space will not permit the use of long, flat beams.

Generally speaking, coils are used wherever extensive motion is required, while beams are required for smaller movements to trip operating mechanisms.

some basic  mechanism of bimetal strip :

1.Simple temperature -controlled switch

This type of mechanism is usd for drect switching of an electrical circuit or a mechanical part. When current is passed directly through the element , slow contact motion may result in sparking between the contacts.

2.Counter-acting arrangements

Faster response and higher sensitivity reduces the risk of sparking between contacts in elements with direct electrical heating .

3.Auxiliary thermal switches

The thermostatic bimetal does not form part of the electrical circuit and responds solely to the ambient temperature .

4.Magnetic restraint

a permanent magnet resistrains deflection until the thermostatic bimetal had developed a force sufficient to overcome that of the magnet ,thus causing the contacts to spring parts . Conversely , the contacts close when the element has cooled down.

Thermostatic bimetal functions:

The effects of thermostatic bimetal curvature in response to a change in temperature are utilized in practical applications to achieve different aims. These can essentially be described by the following functions :measuring, limiting,controlling,compensation,pulse-generation,retardation.All these functions overlap to a certain extent so that a particular application may fall under several categories .

Measuring

Temperatures and certain electrical variables and their rate of change can be regulated by calibrated systems.

Examples:

Spiral thermometers, Ammeters

Limiting

Trip functions are required at certain upper or lower limits in order to initiate or to cut out an operation.

Examples :

Automatic circuit breakers

Motor protection switches

Controlling

Within a certain range,functions are cut in or out ,or circuits made or broken,in order to maintain a certain average setting.

Examples:

Electric iron controls, Bypass valves

Compensation

A deviation from the initial condition is compensated for by the thermostatic bimetal action.

Examples :

Color television tube compensation,Measuring instruments with compensation for fluctuations in ambient temperature.

Pulse-generation

An operation is triggered at clocked intervals.

Examples:

Flasher relays, Hotplate heating coils

Retardation

An incoming signal (e.g. current)will only trigger an operation after a defined delay period.

Example:

Thermal relay

Main Application:

  The main application of bimetal thermostat disc for heating chamber of silicon oil fan clutch lies in the sensitivity for temperature change.And also they can used as a switch in controlling devices in automobiles.

  Bimetal thermostat also can be manufactured as spiral and stripe which can give a snap action to temperature change.

Principle Of Operation:

  Bimetal thermostat consists of two or more metallic layers which have

different thermal expansion bended together.When heated up,it bends in a pre-determined manner and can be used to measure,regulate and control temperature.

  We can produce bimetal thermostat for any brand of cars.And also you can give us your own specifications,we can provide it according to your requirements.

Package information (3typle ):

disc

strip :

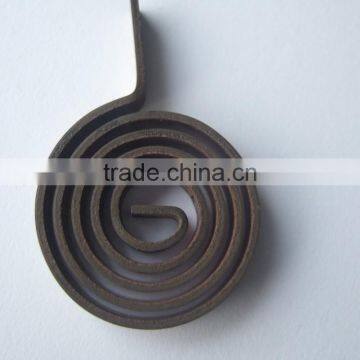

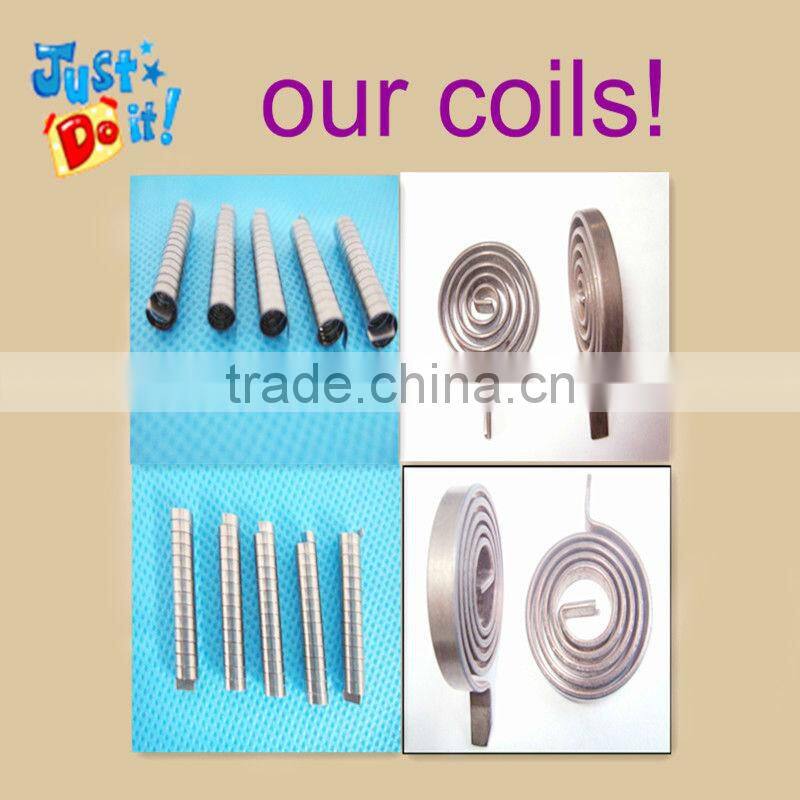

coils/helical coil
