Home > Industrial Equipment & Components > Compressor > Compressor Unit > Liquid Radiator Cooling System Round Aluminum Sight Glass (BSP G Thread & Metric Thread)
Liquid Radiator Cooling System Round Aluminum Sight Glass (BSP G Thread & Metric Thread)
US$ 0.68 - 10
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
grand-mfg
Place of Origin:
China
Model Number:
grand-mfg
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
45 days
Related Products
-
Aluninum Oil Level Sight Glasses OEM and ODM Service G3/4 InchUS$ 0.68 - 4MOQ: 500 Pieces -
BSP Blower Aluminum Oil Sight Glass G3/8\" G1/2\" G3/4\" G1\"US$ 0.68 - 4MOQ: 500 Pieces
-
Aluninum Blower Oil Level Sight Glasses OEM and ODM Service G1/2 3/8 3/4US$ 0.68 - 4MOQ: 500 Pieces
-
BSP G11/4 Compressor Speed Reducers Aluminum Liquid Oil Level Sight Glass ManufacturerUS$ 0.68 - 10MOQ: 1000 Pieces
-
BSP G Thread Round Aluminum Oil Sight Glass for Bizter With Flat Tempered GlassUS$ 0.68 - 10MOQ: 1000 Pieces
Brand Name
grand-mfg
Place of Origin
China
Model Number
grand-mfg
Certification
ISO9001
After-sales Service Provided
No overseas service provided
Warranty
grand-mfg
Weight
100G
Condition
New
Mute
Yes
Lubrication Style
Lubricated
Power Source
Diesel
Configuration
Other, accessory
| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |

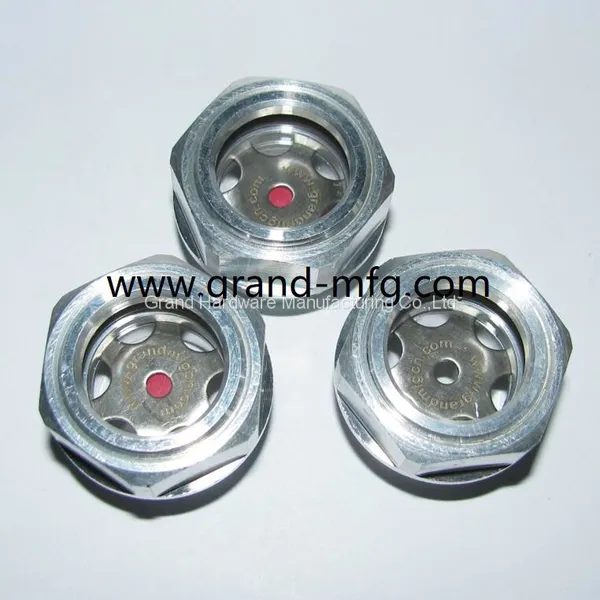

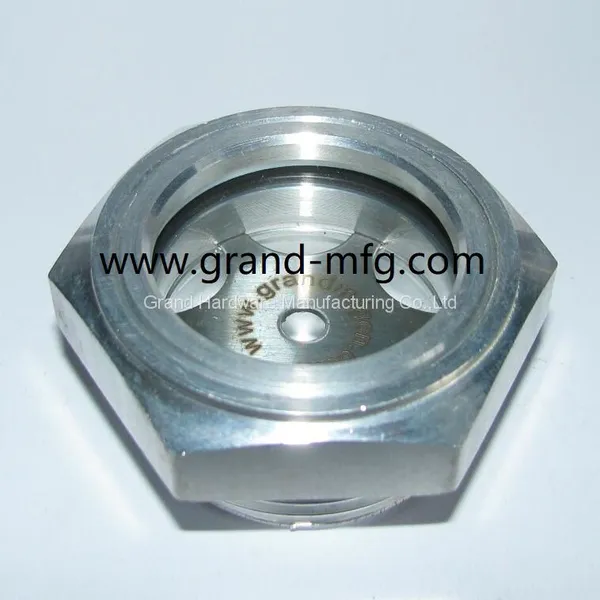

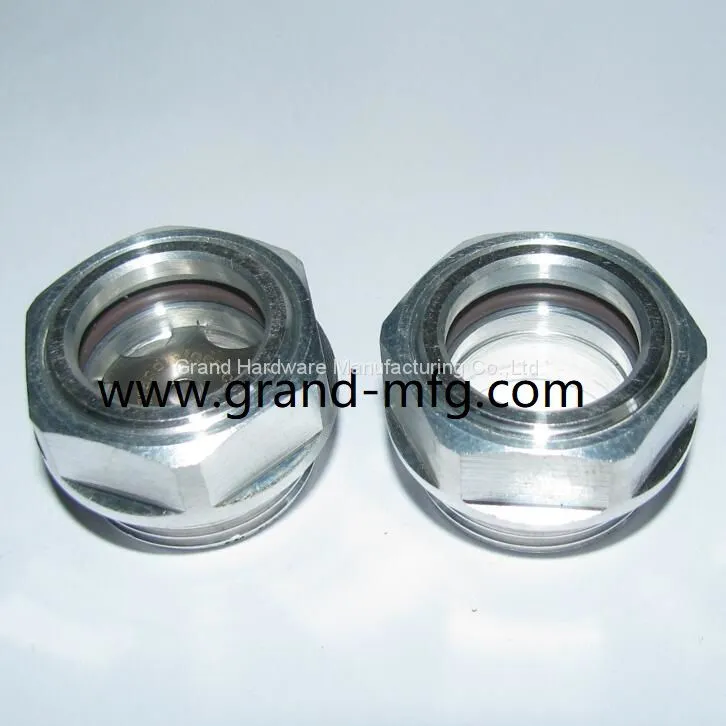

Aluminum Oil Sight Glass, Oil Level Indicator. Aluminum oil level gauge
Project Equipment offers valves, pipes, tubes, pipe fittings, etc.
The Aluminum Body Sight Glass or Oil level Indicator is provided with heat and oil resistance Viton rubber
It is capable of withstanding temperature of up to 120 degree C.
This Oil Level Indicator is used in all kinds of gear box, pumps, compressors, gear motor, hoists, hydraulic and pneumatic systems.
This Aluminum Body Sight Glass or Oil level Indicator is available in 1/4, 3/8, 3/4, 1 1/4, 1/2, 1 and 1 1/2 inches BSP,M10 to M48, Npt thread is available.
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2009
Factory Size
Below 1,000 square meters
Annual Export Value
US$1 Million - US$1.5 Million
