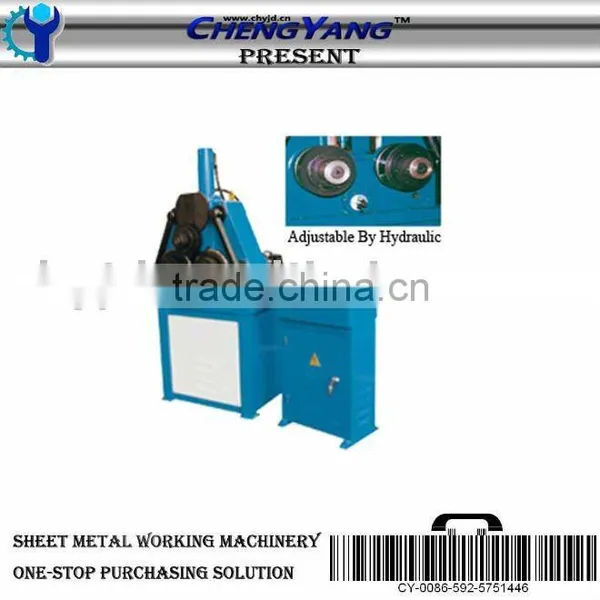

Hydraulic Pipe Bending Machine W24-500

Hydraulic Pipe Bending Machine W24-500 thumbnail-1
Hydraulic Pipe Bending Machine W24-500 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
HKR
Model Number:
W24Y-500
Contact Supplier Request Quote Chat Now
Xiamen Chengyang Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name HKR
Model Number W24Y-500



Pipe Bender Machine

Features:

  • Heavy duty steel fabricated frame
  • Hydraulic control adjustment of top roller
  • Adjustable side support guide rolls
  • Standard flat & angle rolls are included

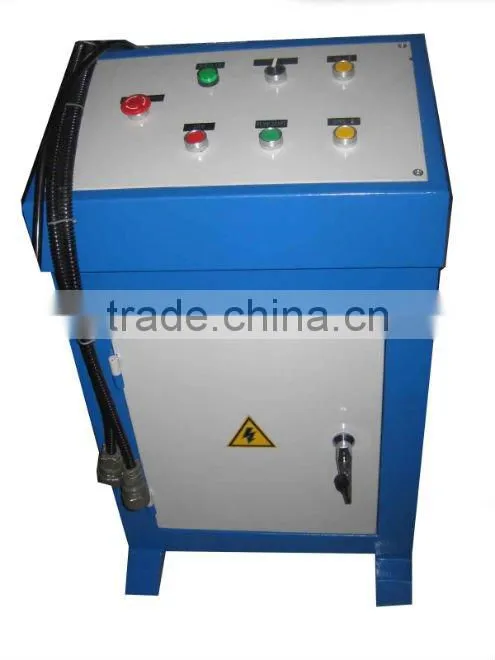

  • Roving electrical box control with forward/reverse
  • Two bottom rollers are powered

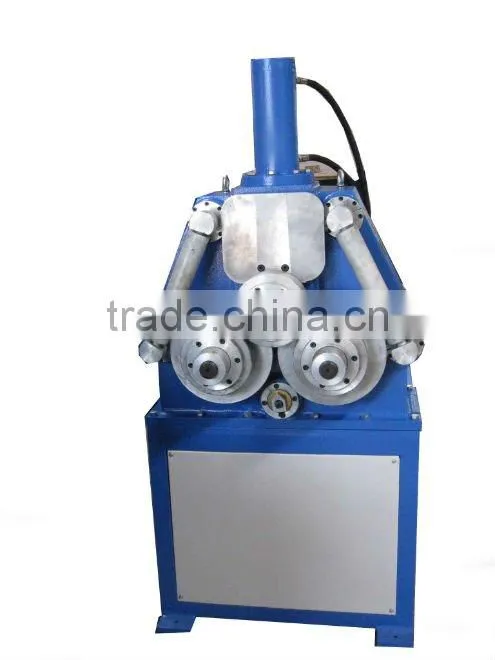

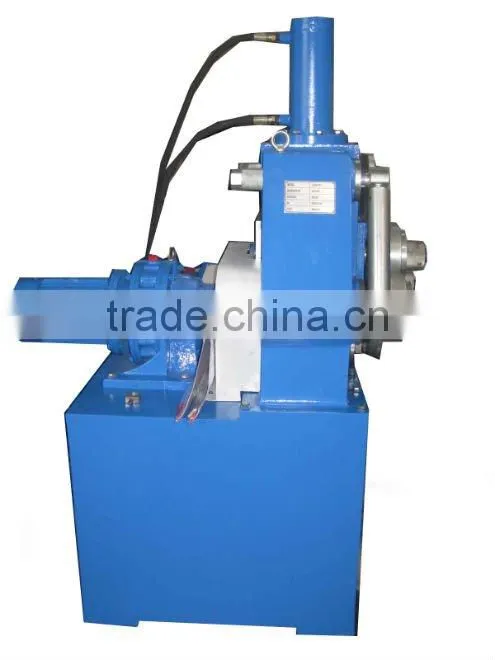

Machine Pictures:



Hydraulic Pipe Bending Machine W24-500Hydraulic Pipe Bending Machine W24-500Hydraulic Pipe Bending Machine W24-500



Main Technology Parameter:



Model

                              W24Y-500

Dimension

L.                              mm

1250

W.                            mm

770

H.                             mm

1650

Weight                                          kg

820

Main Motor                                    kg

2.2/2.2



                                                               Capacity

                      Material

W24Y-500





Flats, Hard Way

Max. Size:    80 x8

Min ID:       Ø800

Flats, Easy Way

Max. Size:    63 x 12

Min ID:       Ø750

Square Bar

Max. Size:    40×40

Min ID:       Ø800

Angle, Leg-out

Max. Size:    50 x 50 x 4

Min ID:       Ø550

Channel, Leg-out

Max. Size:    63 x 47 x 4.8

Min ID:       Ø1200

Round Bar

Max. Size:    Ø45

Min ID:       Ø1200

Round Tube

Max. Size:    Ø63 x 2

Min ID:       Ø750

Square Tube

Max. Size:    50 x50×2

Min ID:       Ø750

Rect. Tube Hard Way

Max. Size:    25 x 65 x 1.5

Min ID:       Ø800
