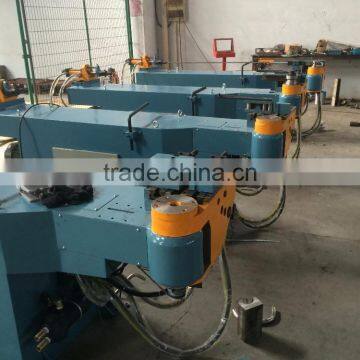

Semi-Auto Hydraulic pipe bending machine
1. Bend-arm (C-axis) by hydraulic, clamp die by hydraulic, pressure die by hydraulic.
2. With tube mechanical stopper, automatic mandrel lubrication, anticipated mandrel retraction unit.
3. Anticipated mandrel retraction unit. It adops imported special control system. With high stability.
4. Automatic bending tube, manual feeding tube and manual angle rotating.
5. Water-cool system.
6. Foot pedal for safe start.
7. The processing speed is fast and its procession is high. It is suitable for high speed.
8. It has functions of manual, inching, auto, setting, changing-program, single step, and so on.
9. It is a NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe bender.
10. Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete functions of hand-Operated, inching, quote setting, changing-program.
11. CE, ISO9001 Certification.
Item Name Data
1 Max bending capacity Φ89 mm×6 mm
2 Max bending radius R350mm Can according to customer’s requirement
3 Min bending radius R30mm
4 Standard Mandrel Length 3000mm Can according to customer’s requirement
5 Max bending degree 190 Degree
6 Control Panel PLC
8 Bending unit 16 Pieces
9 Bending Accuracy ±0.1 mm
10 Oil motor power 11 Kw
11 Max pressure 14 MPa
12 Hydraulic control system Magnetic exchange valve Japan Yuken
13 Oil tank 260 L
14 Machine weight 3500 Kg
15 Machine size 4400×1300×1200 mm
