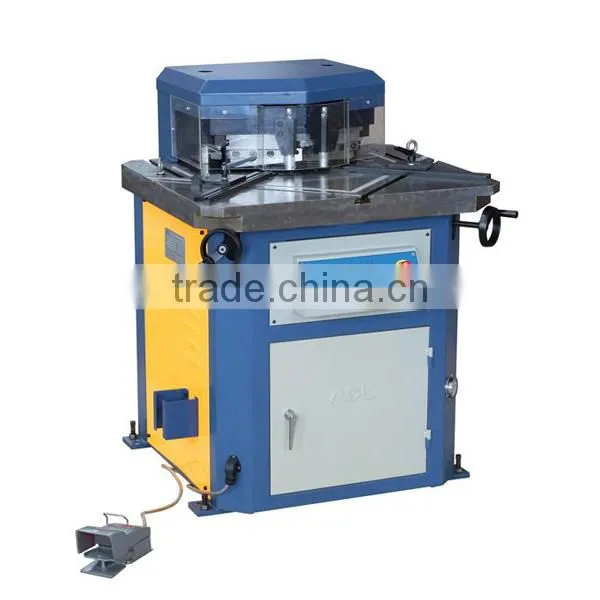

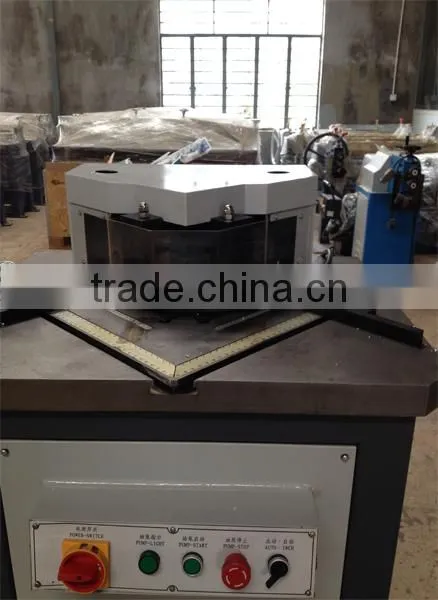

Q28A-4*250 Fixed Angle Hydraulic Corner Notcher Machine
Features
l Hydraulic driven notcher with a cutting capacity of 250 x 250 x 4mm mild steel sheet metal and 250 x 250 x 2mm in stainless steel.
l Notching angle fixes in 90ºwith high notching speed, compact structure, small volume and convenient operation.
l A transparent safety blade guard enables scribed lines to be quickly and accurately lined to cutting blade
l Adjustable material stops and guides on both sides of the cutting blade.
l Roving foot pedal controls cutting action that incorporates a pedestal emergency stop
l Heavy constructed cast iron working table
l Scrap material is ejected out form rear of machine
|
Model Item |
Q28A-4×250 |
||
Notch Length mm |
250×250 |
||
Cutting Thickness |
Mild Steel mm |
0.5~4.0 |
|
Stainless Steel mm |
0.5~2.0 |
||
Notch angle º |
90º |
||
Dimension |
L. mm |
700 |
|
W. mm |
900 |
||
H. mm |
1050 |
||
Weight Kg |
680 |
||
Main Motor KW |
3 |
||
Company Certificate

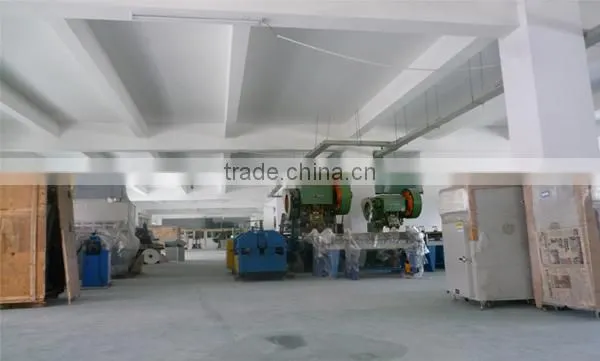

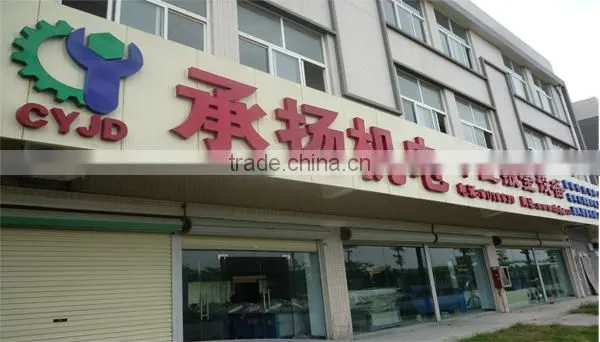

Company Environment
