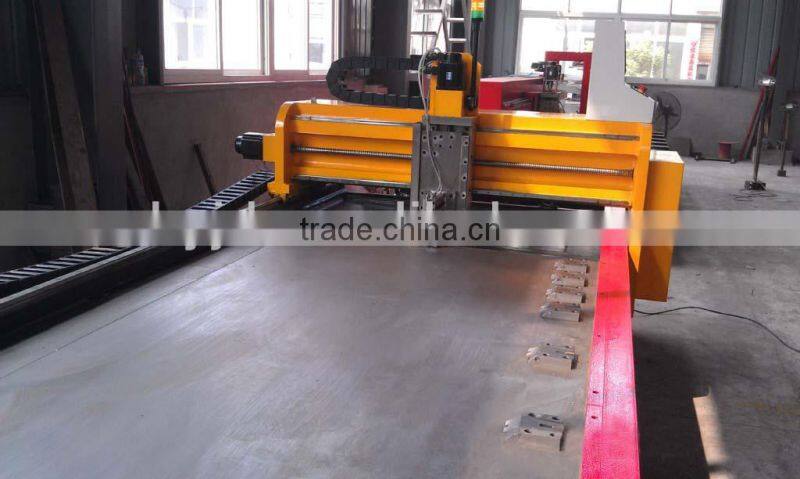

Large supply D series High speed CNC sheet slotting machine
(High efficiency, economy, simple operation)
One. Mechanical characteristics:
1.The overall use of frame structure design, increasing the mechanical rigidity, reduce the surface deformation.
2.The base level, the beam through the rack and pinion drive, speed can be arbitrarily transform, smooth cutting, machining of V groove bright flat.

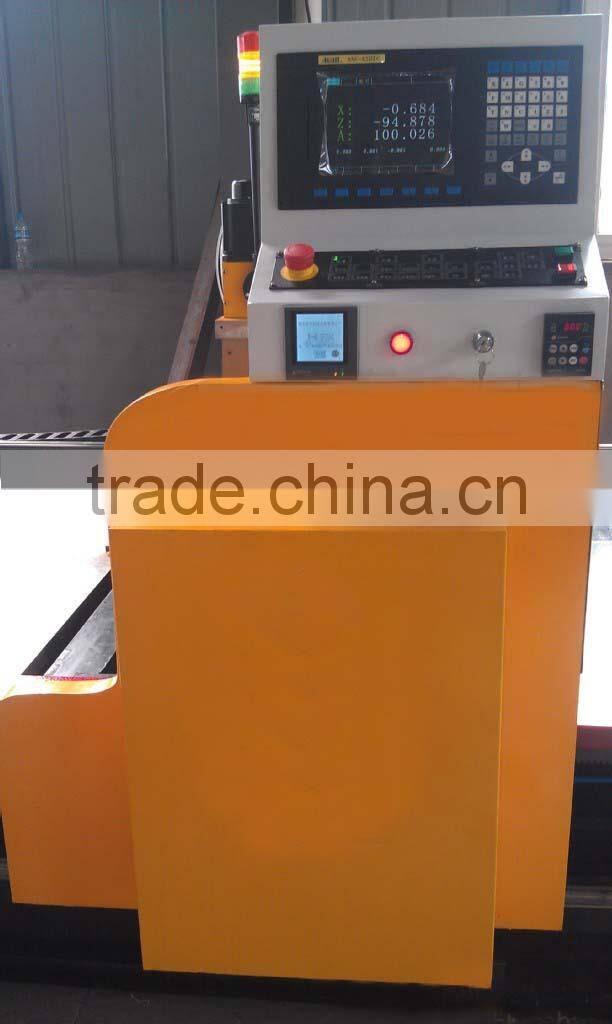

3.The CNC control device for the X axis, Z axis, A axis three NC axes control, high precision, large processing range.
4.This machine is respectively provided with a side pressing and pressing device. And the use of pneumatic pressing, pressing pressure adjustable pressure, reliable, simple and universal.
Two. Main technical parameters
1.Plate notching width: 1220 mm
2.Plate notching maximum length: 4000 mm
3.Plate notching maximum thickness: 4mm
4.Plate notching minimum thickness: 0.8 mm
5.V type slot while the smallest distance: 8 mm
6.Movable beam (spindle) maximum distance: 4100 mm
7.Beam forward (spindle) cutting speed:fastest: 40 m/min
8. After the shift speed beam:fastest: 50 m/min
9.Rest and move around the maximum distance (Z axis): 1220 mm
10. The small presser foot or so (A axis) and the end pressure (A axis) movement speed: fastest: 20 m/min
11.Turret move around (Z axis) resolution: 0.001 mm
12. Knife moves up and down (X axis) maximum distance: 100 mm
13.Knife moves up and down (X axis) speed: fastest: 20 m/min
14. Knife moves up and down (X axis) resolution: 0.001 mm
15.Movable beam power of main motor: 5.5 KW
16. The small presser foot (A axis) and the end pressure (Z axis) mobile servo motor power: 1 KW
17.Under the knife (X axis) mobile servo motor power: 1 KW
18. Pneumatic system working pressure: 5~7MPa
19. Pneumatic system working pressure: 7000 Kg
20. Overall dimension (length * width * height): 6000×2360×1600 (mm)
Three.Equipment installation commissioning
1.Personnel to on-site installation,commissioning and training.
2. Planing Table 1 times, in order to achieve optimal level of processing equipment.
Four. after-sale service
1.Three days to reach the customer site
2.Special circumstances, extended to 3 days (irresistible things -- earthquake etc)

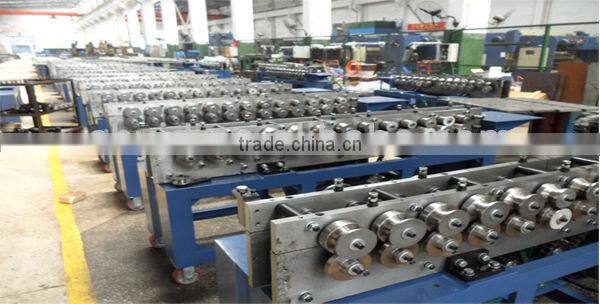

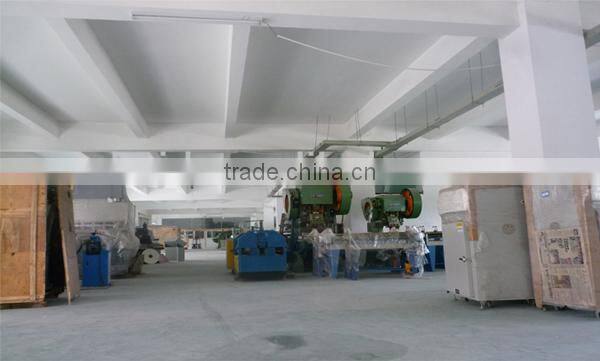

Corner for our company
