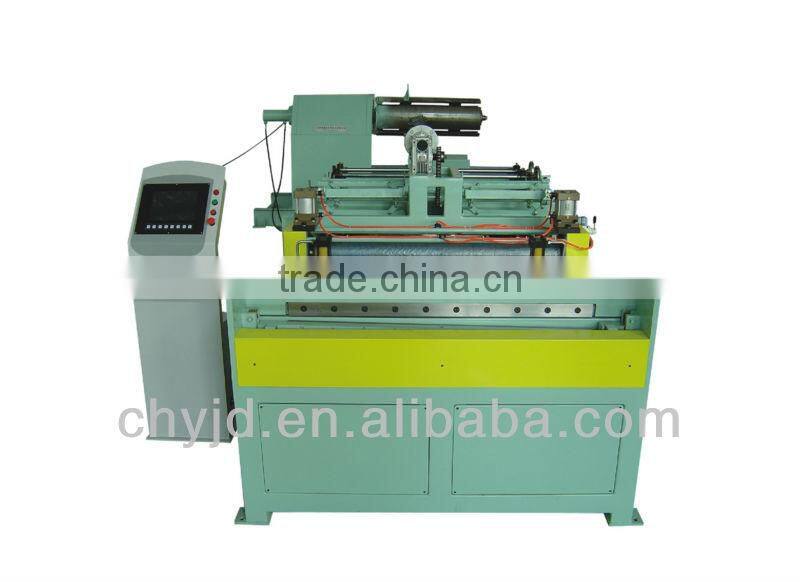

Name: Auto Leveling and Cut to Length Line 1
I. Basic information:
1. Auto leveling and cut to length line 1 consists of hydraulic material loading car, a hydraulic tensioning
decoiler, 11 leveling rollers device, hydraulic shearing and CNC system. With the features of high
precision and automation, straightening of good quality, stable performance and easy for maintenance.
This machine is suitable for the coiling, cutting and straightening of the steel fire door factory, wall
panel, cold storage board, metal furniture, electrical cabinets manufacturers.
2. Max feeding speed is 35m/min. Length tolerance is ±0.5mm and diagonal tolerance is ±0.8mm.
3. Optional laminating, cutting edge device and auto stacking system.

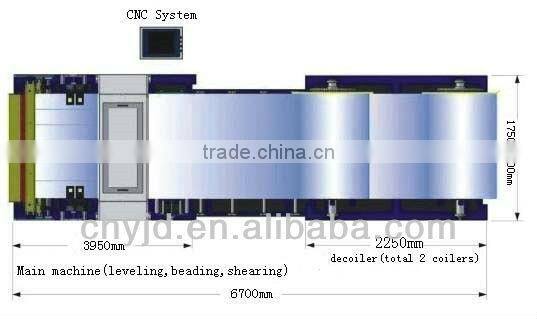

II. Basic configuration (Auto Leveling and Cut to Length Line 1) :
1. A 8 tons of hydraulic decoiler
2. A hydraulic loading car
3. A main machine
4. A CNC system
5. Optional auto stacking system
6. Optional laminating device
III. Main technical data:
|
Model |
Capacity in mild-steel thickness range(mm) |
Max-width (standard) (mm) |
Max-working speed (m/min) |
Coiler max-weight(Kg) |
Dimensions (mm) |
Power (Kw) |
Weight (Kg) |
||
L |
W |
H |
|||||||
ADL-1-1250 |
0.3-1.5 |
1250 |
20 |
8000 |
1980 3400 |
1850 1500 |
1400 1800 |
14 |
6500 |
ADL-1-1530 |
0.3-1.5 |
1530 |
20 |
8000 |
1980 3700 |
2200 1500 |
1400 1800 |
15 |
10000 |
IV. The main function for Auto Leveling and Cut to Length Line 1
