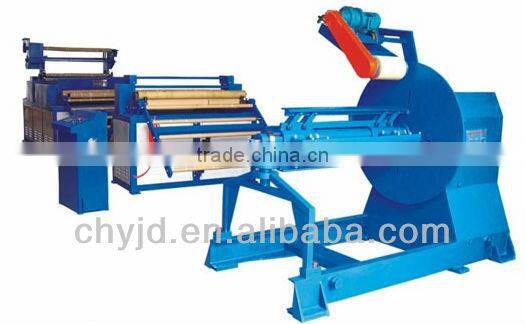

Newest decoiling and straightening machine Model: HCP-1300J
Description:
The line is used for different roll bending. It gets a flat plate of requirement width and length after decoiing,
leveling and cutting. It is combined with feeding shelf, decoiller, leveling, transporter, guiding device
set-to- length device, plastic-cover device, shearing machine, transporting table. Equipped with auto
length-control and auto cutting. The length can be set automatically or manually with precision and
productivity. It is computer controlled with electrical, hydraulic and air-operated machine. The machine
features in continence, high productivity and precision. It is used to process kinds of metal plate, such
as cold rolled plate, hot rolled plate and stainless steel, widely used in automotive, agricultural vehicles,
containers, household appliances, building materials, processing and packaging industry.
Firstly, brief introduction and parameter:
Our company produces the Numerical Control Newest Decoiler and Leveler Line, is to decoil the steel plate
after adjusted, it can be controlled by manual and automatic control. When operating the machine by manual,
you can press the enter and back board (speed adjustable), and the shear the plate by manual; While when
the machine works automatically, can set it up, when it activate, the machine will shear the plate automatically
according to choice of the order (shear according to set way of working can continuous shearing, also can
shear one by one).
Secondly, Parameter:
1,Specification of the material
Raw material:cold roll plate;
Thickness of the plate:0.4~1.2mm;
Width of the plate:400~1250mm;
Max. weight of the cold roll plate:10t
Inner disc dimension of the roll plate: 450~550 mm;
Max. external diameter of the roll plate:1600 mm;
2,Technical parameters:
Decoilering precision(based on 1m length):lengthwise:±0.5mm;diagonal: ±0.8mm;
Max. leveling speed:13m/min;
Motor:≤20KW.
3,Supplier of the electrical equipments:
Frequency converter:Fuji
Coder:Japan TOKYO
PLC,touch screen:Japanese Panasonic , Fuji
Thirdly, main equipments and the processing
It is constructed by feeding equipment uncoiling part, placing bridge, leveling, numerical control, scale part,
hydraulic shear feeding part.
The production process:
1, feeding: with a crane or forklift will roll decoiler sheet metal transported to the place, and then send into
a nitrogen-treated barrel along, make the material of roll into the rack cylinder, hand operated rack up
tight institutions, the material when tight in the feeder, remove forklift or a crane in before the uncoiler auxiliary
support agency turned to for support.
2, open-book feeding: artificial remove coil material with the strapping, assisted feeding volume will
material into levelling device of traction roller, up and down in feeder spindle motor drive by.
3, the leveling, numerical control, scale: the point start feeding the leveling machine, make sheet into
the leveling of the part. Part of the leveling by two roller traction feeding, 13 roller leveling (surface),
largest hard chromium plating linear 13 m/min. NC feed unit by CNC systems, feed length detection
device component, PLC control, use of imported touch screen man-machine interface, as set
parameters, working and control the whole machine working; Chooses import PLC as the central
controller, the control logic of the leveling of action, the motor inverter control the import.
4 shear part: when plank length in the numerical control, transport by si series, feed roller sends a signal to stop
rotating, and then complete the constant long shear. Cutting machine adopts hydraulic drive, mechanical spring
pressure material.
