Home > Transportation > Forklifts & Parts > Forklift > Side Forklift 5 Tons

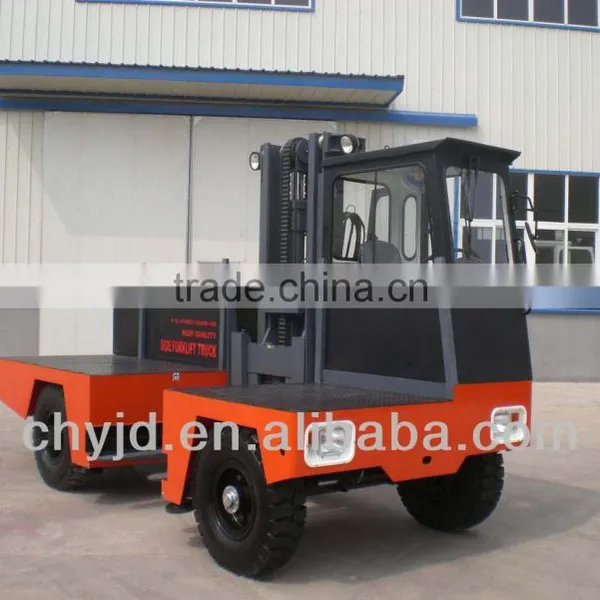

Side Forklift 5 Tons

Name: Side Forklift 5 Tons
Brand: CHENGYANG
SKU: 143406850

US$ 38,000 - 40,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Fujian, China

Brand Name:

CHENGYANG

Contact Supplier Request Quote Chat Now

Xiamen Chengyang Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Fujian, China

Brand Name CHENGYANG

Model Number CCCD-5

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 5 tons

Max. Lifting Height 3550mm

Min. Lifting Height 0mm

Fork Length 1200mm

Fork Width 65mm

Overall Dimensions 4712*2065*2800mm

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

MODEL: CCCD-5

Model	CCCD-5
Code	M5D
Max.lift capacity/CG of cargo (kg/mm)	5000/600
Max. lift height(laden) (mm)	3550
Max. lift speed (laden) (m/s)	≥0.3
Max. traveling speed (laden)(km/h)	25.5
Fork tilt anger (front/rear)	5/3
Minimum turning radius (mm)	4550
Gradability (laden)(%)	≥20
Minimum ground clearance (laden)(mm)	180
Platform height (mm)	990
Platform width (mm)	1220
Fork length (mm)	1200
Max.fork spacing (mm)	1012
Axle spacing (mm)	2700
Wheel spacing (mm)	1715
Tire model Before/rear	9.00-16 2/2
Overall dimension (L×W×H) (mm)	4712×2065×2800
Weight unladen (kg)	8300
Engine Model	R4105G22
Norm power (Kw/rpm)	58.8/2400
Max.torque/speed (N.m/rpm)	270/1680

CHENGYANG Brand side forklift truck is a new type of carring scraper. It differs from the counter- balanced one mainly in that the forks are mounted on the side of the body. Besides lifting and tilting, the forks can also traverse to the right side of the truck frame, and retract back alongside the well in the middle section of the truck, long cargoes can be loaded by the forkson/from the truck deck, as well as transported in limites spaces.

As the long cargoes are piled lengthwise along, the truck's platform, the width of the passageway required by the forklifter can be redued remarkably. Thereby, the side forklift truck is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes and other kind of bulky, over length cargoes. It found wide applications in the forestry department, railway stations, oilfields, harbours, warehoses, factories, construction sites, etc.

XIAMEN CHENGYANG forklift factoty, assimilating the advanced product technology of other forklifter manufacturer's in home and abroad, successfully developed the first Chinese-made side forklifter in 1976. Since the appraisal was approved by the Forestry Ministry, the plant hs produced the products with a capacity of several hundred per year.
