CHY-1325 CNC Cantilever Cutting Machine
Product Specification
No. |
Item |
Specification |
1 |
Machine Overall Width |
1800 mm |
2 |
Machine Overall Length |
3000 mm |
3 |
Effective Cutting Width |
1300 mm |
4 |
Effective Cutting Length |
2500 mm |
6 |
Plasma Effective Cutting Thickness |
Stainless Steel: 3 mm |
Mild Steel: 2 mm |
||
7 |
Positioning Speed |
0-12000 mm/min |
8 |
Positioning Accuracy |
±0.2 mm/10m |
9 |
Maximum Cutting Speed |
4000 mm/min |
10 |
Torch vertical Movement |
50 mm |
11 |
Lifting Regulating Accuracy |
±0.5 mm |
12 |
Plasma Torch |
1 Set (P40) |
14 |
Anti-Collision |
1 Set |
15 |
Arc Voltage Height Adjusting |
1 Set |
17 |
Drive Mode |
Dual-Side |
18 |
Driving Motor |
Servo Motor |
19 |
Operation Panel Language |
English |
Main Component List
No. |
Component |
Supplier |
1 |

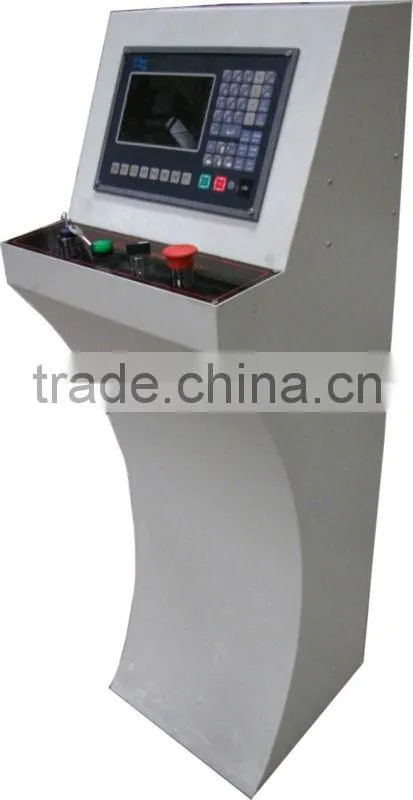

CNC Operation System |
START, U.S.A |
2 |
Nesting Software |
IBE, Germany |
3 |
Drive Motor |
Leadshine |
4 |

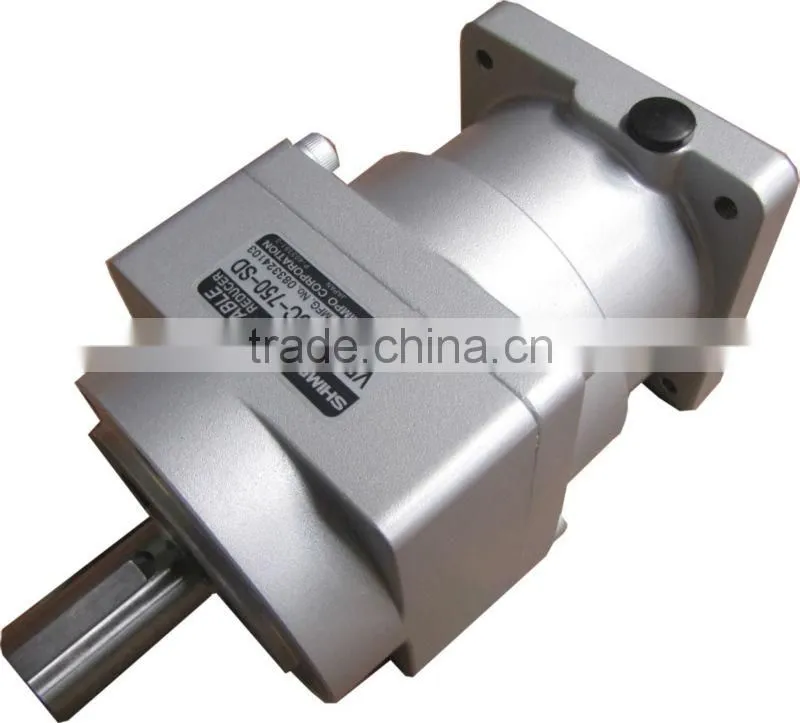

Reducer |
Naifu |
5 |
Cable |
TKD, Germany |
6 |

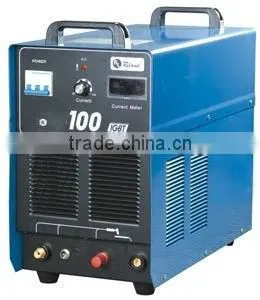

Plasma Power |
China |

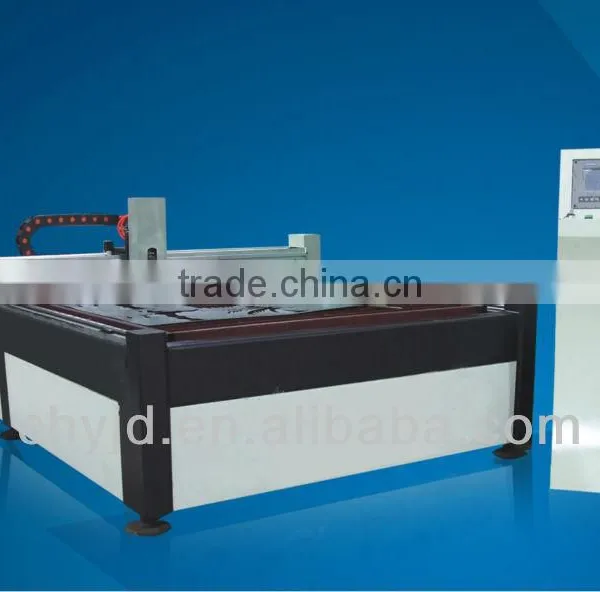

Reference Pictures
