Home > Products > New Products > inverter EXGAIN welding machine gold manufacturer from Wenling Exgain, China
inverter EXGAIN welding machine gold manufacturer from Wenling Exgain, China
- 20000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | EXGAIN |
Model Number: | EG-180/MMA-180 | Pulse Frequency: | 50/60 HZ | Rated Duty Cycle: | 60% |
Dimensions: | 390x135x285MM | Usage: | Welding | Voltage: | 180-230VAC |
Power(W): | 7.9KW | Certification: | CE,EMC,LVD,ROHS | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

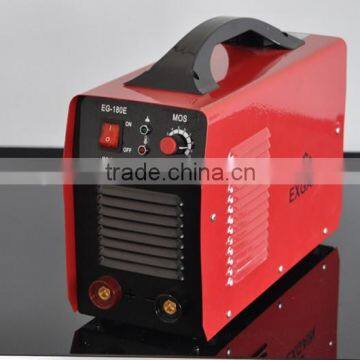

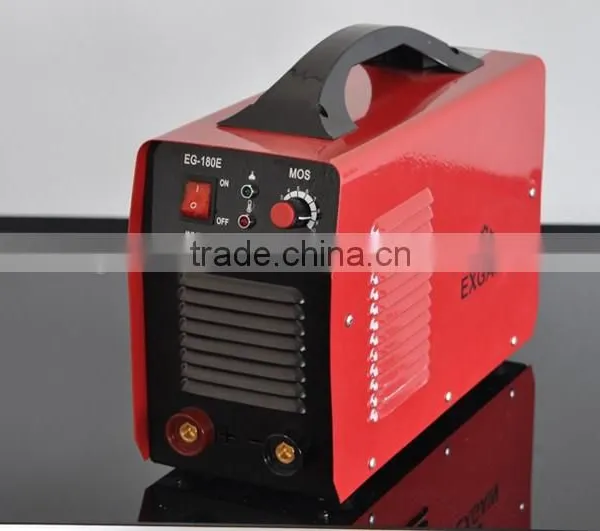

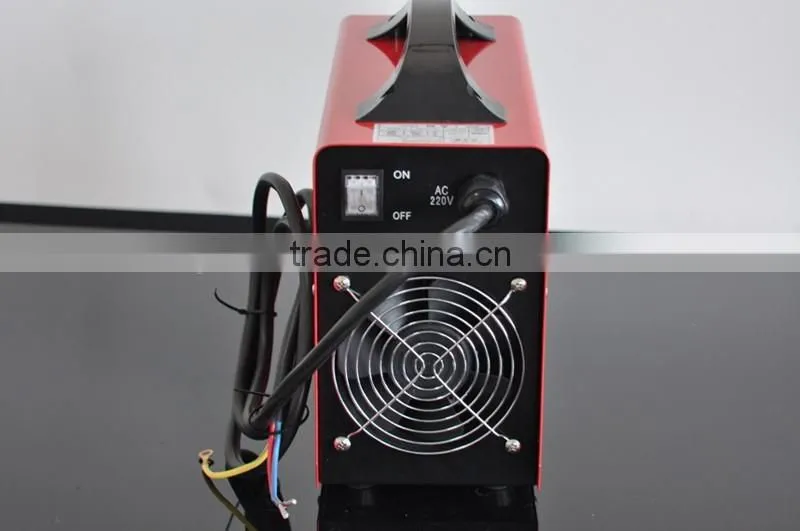

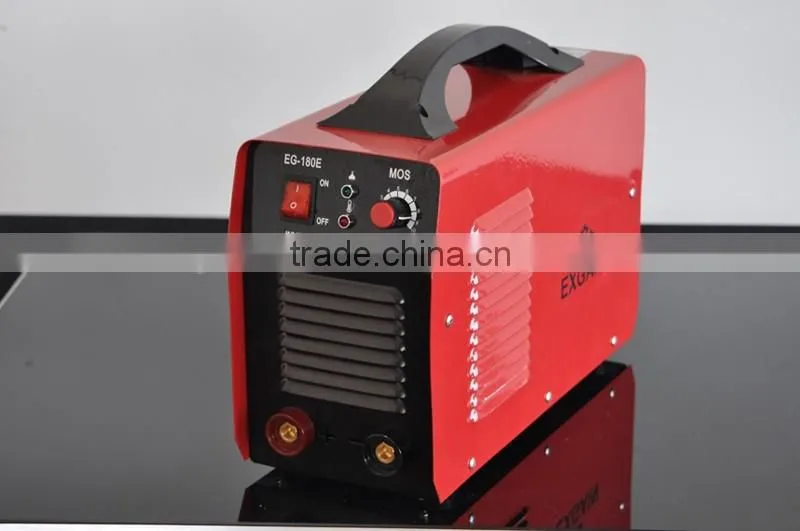

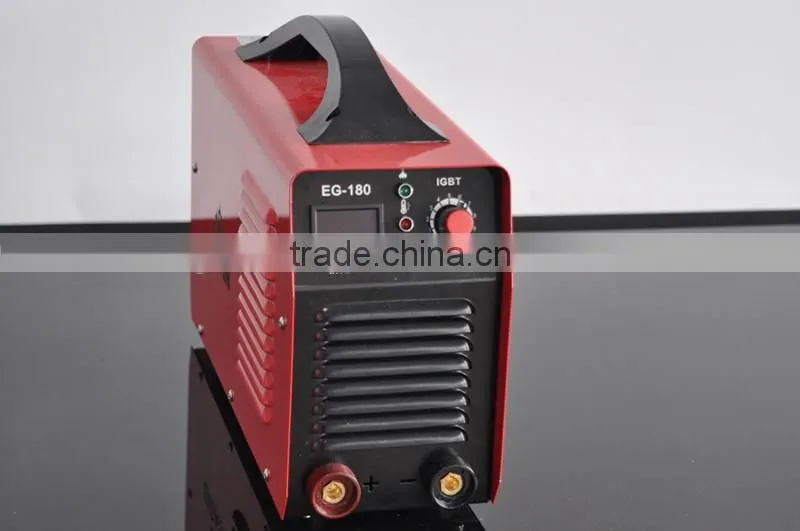

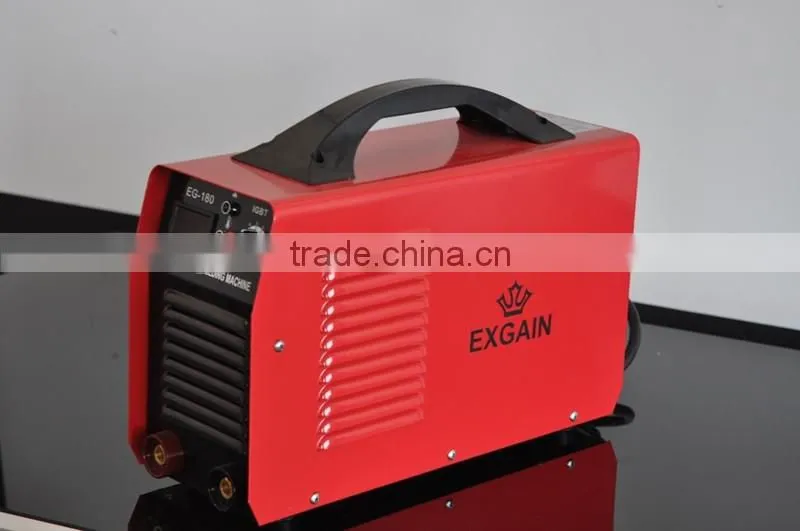

inverter EXGAIN welding machine gold manufacturer from Wenling Exgain, China
--Feature:
1.Large output power:
the max out put of EG-160 can be achieve 160A/26.4V,EG-200 can be achieve 200A/28V.
2.Big welding thrust:
Easier to start welding; Not easy to stick under small welding current, deep welding poor.
3.Arc is strong and the stiffness is good.
4.Using Inner characteristics control mode for responding quickly to changes in arc length so that the arc not easy to break.
5.Using peak current control mode; Power device can work reliably even if the frequent impact of short-circuit.
6.High maximum output voltage; long arc, the ability of anti-voltage fluctuations is strong.
7.PCB surface coated with insulating paint for preventing erosion by humid and corrosive gases.
8.Single knob adjustment for simple and convenient operation.
9.Inverter technology for energy-saving.
Model Specification | EG-120T | EG-140T | EG-160T | EG-140 | EG-160 | EG-180 | EG-200 |
Power Transistor | IGBT | ||||||
Input Voltage | 190-240V | ||||||
Input Frequency | 50/60Hz | ||||||
Rated input capacity | 4.9KVA | 6KVA | 6.8KVA | 6KVA | 6.8KVA | 7.9KVA | 8.8KVA |
Rated input current | 22.3A | 27.2A | 31A | 27.2A | 31A | 36A | 40A |
Output Frequency | 32KHz | 50KHz | 50KHz | 50KHz | 50KHz | ||
NO-load voltage | 60±3V | 65±3V | |||||
Load voltage | 20.8-24.8V | 20.8-25.6V | 20.8-26.4V | 20.8-25.6V | 20.8-26.4V | 20.8-27.2V | 20.8-28V |
Digital Display | × | √ | |||||
Output Current | 20-120A | 20-140A | 20-160A | 20-140A | 20-160A | 20-180A | 20-200A |
Electrode Dia. | ≤3.2 | ≤3.2 | ≤4.0 | ≤3.2 | ≤4.0 | ≤4.0 | ≤5.0 |
Rated duty cycle | 60% | 60% | 45% | 60% | 60% | 60% | 50% |
Power wire len. | 2M | ||||||
Plug | √ | √ | × | ||||
N.W. | 2.8KG | 2.9KG | 3.0KG | 4.8KG | 4.8KG | 7.5KG | 7.5KG |
Size(LxWxH)mm | 230x105x160 | 310x120x205 | 390x135x285 |

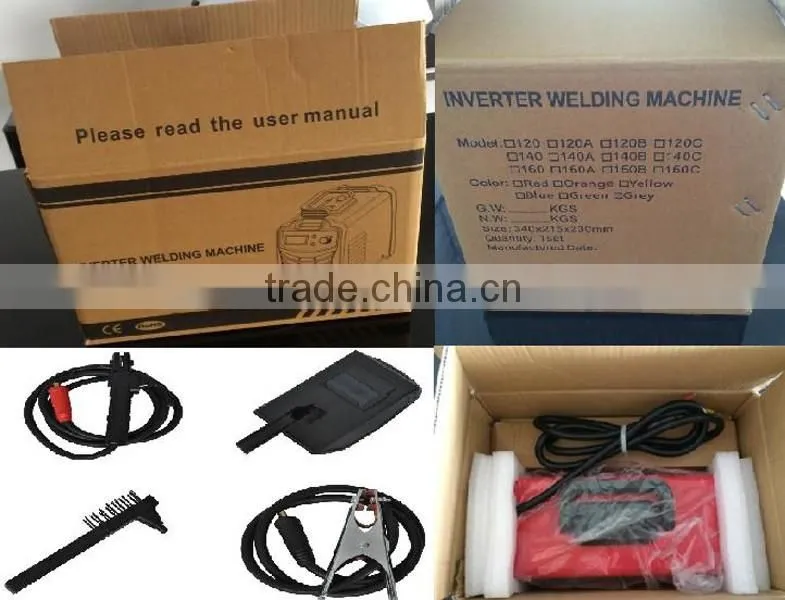

--Packing and what's in the carton:
Standard accessories:
1.8m 200A electrode holder,1.2m 200A earth clamp,brush, mask
--Why choose us?
1.Self-developed technic
2. customization service
3.Prompt delivery
4.Productions tested one by one
5.independent R&D group to support best services

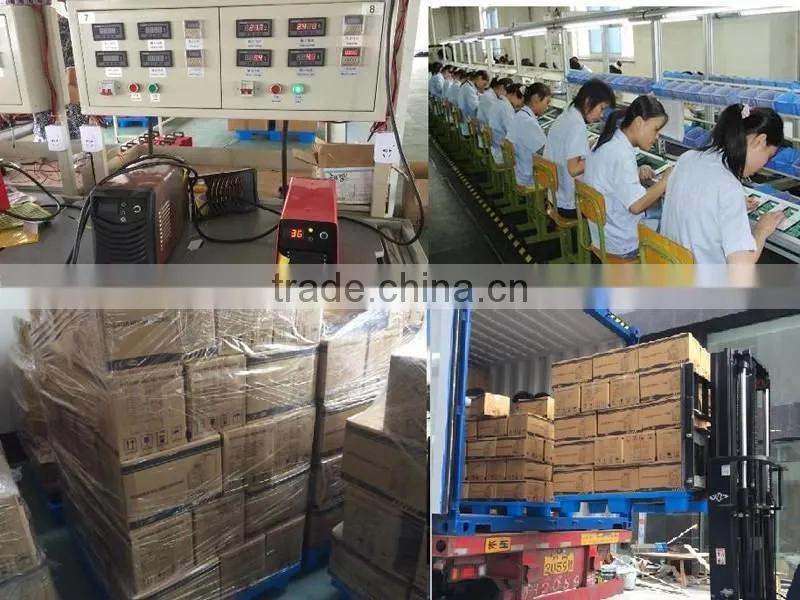

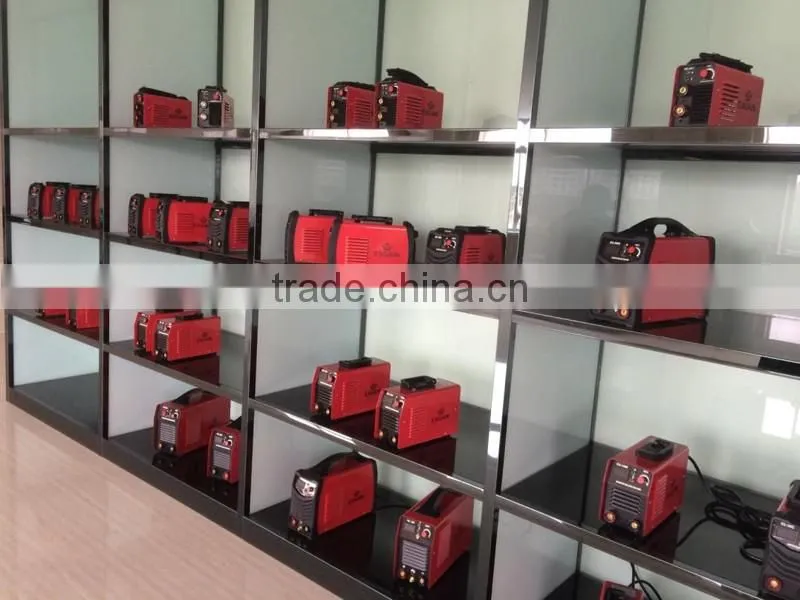

--Factory View:
Pls contact us for more detail.
Contact Us
- Zhejiang Exgain Tech Co., Ltd.
- Contact nameJenny Zhao
- AddressXianfanqiao Industry Zone, Daxi Town, Wenling
