High Quality Portable Inverter Exgain Pvc Welding Machines Made in China

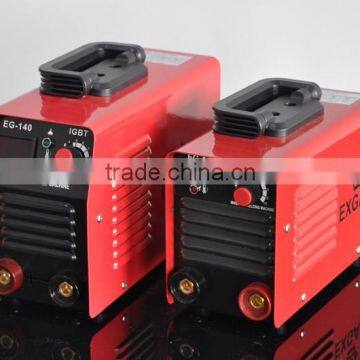

High Quality Portable Inverter Exgain Pvc Welding Machines Made in China photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
EXGAIN
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name EXGAIN
Model Number EG-140
Arc Current 20-140A
Pulse Frequency 50/60 HZ
Rated Duty Cycle 60%
Dimensions 310x120x205MM
Usage Welding
Voltage 190-240VAC
Power(W) 6KW
Certification CE,EMC,LVD.ROHS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

High Quality Portable Inverter exgain pvc welding machines Made in China

 High Quality Portable Inverter exgain pvc welding machines Made in ChinaHigh Quality Portable Inverter exgain pvc welding machines Made in ChinaHigh Quality Portable Inverter exgain pvc welding machines Made in China



--Feature:



1.Large output power:




2.Big welding thrust:



Easier to start welding; Not easy to stick under small welding current, deep welding poor.
3.Arc is strong and the stiffness is good.
4.Using Inner characteristics control mode for responding quickly to changes in arc length so that the arc not easy to break.
5.Using peak current control mode; Power device can work reliably even if the frequent impact of short-circuit.
6.High maximum output voltage; long arc, the ability of anti-voltage fluctuations is strong.
7.PCB surface coated with insulating paint for preventing erosion by humid and corrosive gases.
8.Single knob adjustment for simple and convenient operation.
9.Inverter technology for energy-saving.





--Specification:







               Model
Specification
EG-120TEG-140TEG-160TEG-140EG-140AEG-160EG-160AEG-180EG-180AEG-200EG-200A
Power TransistorIGBTIGBTIGBTIGBTIGBT
Input Voltage190-240V190-240V190-240V190-240V190-240V
Input Frequency50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Rated input capacity4.9KVA6KVA6.8KVA6KVA6.8KVA7.9KVA8.8KVA
Rated input current22.3A27.2A31A27.2A31A36A40A
Output Frequency32KHz50KHz50KHz50KHz50KHz
NO-load voltage60±3V65±3V65±3V65±3V65±3V
Load voltage20.8-25.6V20.8-25.6V20.8-26.4V20.8-25.6V20.8-26.4V20.8-27.2V20.8-28V
Digital Display×××
Output Current20-120A20-140A20-160A20-140A20-160A20-180A20-200A
Electrode Dia.≤3.2mm≤3.2mm≤4.0mm≤3.2mm≤4.0mm≤4.0mm≤5.0mm
Rated duty cycle60%60%45%60%60%45%60%50%50%40%
Power wire len.2M2M2M2M2M
Plug××
N.W.2.8KG3.0KG3.2KG4.8KG4.8KG7.5KG7.5KG
Size(LxWxH)mm230x105x160310x120x205310x120x205390x135x285390x135x285
CertificateCE ROHS
Packing size(LxWxH)mm310x215x220340x215x230340x215x230400x220x310400x220x310
20'187017101710994994
40'39603650365021002100
40'HQ47524015401524002400











--Standard accessories&Packing:



High Quality Portable Inverter exgain pvc welding machines Made in China



accessories:

1.8m 200A electrode holder,1.2m 200A earth clamp,brush, mask





--Why choose us?







1.Self-developed technic
2. customization service
3.Prompt delivery
4.Productions tested one by one
5.independent R&D group to support best services



--Factory View:

High Quality Portable Inverter exgain pvc welding machines Made in ChinaHigh Quality Portable Inverter exgain pvc welding machines Made in China

--Certificates:

High Quality Portable Inverter exgain pvc welding machines Made in China
