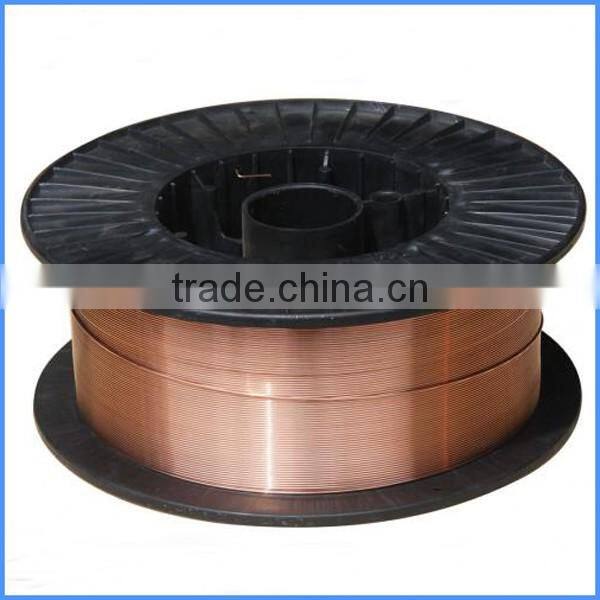

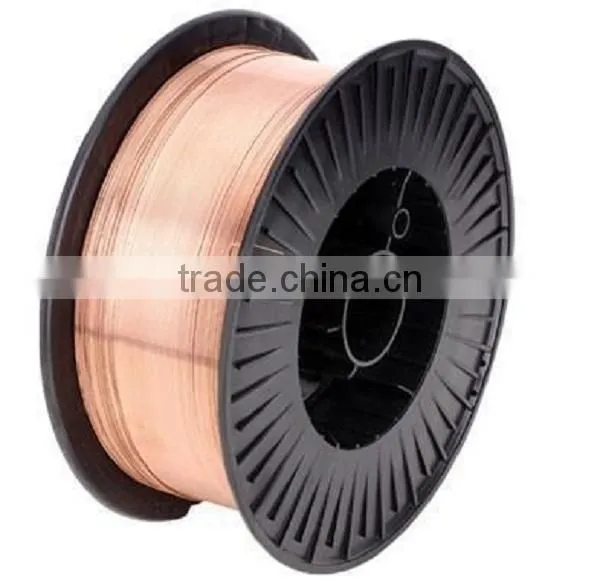

CO2 Mig Welding Wire From Guangzhou
1.Diameter : 0.6mm,0.8mm,0.9mm,1.0mm,1.2mm
2.GB standard: GB ER50-6
3.AWS standard: AWS ER70S-6
4.Surface treatment: copper coated
5.6.Material: Low alloy steel
6.Packing:15kg,20kg precision layer wound/spool.one spool/carton. 63cartons/wooden pallet.
7.Delivery time: 10days for 20ft container after order comfirmation
Application of the mig welding wire Er70s-6
For welding of low carton steel and low alloy steel structure items ,such as ships,vehicles,bridges,engineering machinery,pressure vessel and construction etc.
Advantage for the Er70s-6 welding wire
Smooth steady feeding,fast melting rate,high depositing efficiency,little spatter and beautiful seam, suitable for all-position welding work.
7.Chemical composition of the Er70s-6 welding wire
Item | C | Mn | Si | S | P | Cu | Other |
standard value | 0.06-0.15 | 1.40-71.85 | 0.80-1.15 | ≤0.035 | ≤ 0.025 | ≤ 0.50 | ≤ 0.50 |
sample value | 0.08 | 1.51 | 0.92 | 0.020 | 0.016 | 0.20 | 0.02 |
8.Typical mechanical properties of deposited metal:
nile strength δb (MPa) | Yield point δ0.2(MPa) | Elongation δ5 (%) | AKV Impact value (J) (-20°C) | Shielding gas |
≥ 500 | ≥ 420 | ≥ 22 | ≥ 27 | 100%CO2 |
560 | 500 | 27 | 102 | 100%CO2 |
Production process:
Raw Materials (Steel Rod) → Chemical Analysis → First Drawing Process → Second Drawing Process → Copper Plating Process → Winding Process- Finished products
Factory pictures:
