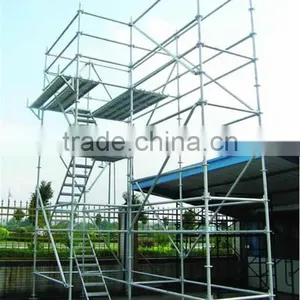

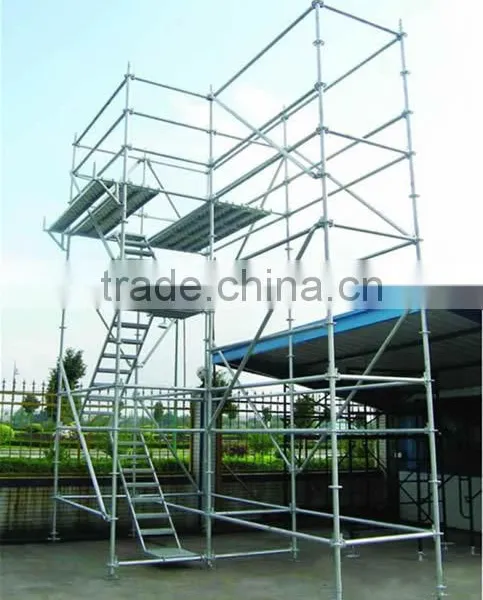

Steel Quick Ringlock System Tubular Scaffolding for Construction

BY STEEL PALLE

Specifications

Tubular Scaffolding
1) Raw materil:Q235&Q345
2)Surface finish:painted .HDG
3)Pipe:48.3*3.2mm/3.8m

Ringlock Scaffolding Systems /    Tubular Scaffolding

  Ringlock Ledger

RINGLOCK STANDARD WITH SPIGOT(Connector)
(48.3mm x 3.2mm, Q345 Material, Hot Dipped Galvanized surface finish)
Description	Weight
Ring-Lock Standard 500mm	2.76kg
Ring-Lock Standard 1000mm	5.18kg
Ring-Lock Standard 1500mm	7.61kg
Ring-Lock Standard 2000mm	10.03kg
Ring-Lock Standard 2500mm	12.45kg
Ring-Lock Standard 3000mm	14.87kg
Ring-Lock Standard 4000mm	19.72kg
RINGLOCK LEDGER
(48.3mm x 3.0mm, Q235, Hot Dipped Galvanized)
Description	Weight
Ring-Lock Ledger 1000mm	4.62kg
Ring-Lock Ledger 1500mm	6.50kg
Ring-Lock Ledger 2000mm	8.38kg
Ring-Lock Ledger 2500mm	10.27kg
Ring-Lock Ledger 3000mm	12.16kg
RINGLOCK DIAGONAL
(48.3mm x 3.2mm, Q235, Hot Dipped Galvanized)
Description	Weight
Ring-Lock Diagonal 1000x2000mm	10.06kg
Ring-Lock Diagonal 1500x2000mm	10.95kg
Ring-Lock Diagonal 2000x2000mm	12.13kg







Standard

Use: Standards are the vertical members of ringlock scaffolding. They provide the

vertical support for scaffolding.



ledger

Use: Ledgers are the horizontal members of Ringlock scaffolding. They provide

horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails



Base collar

Use: The base collar is designed to “base out” the Ringlock scaffolding system sitting on top of the screw jack creating a lower node point.















Feature





1. The multi-function.





2. No any active lock parts, maximum limit to prevent the traditional scaffold activities lock parts caused by unsafe hidden trouble. 3. The products have a high efficiency, the use of more convenient and faster.





4. The bearing capacity is big.





5. Safe and reliable. Strong stability. Each stud allow bearing 3-4 tons. The use of the diagonal member number is greatly less than traditional scaffolding.





6. Good comprehensive benefits. Component series of standardized, easy to transport and management. Late no scattered easily lost artifacts, low loss, less investment.



Production Workshop



 Packing and the Loading Details





About us



We specialized in the filed of the hardware and scaffolding systems for10 years time and we dealing with many kinds of the Scaffolding .like Ringlock.Cuplock.Kwikstage scaffolding .frame systems. Shoring propsystems. hardware like handtools, Auto Tools. Building tools, such as the ratchet wrench.Pickaxe, Firmer chisel,shovel, pickaxe,various hammers,Triangle bricklayer,Scraper and so on. We want to emphasize that our goods get the reputation in the market due to the competitive price with the high quality. please do not hesitate to contact us meanwhile we will offer you the best with the quality you satisfied.
