Home > Products > Frame Scaffolding > 25*1.4mm Fortress Steel Scaffolding Cross Brace for Scaffolding Frame
25*1.4mm Fortress Steel Scaffolding Cross Brace for Scaffolding Frame
- QINGDAO
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | QUEEN | |
| Model Number | 1200 |
by steel pallet
Product Description
Specifications
Steel Scaffolding Cross Brace1)Material:Q235,Q195
2)Size:1219x1700x1800mm
3)pipe:42*2.2mm/48*2.5mm
Frame Scaffolding/ Steel Scaffolding Cross Brace
Shoring frames are used to support the imposed loads. Cross braces are used to connect the frames together, forming a rigid tower to provide maximum stability and strength in virtually any shoring application.
Scaffolding Frame Cross Brace
1 Width:1219mm Height:610mm Length:1363mm Diameter: 20.6*1.6mm
2 Width:1219mm Height:1219mm Length:1724mm Diameter: 20.6*1.6mm
3 Width:1829mm Height:610mm Length:1928mm Diameter: 20.6*1.6mm
4 Width:1829mm Height:1219mm Length:2198mm Diameter: 20.6*1.6mm
5 Width:1219mm Height:914mm Length:1524mm Diameter: 20.6*1.6mm
6 Width:1829mm Height:1219mm Length:2198mm Diameter: 25*1.5mm
Diameter :20mm/25mm
Thickness:1.1mm/1.2mm/1.5mm/1.8mm/2.0mm/2.2mm/2.3mm
surface treatment:painting ,pre-galvanized , galvanized,HDG, painting with galvanized end
Specifications of the Rollding Scaffolding
STD/ Ledger(P.G.)mm | Size (mm) | KG | STD/ Ledger(H.D.G.)mm | Size (mm) | kg |
Φ42*2.2/Φ42*2.0 | 1930*1219 | 15.05 | Φ42*2.2/Φ42*2 | 1930*1219 | 15.05 |
Φ42*2.0/Φ42*2.0 | 1930*1219 | 14.33 | Φ42*2/Φ42*2 | 1930*1219 | 14.33 |
Φ42*2.1/Φ42*2 | 1930*1219 | 14.43 | Φ42*2.1/Φ42*2 | 1930*1219 | 14.43 |
Φ42*2.2/Φ42*2 | 1700*1219 | 13.51 | Φ42*2.2/Φ42*2 | 1700*1219 | 13.51 |
Φ42*2/Φ42*2 | 1700*1219 | 12.88 | Φ42*2/Φ42*2 | 1700*1219 | 12.88 |
Φ42*2.1/Φ42*2 | 1700*1219 | 13.20 | Φ42*2.1/Φ42*2 | 1700*1219 | 13.20 |
Φ42*2.2/Φ42*2 | 1524*1219 | 12.21 | Φ42*2.2/Φ42*2 | 1524*1219 | 12.21 |
Φ42*2/Φ42*2 | 1524*1219 | 11.64 | Φ42*2/Φ42*2 | 1524*1219 | 11.64 |
Φ42*2.1/Φ42*2 | 1524*1219 | 12.00 | Φ42*2.1/Φ42*2 | 1524*1219 | 12.00 |
Φ42*2.2/Φ42*2 | 914*1219 | 9.56 | Φ42*2.2/Φ42*2 | 914*1219 | 9.56 |
Φ42*2.2/Φ42*2 | 1930**914 | 14.19 | Φ42*2.2/Φ42*2 | 1930*914 | 14.19 |
Φ42*2/Φ42*2 | 1930**914 | 13.47 | Φ42*2/Φ42*2 | 1930*914 | 13.47 |
Φ42*2.2/Φ42*2 | 1700*914 | 12.65 | Φ42*2.2/Φ42*2 | 1700*914 | 12.65 |
Φ42*2/Φ42*2 | 1700*914 | 12.02 | Φ42*2/Φ42*2 | 1700*914 | 12.02 |
Φ42*2.2/Φ42*2 | 1524*914 | 11.60 | Φ42*2.2/Φ42*2 | 1524*914 | 11.60 |
Φ42*2/Φ42*2 | 1524*914 | 11.03 | Φ42*2/Φ42*2 | 1524*914 | 11.03 |
Products Showing

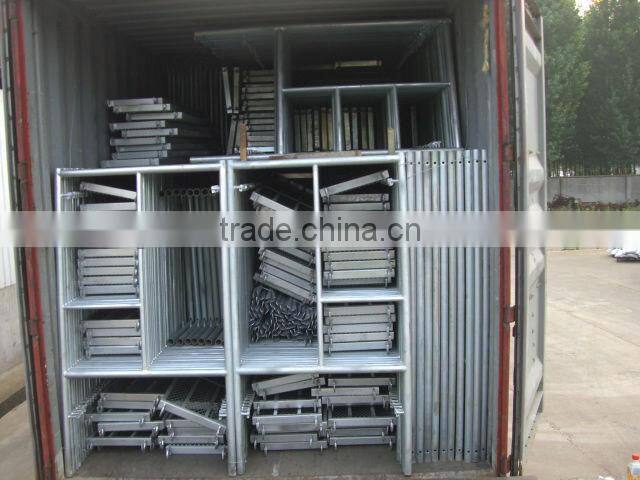

The Packing of the Galvanized scaffolding frame
The Accessories of the Galvanized scaffolding frame
Application Galvanized scaffolding frame
1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.
2. Apply to inside and outside scaffolding fence.
3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.
WHY Choose US:
1. Scaffolding :We are professional manufacturer for more than 10 experiences.
2. World Class Scaffolding:We provide our Custmers with all typ os Scaffoling with workd class quality
3. Quick Delivery:The Company provide Just-in-time delivery
4. Cost Saving:We provide Long-life ,High Resistact nd High reliablity products with excellent quality .resulting in increased cost saving
5:Experence: We have many years of export experiences, our friendly and professional sales team and Strong Enigeering Team can offer favourable services and solution.
6. Attending customers promptly :we believe hat if customers are safisgied with our products and service then it will provide our worth well.Customer are always give quick support
The Products we are Supplying
Company Profile
Since 2000, we has been specialized in manufacturing scaffoldings, kwik stage/ringlock/cuplock/frame scaffoldings, steel planks, couplers, accessories & formwork parts, and hardware, ratchet wrench tools, garden tools, sockets and accessories. We expand our products to hand tools, automotive tools, etc. We have more than 10 years of production and export experience. Each tool produced by Queen is in the best quality, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. We have a highly experienced producing team, which maintains top level of every stage of the producing progress. Each team of workers is led by supervisor who monitors day to day works. Automated welding and robot systems are widely used. Today, we have customers in over 35 countries around the world. Our products are engineered for safety, strength and flexibility to meet international standards within this industry. It is important for structural engineers, scaffolding factories and formwork specialists. In terms of working processes, we have expertise in iron casting, steel forging and thread rolling. We have a complete quality control system, which guarantees the high quality of our products and makes sure all progress is made to schedule. With all our technical knowledge and capacity, if you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
