Specifications
Galvanized Cross brace1)Material:Q235,Q195
2)Size:1219x1700x1800mm
3)pipe:42*2.2mm/48*2.5mm
4)Aviliable by cu

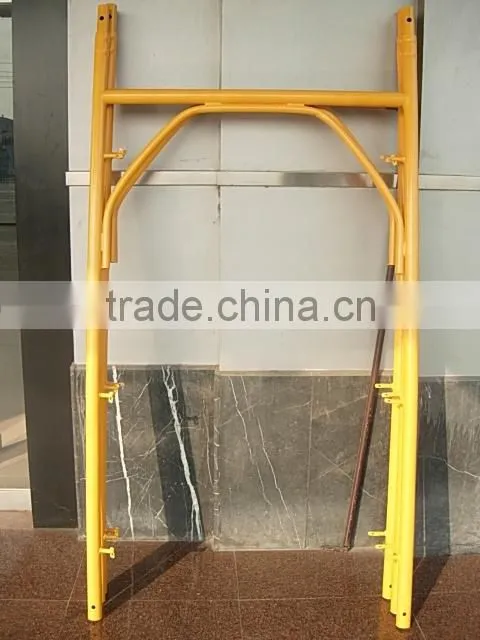

Frame Scaffolding/ Galvanized scaffolding frame cross brace
Shoring frames are used to support the imposed loads. Cross braces are used to connect the frames together, forming a rigid tower to provide maximum stability and strength in virtually any shoring application.
Specifications of the Galvanized scaffolding frame
STD/ Ledger(P.G.)mm | Size (mm) | KG | STD/ Ledger(H.D.G.)mm | Size (mm) | kg |
Φ42*2.2/Φ42*2.0 | 1930*1219 | 15.05 | Φ42*2.2/Φ42*2 | 1930*1219 | 15.05 |
Φ42*2.0/Φ42*2.0 | 1930*1219 | 14.33 | Φ42*2/Φ42*2 | 1930*1219 | 14.33 |
Φ42*2.1/Φ42*2 | 1930*1219 | 14.43 | Φ42*2.1/Φ42*2 | 1930*1219 | 14.43 |
Φ42*2.2/Φ42*2 | 1700*1219 | 13.51 | Φ42*2.2/Φ42*2 | 1700*1219 | 13.51 |
Φ42*2/Φ42*2 | 1700*1219 | 12.88 | Φ42*2/Φ42*2 | 1700*1219 | 12.88 |
Φ42*2.1/Φ42*2 | 1700*1219 | 13.20 | Φ42*2.1/Φ42*2 | 1700*1219 | 13.20 |
Φ42*2.2/Φ42*2 | 1524*1219 | 12.21 | Φ42*2.2/Φ42*2 | 1524*1219 | 12.21 |
Φ42*2/Φ42*2 | 1524*1219 | 11.64 | Φ42*2/Φ42*2 | 1524*1219 | 11.64 |
Φ42*2.1/Φ42*2 | 1524*1219 | 12.00 | Φ42*2.1/Φ42*2 | 1524*1219 | 12.00 |
Φ42*2.2/Φ42*2 | 914*1219 | 9.56 | Φ42*2.2/Φ42*2 | 914*1219 | 9.56 |
Φ42*2.2/Φ42*2 | 1930**914 | 14.19 | Φ42*2.2/Φ42*2 | 1930*914 | 14.19 |
Φ42*2/Φ42*2 | 1930**914 | 13.47 | Φ42*2/Φ42*2 | 1930*914 | 13.47 |
Φ42*2.2/Φ42*2 | 1700*914 | 12.65 | Φ42*2.2/Φ42*2 | 1700*914 | 12.65 |
Φ42*2/Φ42*2 | 1700*914 | 12.02 | Φ42*2/Φ42*2 | 1700*914 | 12.02 |
Φ42*2.2/Φ42*2 | 1524*914 | 11.60 | Φ42*2.2/Φ42*2 | 1524*914 | 11.60 |
Φ42*2/Φ42*2 | 1524*914 | 11.03 | Φ42*2/Φ42*2 | 1524*914 | 11.03 |
Products Showing
The Packing of the Galvanized scaffolding frame
The Accessories of the Galvanized scaffolding frame
Application Galvanized scaffolding frame
1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.
2. Apply to inside and outside scaffolding fence.
3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.
WHY Choose US:
1. Scaffolding :We are professional manufacturer for more than 10 experiences.
2. World Class Scaffolding:We provide our Custmers with all typ os Scaffoling with workd class quality
3. Quick Delivery:The Company provide Just-in-time delivery
4. Cost Saving:We provide Long-life ,High Resistact nd High reliablity products with excellent quality .resulting in increased cost saving
5:Experence: We have many years of export experiences, our friendly and professional sales team and Strong Enigeering Team can offer favourable services and solution.
6. Attending customers promptly :we believe hat if customers are safisgied with our products and service then it will provide our worth well.Customer are always give quick support
