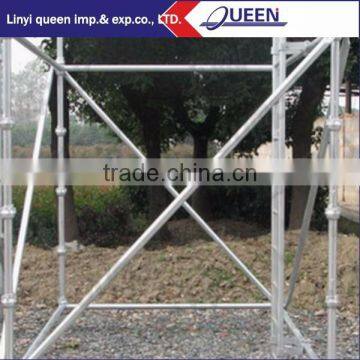

Building Construction Material Cuplock Scaffolding System
US$ 2.5 - 19.5
MOQ: 1000 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
QUEEN
Model Number:
1500
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shandong Metal Scaffold Tubular Scaffold Type, High Rise Safety Q235 Metal Cuplock Scaffold System for ConstructionUS$ 2.5 - 19.5MOQ: 1000 Sets -
HDG Steel Scaffolding SystemUS$ 2.5 - 19.5MOQ: 1000 Pieces
-
Fast Erected Painted Metal Scaffolding SystemUS$ 2.5 - 19.5MOQ: 1000 Pieces
-
Cuplock System ScaffoldUS$ 2.5 - 19.5MOQ: 1000 Pieces
-
Cuplock Scaffolding / Cuplock Scaffolding Parts / Cuplock Scaffolding StandardUS$ 2.5 - 19.5MOQ: 1000 Pieces
Place of Origin
Shandong, China
Brand Name
QUEEN
Model Number
1500
Specifications
Cuplock system1)Raw material:Q235/Q345
2)Size of pipe:48.3*3.25mm
3)Surface finish:Powder coated/galvanized/HDG
Building Construction Material Cuplock Scaffolding System
Feature

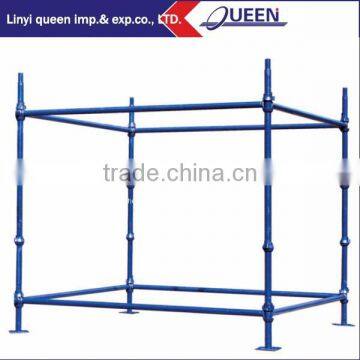

1.One set of Cuplock Scaffolding usually include 4 standards and 8 ledgers.
2.Cuplock Scaffolding is easy and quick to install and strip.which can save your time.
3. Cuplock Scaffolding provides high loading capacity while its structure is quite flexible.
4.All the Cuplock Scaffolding parts are dealt with CO2 arc welding, the surface is galvanized,pianting or HDG. As a result, it is more durable and has a longer working life
5.There is small lock pin on Cuplock verticals to restrict the cups from moving out. so you don't worry to lost ancillaries
Specification
| Item Name | Cuplock Scaffolding | |
| Brand Name | Queen | |
| Raw Material | Q235 /Q345steel Grade | |
| Components | Standard.Ledger .Diagonal brace. Top/Bottop Cup/ Ledge Blade | |
| Surface finish | Electric Galvanized/HDG/Powder coated | |
| Size | Pipe size:48.3mm | |
| Thickness:3.25mm | ||
| Usage | Widely used in Bridge .Tunnel.Peterifaction.Shipbuilding .railway,Airport. Dock Industry and Civil Building | |
| Packing | By Steel pallet or bulk | |
| (48.3mm x 3.25mm, Q235, HDG) | ||
| Cuplock scaffolding Description | ||
| Standard | 48.3*3.25*500mm | 3.5kg |
| 48.3*3.25*1000mm | 5.7kg | |
| 48.3*3.25*1300mm | 8.0kg | |
| 48.3*3.25*1500mm | 8.75kg | |
| 48.3*3.25*1800mm | 10.6kg | |
| 48.3*3.25*2000mm | 11.4kg | |
| 48.3*3.25*2500mm | 14.0kg | |
| 48.3*3.25*3000mm | 16.70kg | |
| 48.3*3.25*4000mm | 20.36kg | |
| (48.3mm x 3.25mm, Q235, HDG) | ||
| Cuplock scaffolding Description | ||
| Ledger | 48.3*3.25*650mm | 2.8kg |
| 48.3*3.25*914mm | 3.6kg | |
| 48.3*3.25*1065mm | 4.10kg | |
| 48.3*3.25*1150mm | 4.7kg | |
| 48.3*3.25*1570mm | 5.76kg | |
| 48.3*3.25*1829mm | 6.62kg | |
| 48.3*3.25*2130mm | 7.95kg | |
| 48.3*3.25*2438mm | 9.05kg | |
| 48.3*3.25*3050mm | 11.30kg | |
| (48.3mm x 3.25mm, Q235, HDG) | ||
| Cuplock scaffolding Description | ||
| Diagonal brace | 48.3*3.25*915mm | 3.4kg |
| 48.3*3.25*1150mm | 4.04kg | |
| 48.3*3.25*1572mm | 5.34kg | |
| 48.3*3.25*1829mm | 6.13kg | |
| 48.3*3.25*2130mm | 7.06kg | |
| 48.3*3.25*2438mm | 8.01kg | |
| 48.3*3.25*3050mm | 9.90kg | |
