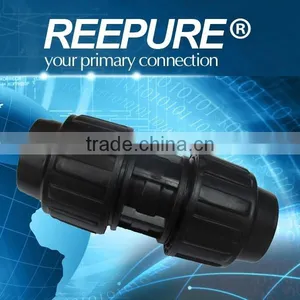

Hdpe pipe fitting
The Hdpe pipe fitting for protective heavy-duty HDPE ducts are used in outside plant networks; normally in the feeder and distribution part of the fibe to the home networks. Our HDPE protective ducts are used to install microducts for blowing purposed; the HDPE protective duct can be installed as direct-buried without any additional mechanical protection. The coupling meet the same criteria as the ducting specifications.
Products specification:
Main Material |
PP |
Product Color |
Blue, black or customized |
Working Pressure |
PN10-16 |
Standard |
BSPT |
| Item | Diameter(mm) |
| 7201020 | 20*20 |
| 7201025 | 25*25 |
| 7201032 | 32*32 |
| 7201040 | 40*40 |
| 7201050 | 50*50 |
| 7201063 | 63*63 |
| 7201075 | 75*75 |
| 7201090 | 90*90 |
| 7201110 | 110*110 |
Material List:
Part |
Material |
Color |
Body |
Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. |
black |
Nut |
Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) |
blue,gray or customized |
Clinching ring |
Polyacetal resin(POM)with high mechanical resistance white and hardness |
white |
Blocking bush |
Polypropylene |
black |
O Ring gasket |
Special elastomeric acrylonitrile rubber(NBR) for alimentary use |
black |
Reinforcing ring |
AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1/2”to 4” |
silver |
Product Feature:
1) light weight, convenient handling and corrosion-resistant
2) chemical stability , fluid resistance
3) anti-aging, long life, non-toxic
4) Smooth inner wall ,reducing pressure loss and increasing flow speed
5) Low noise ,reduced by 40% compared to galvanized steel pipes
6) Easy and fast installation, making cost minimized
