Micro-duct End Stop Connector
- Shanghai Ningbo etc.
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Material | Plastic | Technics | Casting | |
| Type | Cap | Place of Origin | Zhejiang, China | |
| Model Number | Micro-duct end stop connector MSCM-16 | Brand Name | Reepure | |
| Shape | Equal | Head Code | Square |
Product Description

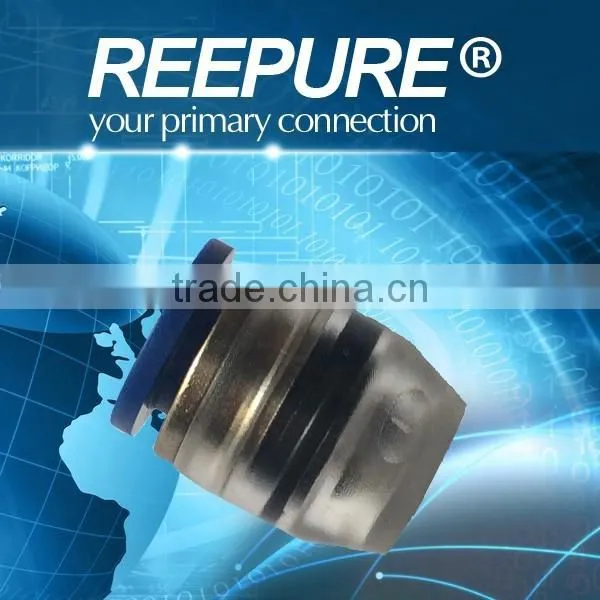

Micro-duct end stop connector
System Benefits
l Installation time reduced.
l Locking clips available in order to prevent microducts accidental disconnection.
l Transparent body allows inspection of correct installation of the cable.
l Anti shock cover available in order to prevent damages. It’s special design allow inspection of correct installation of the cable also when installed. Locking clip function included.
Technical Specifications of Micro-duct end stop connector
Fittings Accessories:
Body: Transparent PC Locking clip: POM
Cartridge: Nickel plated zinc or brass Anti shock cover: PP
Collect: Black POM
Seals: NBR
Lock claws: Stainless steel
Performance of Micro-duct end stop connector
Temperature:
Working temperature: -15°C ~ +45°C
Pressure:
Working pressure: 15 bar
Burst pressure: >45 bar
Specification of Micro-duct end stop connector :
Reepure code | Description |
MSCM-7 | 7mm end connector with Zinc-end |
MSCM-8 | 8mm end connector with Zinc-end |
MSCM-10 | 10mm end connector with Zinc-end |
MSCM-12 | 12mm end connector with Zinc-end |
MSCM-14 | 14mm end connector with Zinc-end |
MSCM-16 | 16mm end connector with Zinc-end |
1. Can I get some samples?
Yes, Sample order is available for quality test and market test .But you have to pay the postage. And we can return to you when you place formal order.
2. What’s delivery time?
It usually takes about 3-5 working days for small order and 10 days for big order when receiving your purchasing order.
3. What’s your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What’s your warranty terms?
We offer 12 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be quickly produced according to your order .
6. Can I mix different power in one container ?
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping .
8. I would like to know if you have a partner for export?
Yes .Reepure have the right to export and can sell product all over the world .
9. How can I trust you ?
The core of Reepure is honesty and loyalty. our company has been audited and approved ISO9001,Rohs certification. Assessment report will could be sent to you by e-mail. Now we have clients all around the world .
