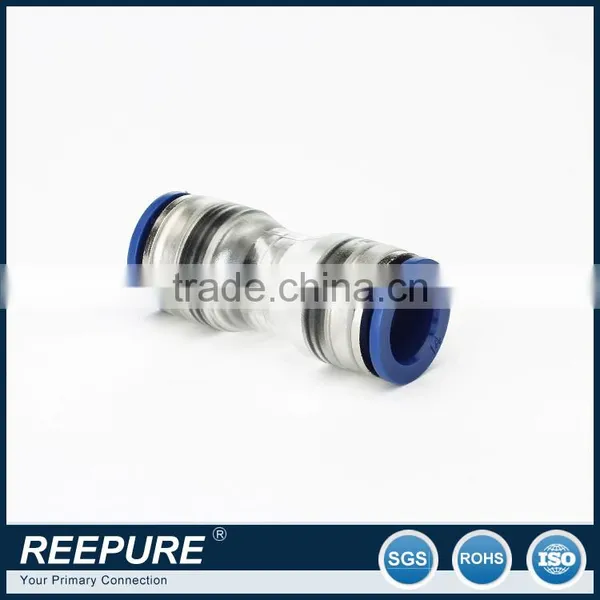

Help CenterAir-blowing Push-fit Straight Connector
Related Products
Push-fit Connector
System Benefits
l Installation time reduced.
l Locking clips available in order to prevent microducts accidental disconnection.
l Transparent body allows inspection of correct installation of the cable.
l Anti shock cover available in order to prevent damages. It’s special design allow inspection of correct installation of the cable also when installed. Locking clip function included.
Push-fit Connector's Technical Specifications
Fittings Accessories:
Body: Transparent PC Locking clip: POM
Cartridge: Nickel plated zinc or brass Anti shock cover: PP
Collect: Black or Blue POM
Seals: NBR
Lock claws: Stainless steel
Push-fit Connector's Performance
Temperature:
Working temperature: -15°C ~ +45°C
Pressure:
Working pressure: 15 bar
Burst pressure: >45 bar
Push-fit Connector Specification:
Reepure code |
Description |
MSCM-7/3.5 |
7mm straight connector, bore 3.5mm, with Zinc-end |
MSCM-8/3.5 |
8mm straight connector, bore 3.5mm, with Zinc-end |
MSCM-10/6 |
10mm straight connector, bore 6mm, with Zinc-end |
MSCM-12/8 |
12mm straight connector, bore 8mm, with Zinc-end |
MSCM-12/10 |
12mm straight connector, bore 10mm, with Zinc-end |
MSCM-14/10 |
14mm straight connector, bore 10mm, with Zinc-end |
MSCM-14/12 |
14mm straight connector, bore 12mm, with Zinc-end |
MSCM-14/13 |
16mm straight connector, bore 13mm, with Zinc-end |
MSCM-16/12 |
16mm straight connector, bore 12mm, with Zinc-end |
