Biological Microscopes

Biological Microscopes thumbnail-1
Biological Microscopes photo-1
US$ 90 - 1,000 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HG
Model Number:
NK-101
Contact Supplier Request Quote Chat Now
KBD Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HG
Model Number NK-101
Theory Biological Microscope
Drawtube Other

Specifications

WE CAN SUPPLY HIGH ACCURACY MICROSCOPES

Information

1.45° inclined and 360° rtational with the reasonable system for easily viewing.
2.Eyepiece WF10x
3.Zoom Objective 5x - 30x
4.Working distance 8mm
5.Illumination power:220V/15W or 110V/15W
6.Suitable for medical research,Geological Analysis, Educational experiments & Electronic industry fields etc.

Specifications

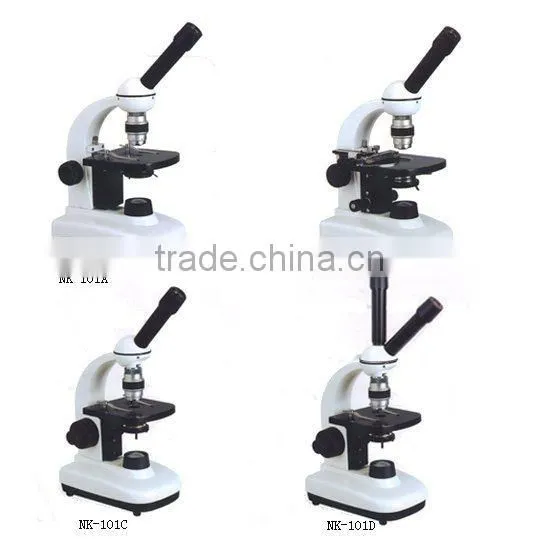

Model
NK-101A
NK-101B
NK-101C
NK-101D
Viewing Head
Monocular(45°),Rotatable(360°)
*
*
*
*
Eyepiece
WF10x
*
*
*
*
Objective
Zoom objective 5x-30x
*
*
*
*
Stage
Plain stage with slide clips ,stage size 125x120mm
*
*
*
With attachable mechanical stage,adjustable arrang 60x30mm
*
Focusing
Coarse adjustment
*
Separate coarse & fine adjustment
*
Coaxial coarse and fine adjustment ,range 13mm,Division of fine focus adjustment 0.002mm
*
*
Condenser
Single lens withe iris diaphragm
*
Abbe condenser NA1.25 with iris diaphragm & filter holder,Spiral adjustment for condenser
*
*
*
Illumination
Fluorescent lamp 7W,220V or 110V
*
*
Halogen lamp 6V/15W
*
*
Optional Accessories
Eyepiece P5X, P15X
*
*
*
*
Demonstration Head
*
*
*
*
Halogen Lamp 220V or 110V-6V/15w
*
*
*
*
