Specifications
WE CAN SUPPLY HIGH ACCURACY MICROSCOPES
Information
1.Sharp stereo erect image over a wide field of view.
2.45º inclined and 360º rotational binocular head with locked-in eyepiece.The left ocular-tube with diopter adjustment ±5dp,The interpupillary distance is between 55-75mm
3.Zoom objective 1x-4x

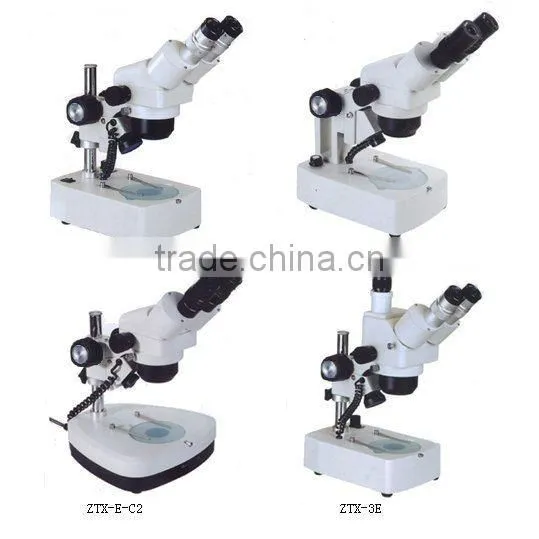

4.ZTX-E series supplied with pillar style stand, ZTX-E-W series supplied with arm curved style stand.ZTX-3E series trinocular head.
5.Electric apparatus has CE approval
6.Power supply 110V/60Hz or 220V/50Hz
7.Each set packed in styorfoam and in an inner box.Three sets in one carton
8.A wide range of optional accessories.
Optional accessories:
1.Eyepiece WH5x(Φ22mm),WF10x(Φ23mm)WF15x(Φ13mm),WF20x(Φ10mm)
2.Auxiliary objective 0.5x,0.75x,1.5x,2x
3.Figure eyepiece:VD-TV,VD-PC
4.Darkfield stage,Φ95mm
5.White/black working plate,Φ95mm
6.Fluorescent bulb 5W
7.Halogen bulb 12V/10W/LED
8.Ring fluorescent lighting 8W & 10W
9.Wooden cabinet with lock and key /Aluminium case
Optical data
Eyepiece |
Standard Objective |
Auxiliary Objective |
|||||||||
0.5X |
0.75X |
1.5X |
2.0X |
||||||||
Objective |
Field of View |
Working Distance |
Field of View |
Working Distance |
Field of View |
Working Distance |
Field of View |
Working Distance |
Field of View |
Working Distance |
|
5X |
1-4X |
20-5 |
85 |
40-11 |
172 |
25-6.5 |
95 |
13-3.5 |
42 |
10-2.5 |
28 |
10X |
1-4X |
23-5.5 |
85 |
52-12 |
172 |
30-7 |
95 |
15-4.8 |
42 |
11-5.3 |
28 |
15X |
1-4X |
15.5-4 |
85 |
36-8.5 |
172 |
21-5 |
95 |
10.5-2.5 |
42 |
8-2 |
28 |
20X |
1-4X |
10.5-3 |
85 |
25-5.8 |
172 |
14-3.5 |
95 |
7-1.8 |
42 |
5.5-1.5 |
28 |
